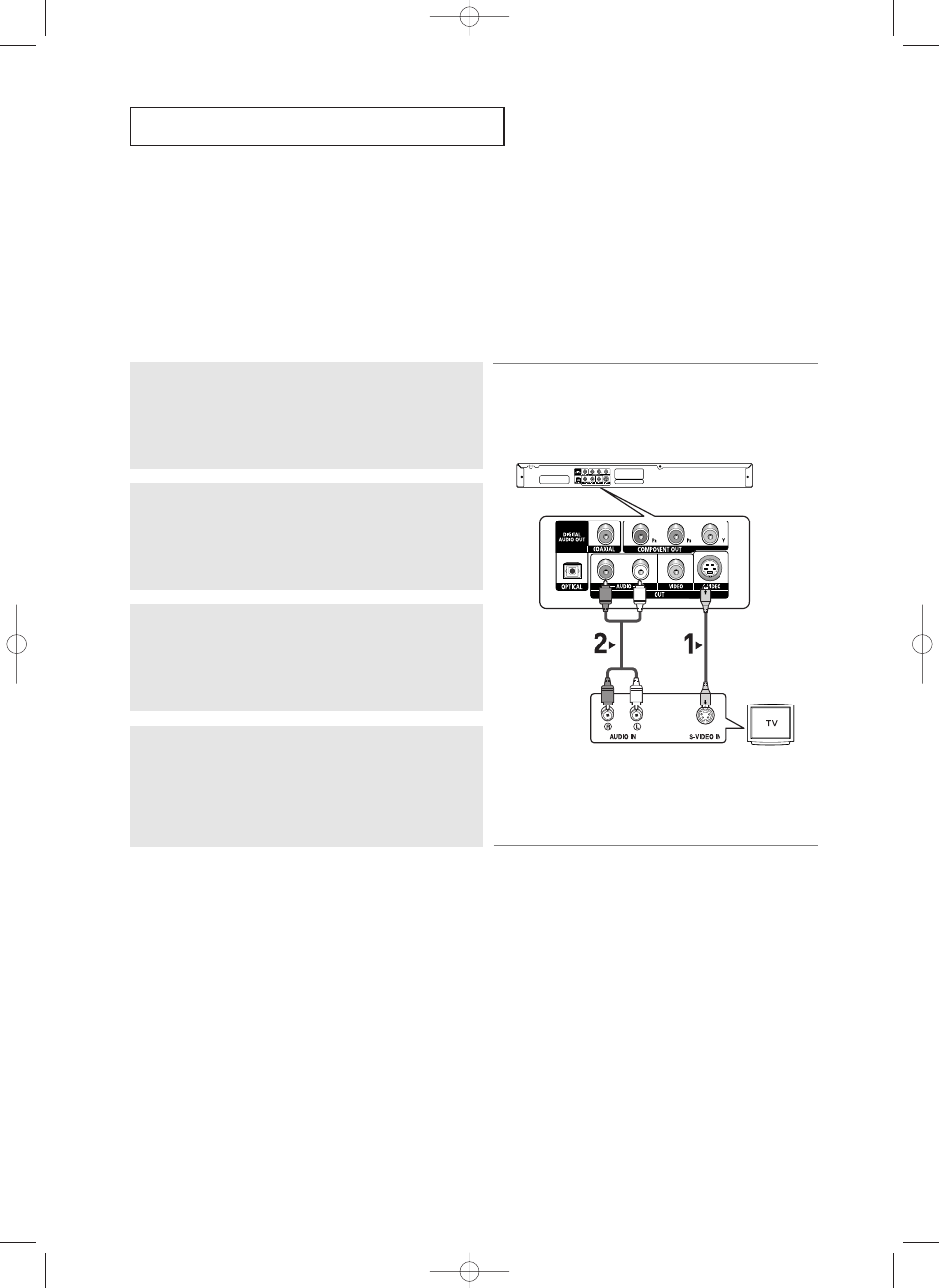

Connection to a TV (S-Video)
- Connecting to your TV using an S-Video cable.
- You will enjoy high quality images. S-Video separates the picture element into black and white(Y)
and color(C) signals to present clearer images than regular video input mode. (Audio signals are
delivered through the audio output.)
Note
- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 15 to 16)
- The number and position of terminals may vary depending on the TV set.
Please refer to the user's manual of your TV.
1
Using an S-Video cable (not included), connect the
S-VIDEO
OUT
terminal on the rear of the DVD player to the
S-VIDEO IN
terminal of your TV.
2
Using the audio cables, connect the
AUDIO (red and white)
OUT
terminals on the rear of the DVD player to the
AUDIO (red
and white) IN
terminals of your TV.
Turn on the DVD player and TV.
3
Press the input selector on your TV remote control until the S-
Video signal from the DVD player appears on your TV screen.
4
Set the Video Output to
COMPOSITE/S-VIDEO
in the Display
Setup menu. (See pages 53 to 54)
RED
WHITE
RED
WHITE
Audio Cable
S-Video Cable
(not included)
