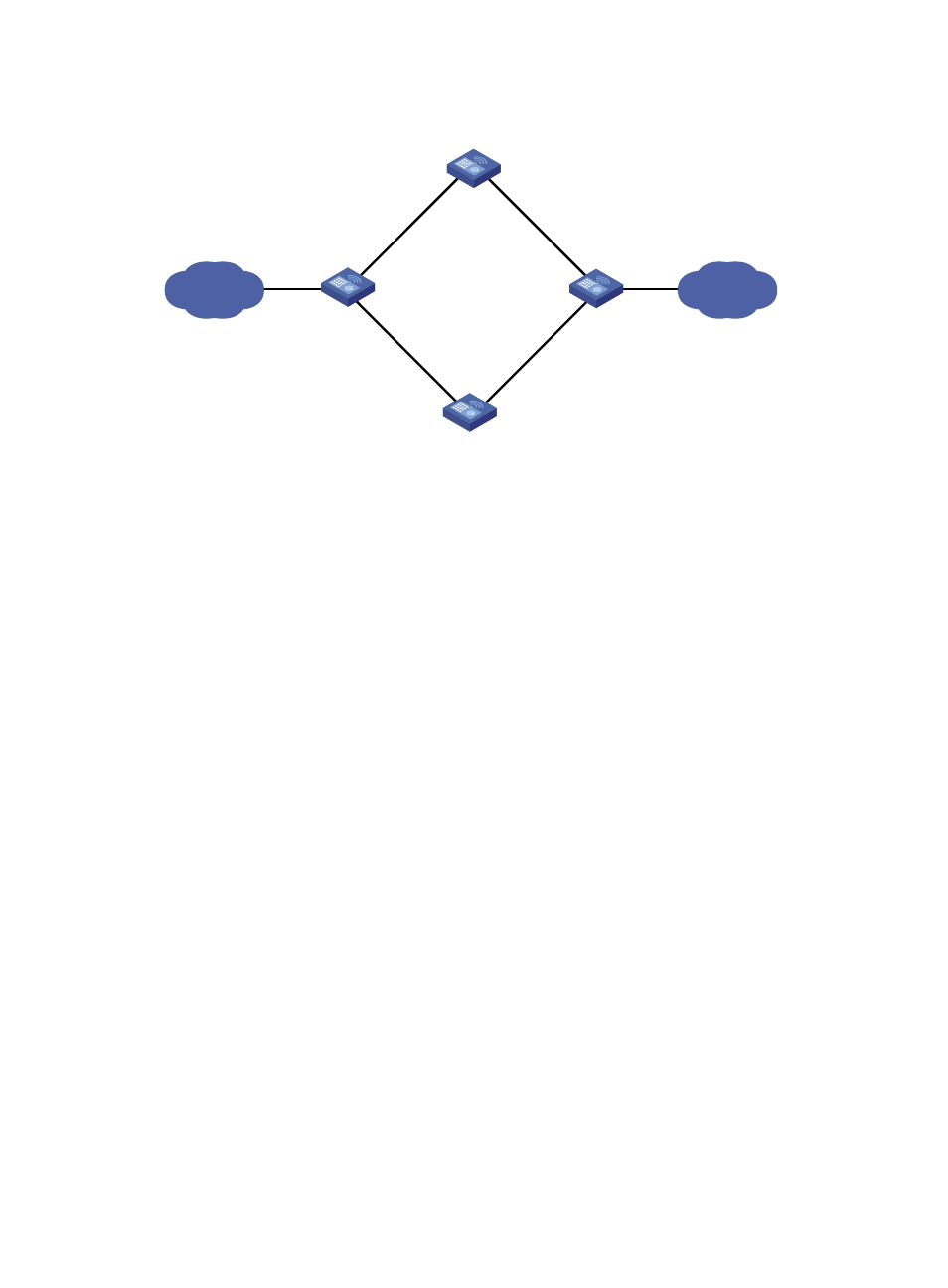

Figure 19 Network diagram

Configuration procedure

1.

Create VLANs, and assign corresponding ports to the VLANs, and configure the IP address of

each VLAN interface as shown in

Figure 19

. (Details not shown.)

2.

Configure AC 1:
# Configure a static route to 30.1.1.0/24, with the address of the next hop as 10.1.1.2 and the
default priority 60. This static route is associated with track entry 1.

<AC1> system-view

[AC1] ip route-static 30.1.1.0 24 10.1.1.2 track 1

# Configure a static route to 30.1.1.0/24, with the address of the next hop as 10.3.1.3 and the
priority 80.

[AC1] ip route-static 30.1.1.0 24 10.3.1.3 preference 80

# Configure a static route to 10.2.1.4, with the address of the next hop as 10.1.1.2.

[AC1] ip route-static 10.2.1.4 24 10.1.1.2

# Create an NQA test group with the administrator admin and the operation tag test.

[AC1] nqa entry admin test

# Configure the test type as ICMP-echo.

[AC1-nqa-admin-test] type icmp-echo

# Configure the destination address of the test as 10.2.1.4 and the next hop address as 10.1.1.2

to check the connectivity of the path from AC 1 to AC 2, and then to AC 4 through NQA.

[AC1-nqa-admin-test-icmp-echo] destination ip 10.2.1.4

[AC1-nqa-admin-test-icmp-echo] next-hop 10.1.1.2

# Configure the test frequency as 100 ms.

[AC1-nqa-admin-test-icmp-echo] frequency 100

# Configure reaction entry 1, specifying that five consecutive probe failures trigger the track

module.

[AC1-nqa-admin-test-icmp-echo] reaction 1 checked-element probe-fail threshold-type

consecutive 5 action-type trigger-only

[AC1-nqa-admin-test-icmp-echo] quit

# Start the NQA test.

Vlan-int5
10.2.1.2/24

Vlan-int2

10.1.1.2/24

Vlan-int2
10.1.1.1/24

AC 2

AC 1

AC 3

Vlan-int3

10.3.1.1/24

Vlan-int3

10.3.1.3/24

Vlan-int4
10.4.1.3/24

AC 4

Vlan-int5

10.2.1.4/24

Vlan-int4
10.4.1.4/24

30.1.1.0/24

20.1.1.0/24

Vlan-int6

20.1.1.1/24

Vlan-int7
30.1.1.1/24
