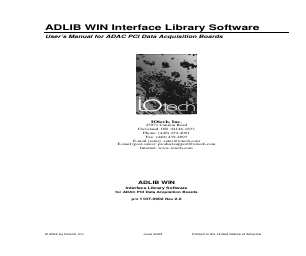

• ADLIB WIN Interface Library Software
• CONTENTS
• INTRODUCTION
  • OVERVIEW
  • SYSTEM REQUIREMENTS
  • APPLICATION LANGUAGE REQUIREMENTS
• INSTALLATION
  • INSTALLATION FROM WINDOWS for PCI CARD SUPPORT
  • SUMMARY OF DISK FILES FOR ADLIB WDM PCI CARD SUPPORT
• CONFIGURATION, CAPABILITIES AND INITIALIZATION FILES
  • CONFIGURATION (.CON) FILE
  • CAPABILITIES (.CAP) FILE
  • INITIALIZATION (.INI) FILE
• APPLICATION DEVELOPMENT
  • OVERVIEW
  • OPERATING MODES
  • LOGICAL DEVICES
• PROGRAM DEVELOPMENT
  • INCLUDING ADLIB WIN IN C\C++
    • Steps To Programming In C\C++
  • INCLUDING ADLIB WIN IN VISUAL BASIC FOR WINDOWS
    • Steps to Programming in Visual Basic For Windows
  • EXAMPLE PROGRAMS
• MEMORY BUFFER ALLOCATION
  • OVERVIEW
  • POLLING or DMA SYSTEM BUFFER ALLOCATION
  • THE BUFFER STRUCTURE
  • BUFFER NOTIFICATIONS
    • C\C++
    • Visual Basic for Windows
• DYNAMIC LINKING TO ADLIB WIN
  • IMPLICIT LINKING C\C++
  • EXPLICIT LINKING C\C++
  • VISUAL BASIC FOR WINDOWS
• ERROR HANDLING
  • OVERVIEW
  • ERROR CONTROL CONDITIONS
• ENVIRONMENT CONFIGURATIONS
  • AL_LoadEnvironment
  • AL_ReleaseEnvironment
  • AL_SetEnvString
  • AL_GetEnvString
• BOARD FUNCTIONS
  • AL_GetBoardHardwareId
  • AL_GetBoardDriverVersion
  • AL_SetBoardString
  • AL_GetBoardString
  • AL_GetBoardName
  • AL_GetMfgProductId
• LOGICAL DEVICE ALLOCATIONS
  • AL_AllocateDevice
  • AL_ReleaseDevice
  • AL_SetLdsString
  • AL_GetLdsString
• LOGICAL DEVICE INITIALIZATIONS
  • AL_InitDevice
• LOGICAL DEVICE START / STOP OPERATIONS
  • AL_StartDevice
  • AL_StopDevice
• LOGICAL DEVICE CYCLE MODES
  • AL_SetCycleMode
  • AL_GetCycleMode
• LOGICAL DEVICE TRANSFER METHODS
  • AL_SetDataTransferMethod
  • AL_GetDataTransferMethod
• LOGICAL DEVICE STATUS INFORMATION
  • AL_GetDeviceStatus
• ANALOG OUTPUT
  • AL_SetDaOutput
• DIGITAL INPUT/OUTPUT
  • AL_DigInput
  • AL_DigOutput
  • AL_DigBitsTest
• TRIGGERING MODES
  • AL_SetTriggerMode
  • AL_SetTriggerSource
  • AL_SetTrigSourceSignal
  • AL_SetPostSampleCount
  • AL_GetTriggerStruct
  • AL_SetTriggerOutput
  • AL_GetTriggerOutput
• CLOCKING MODES
  • AL_SetClockSource
  • AL_SetClockRate
  • AL_GetActualClkRate
  • AL_MaxClkRate
  • AL_GetClockStruct
  • AL_SetClockOutput
  • AL_GetClockOutput
• GATING MODES
  • AL_SetGateSource
  • AL_SetGateLevel
  • AL_GetGateStruct
  • AL_SetSwGate
  • AL_GetSwGate
• BURST MODES
  • AL_SetBurstMode
  • AL_SetBurstLength
  • AL_SetBurstRate
  • AL_GetBurstStruct
• CHANNEL SELECTIONS
  • AL_SetChannelList
  • AL_GetChannelList
  • AL_SetMinStartChan
  • AL_GetMinStartChan
  • AL_SetMaxEndChan
  • AL_GetMaxEndChan
  • AL_SetGainGlobal
• INPUT CONFIGURATIONS
  • AL_SetInputConfigList
  • AL_GetInputConfigList
  • AL_SetInputConfigGlobal
• DATA OFFSETS
  • AL_SetDataOffsetList
  • AL_GetDataOffsetList
  • AL_SetDataOffsetGlobal
• COUNTER / TIMERS
  • AL_SetCtrMode
  • AL_GetCtrMode
  • AL_CounterIn
  • AL_CounterOut
• BUFFER HANDLER FUNCTIONS
  • AL_ClearBufferDoneFlag
  • AL_GetDoneBuffPtr
  • AL_GetBuffPtr
  • AL_CopyBuffer
  • AL_SetBuffer
  • AL_GetBufferStatus
  • AL_SetBufferDoneHandler
  • AL_GetBufferDoneHandler
  • AL_SetBufferDoneHandlerMsg
  • AL_GetBufferDoneHandlerMsg
  • AL_SetBufferDoneHandlerFunc
  • AL_SetBufferDoneHandlerParams
  • AL_SetNumOfBuffers
  • AL_GetNumOfBuffers
  • AL_SetBufferSize
  • AL_GetBufferSize
  • AL_SetAutoInitBuffers
  • AL_GetAutoInitBuffers
  • AL_SetPackedData
  • AL_GetPackedData
• DATA FORMATTING FUNCTIONS:
  • AL_DemuxData
  • AL_DemuxDataSet
• ERROR HANDLING FUNCTIONS
  • AL_SetErrOnReInitRunning
  • AL_GetErrOnReInitRunning
  • AL_SetErrOnReleaseRunning
  • AL_GetErrOnReleaseRunning
  • AL_GetBoardError
• ADLIB ERROR CODES
• BOARD DRIVER ERROR CODES
