FIG. 4

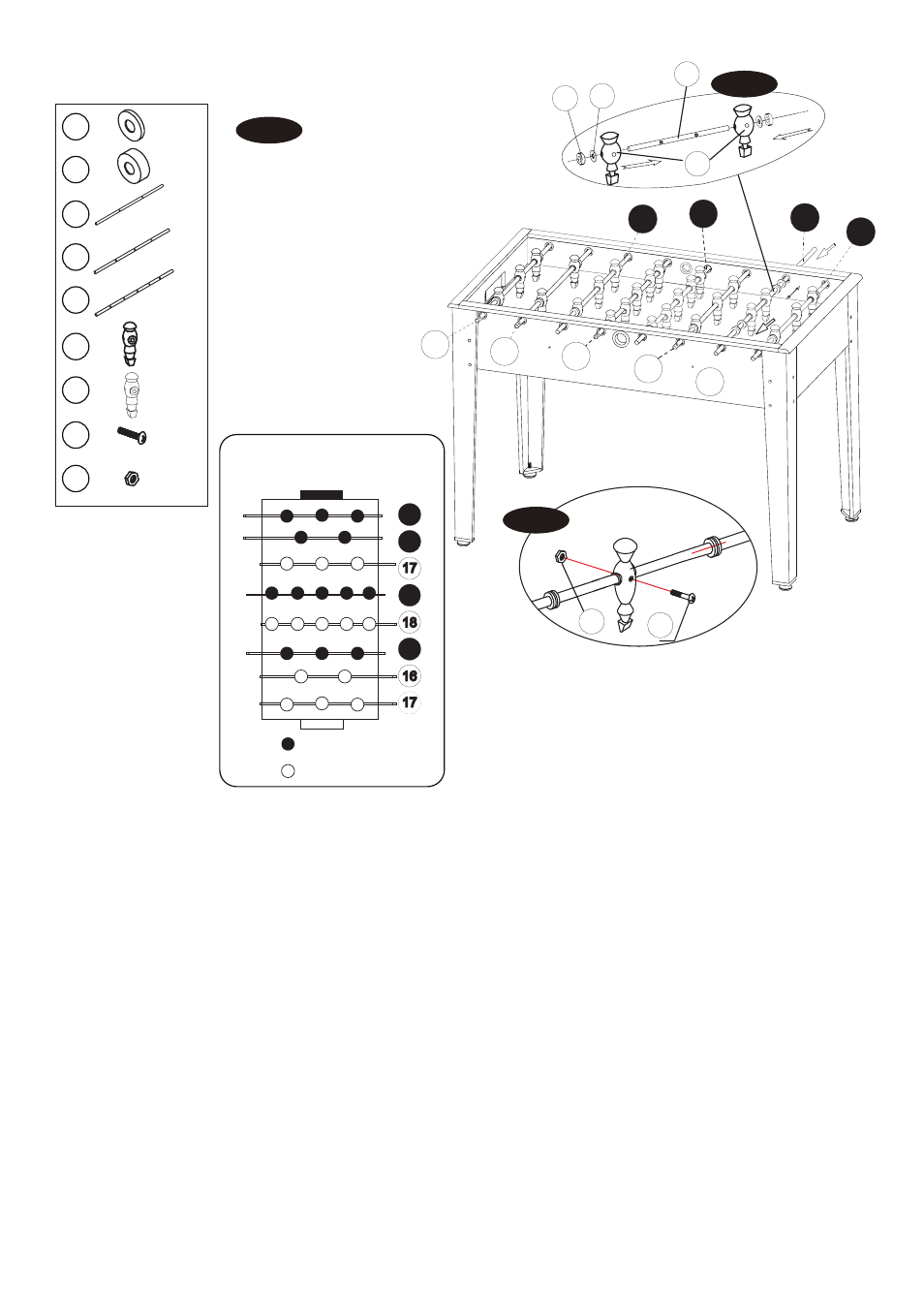

FIG. 4: PLAYERS ASSEMBLY
9. Slide the Player Rods (#16-18) through the bushings of one side of the Side Aprons (#1) in the order shown in FIG.4.
NOTE : The Player Rods have a hole at their end where the Handles (#10) will go.
10. Place a Foam Bumper (#9), a Rod Washer (#8), either 2,3 or 5 Players (#19 and #20) and then place another
Rod Washer (#8) and another Foam Bumper (#9) onto the other side of the Side Player Rod. See FIG.4A.
NOTE: Players of the same team color should have Handles (#10) on the same side, and each team’s players
should be facing their opponent.
11. Now insert the Player Rods through the bushings on the other side of the Aprons (#1) (at the other side of the table).
12. Attach the Players to the rod with a Screw (#21) and a M4 Nut (#23). See FIG.4B.
7
8
9
X 16
X 16
16
17
X 2
X 4
18 X 2
19 X 13
20 X 13
21 X 26
23 X 26
ORDER OF PLAYERS
(Overhead View)
17
17
18
16
17
17
18
16
= Black
= Ivory
17
17
17
1
17
18
18
16
16
16
8
19
9
21 23
FIG. 4A
FIG. 4B
