Internal Design
Owner’s Manual 43
■
Makeup of Internal Memory

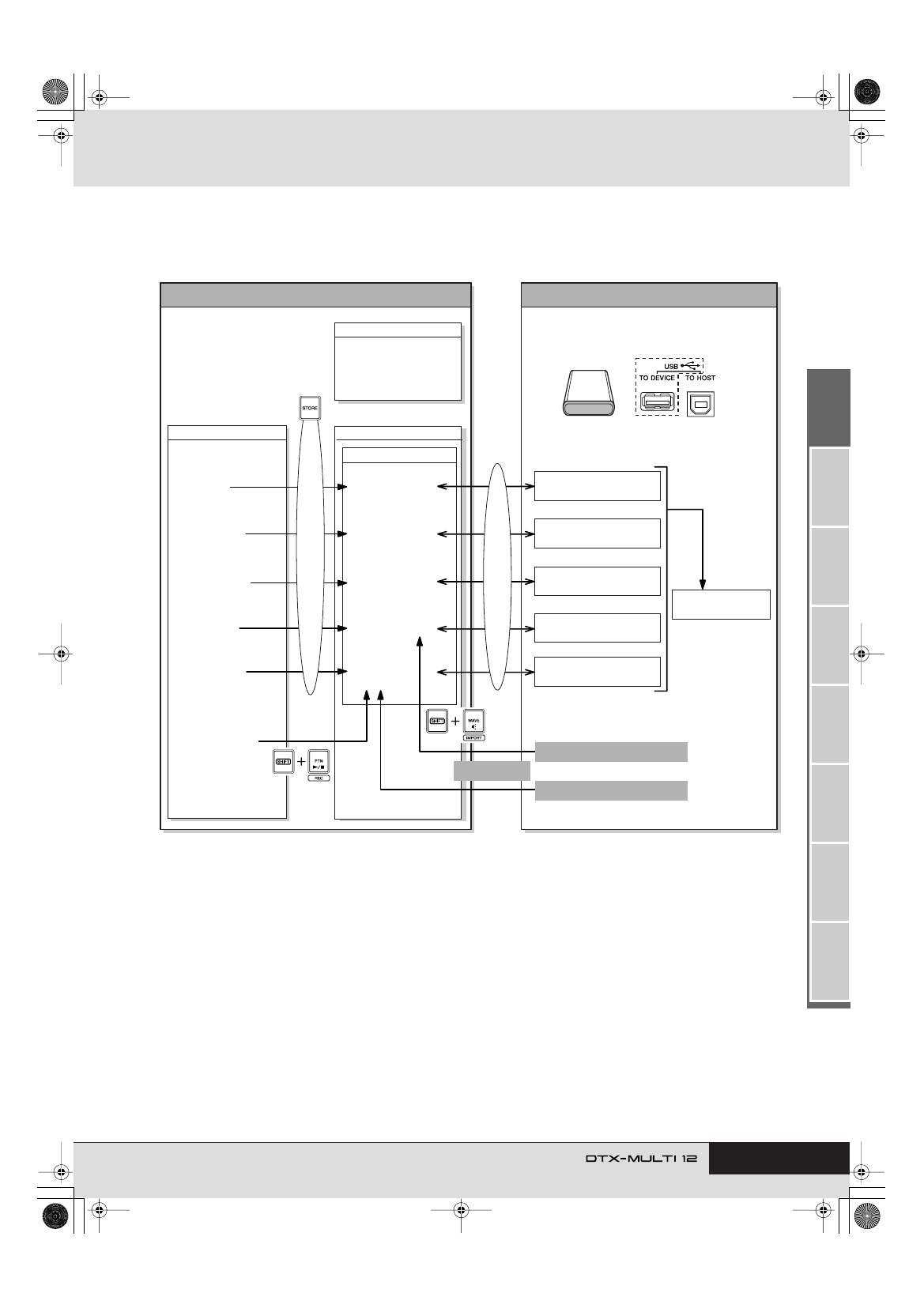

The following diagram shows the correlation between the various functions that can be used to create data on the DTX-
MULTI 12, the data in the instrument’s internal memory, and the data on a USB memory device.
Internal memory
UTIL7
FILE
Data-creating functions
Preset data (ROM)
• Kits
• Voices
• Patterns
• Trigger setups
• User kits
External USB memory device
User memory
Flash ROM
• User trigger
setups
• Utility setting
• Waves
• User
patterns
File extension: .MTK
(file type = “AllKit”)
All combined
File extension: .MTA
(file type = “All”)
File extension: .MTT
(file type = “AllTrigger”)
File extension: .MTU
(file type = “Utility”)
File extension: .MTW
(file type = “AllWave”)
File extension: .MTP
(file type = “AllPattern”)
Audio data (.WAV or .AIFF)
Standard MIDI file (.MID)
Import
Record
• Pattern editing
• Wave editing
• Utility setting
• Trigger setting
• Kit editing
Sa
ve / Load
Store
Import SMF
(PTN4-7)
• Pattern recording
• Voice setting
• MIDI setting
