Speaker Connections

„

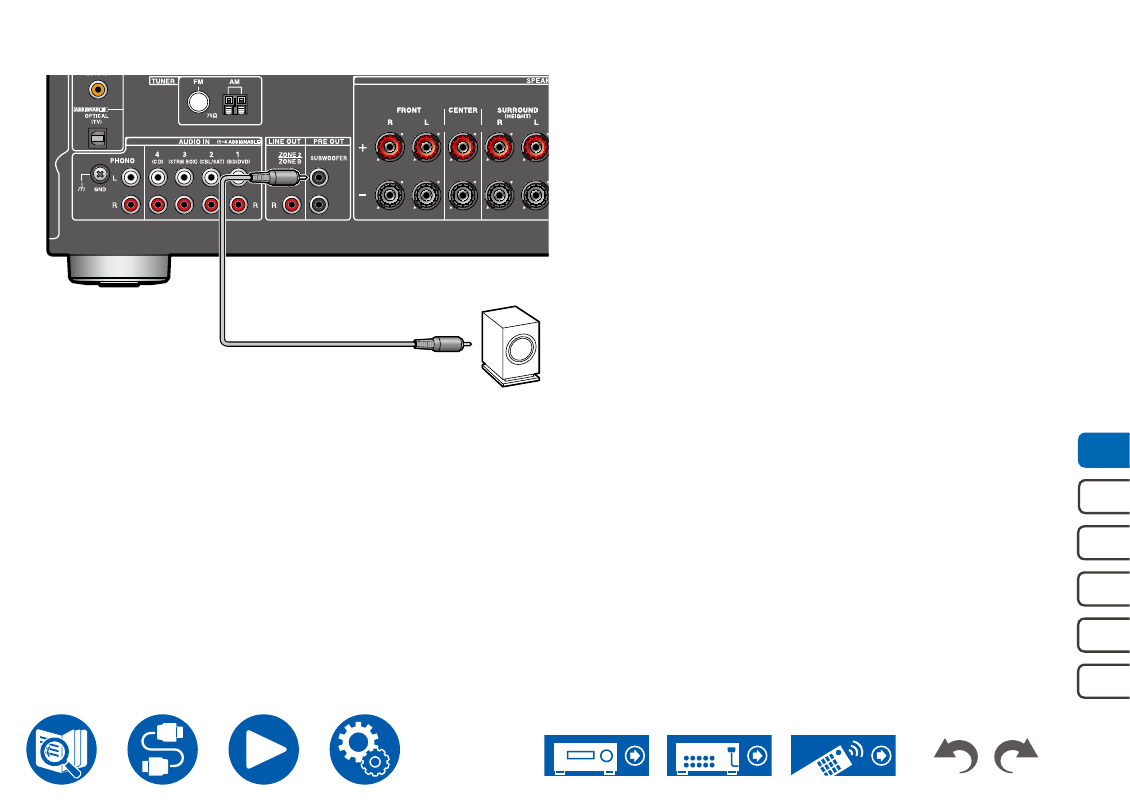

Connect the Subwoofer

a

a

Subwoofer cable

Connect a powered subwoofer with this unit using a subwoofer cable. Up to two

powered subwoofers can be connected. The same signal is output from each

SUBWOOFER PRE OUT jack.
