5.1ch

7.1ch

3.1.2ch

5.1.2ch

3.1ch

46

Speaker Connections

„

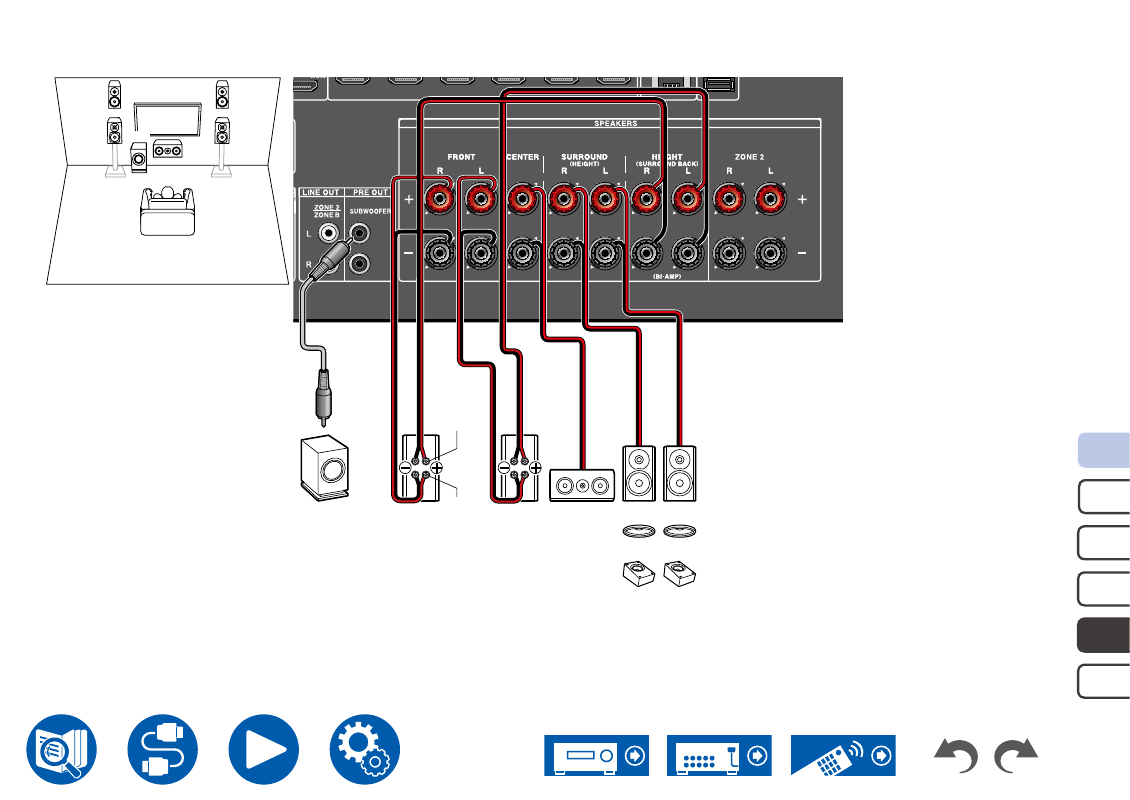

3.1.2 Channel System (Bi-Amping the Speakers)

HL

HR

C

SW

FL

FR

SW

C

HR

OR

OR

HL

OR

OR

FR

FL

For high-

frequency

For low-

frequency

Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of

your speakers as well.
