Cornelius Enduro 150 8 Valve - Manual (Page 16)

14
620904402
DRAIN
1
1
1
1
2
3
3
4
TO COLD PLATE
DRAIN ELBOW
1
TO COLD PLATE
DRAIN ELBOW

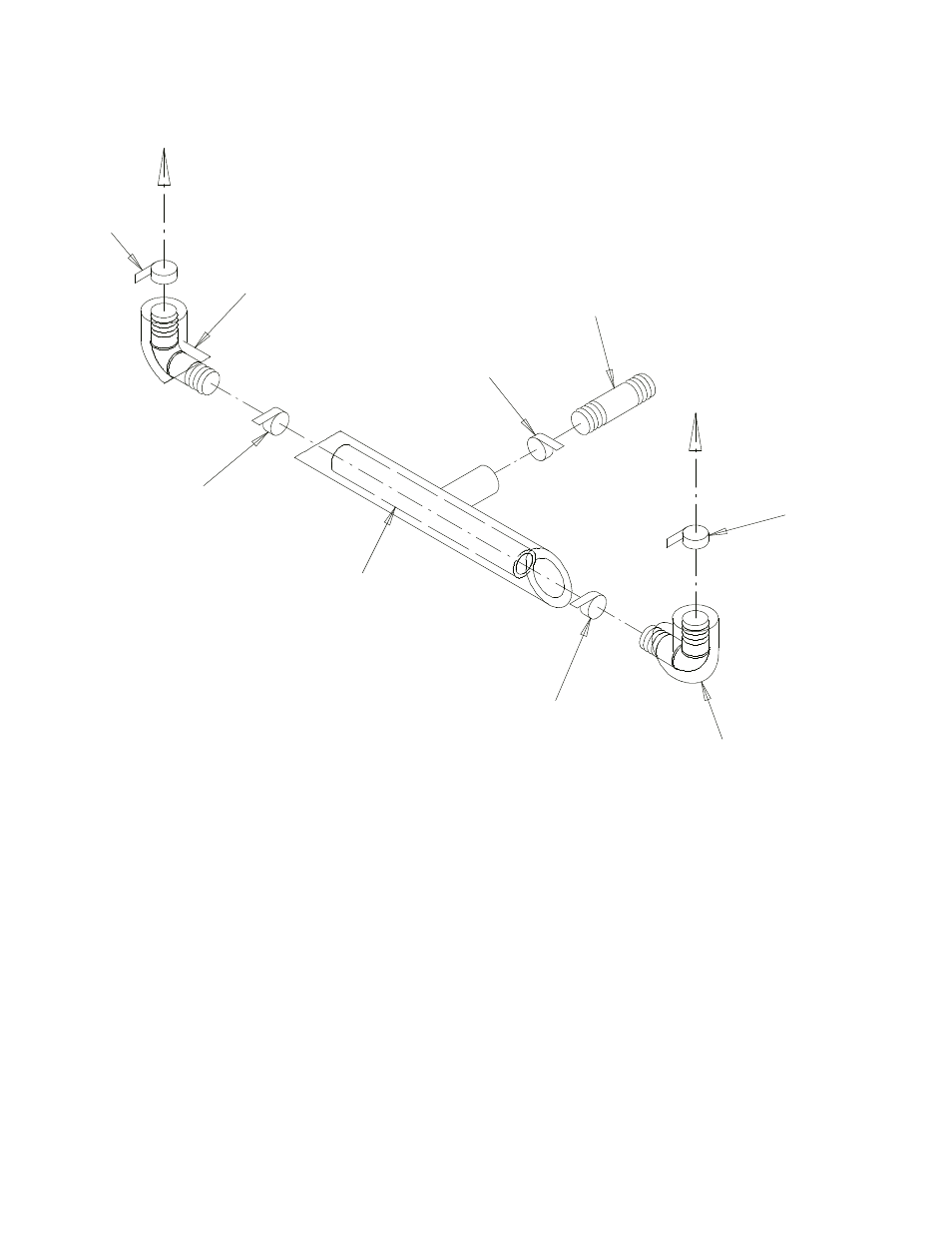

FIGURE 4. COLD PLATE DRAIN FOR Z STYLE UNITS
Item
No. Part No. Name
1 70750 Hose Clamp
2 53170 Drain Tube
3 51280 Elbow
4 53293 Coupler
