MCD5060
6
BASIC OPERATION
Control Panel Release (REL)
Press the REL button (3) to release the control panel.
Power On/Off ( )
Press the button (1) to turn the unit ON or OFF.
Volume Control
To increase the volume, rotate the volume control knob (6) clockwise.
To decrease the volume, rotate the volume control knob counter clockwise.
When the volume is adjusted, the volume level is shown on the display panel as a number
ranging from 00 (lowest) to 100 (highest).
Mute
Press the MUTE button (8) on the control panel to mute the audio output. “Mute” will appear on
the display. Press MUTE again to restore the audio output to the previous level.
Mode
Press the MODE button (5) on the control panel to select a different mode of operation, as
indicated on the display panel. Available modes include Radio, CD, and AUX In (optional
Auxiliary Input).
Auxiliary Input
1.
Connect the external signal to the “Aux In” jack (22) located on the front of the control
panel.
2. Press the MODE button to select Aux In mode.
3. Press MODE again to cancel Aux In mode and return to previous mode.
Display (D)
Press the D button (18) on the control panel to view the clock. The LCD will display the clock
for 5 seconds, then return to the previous display mode.
Clock Adjustment
With the clock displayed, press the D button (18) until the LCD flashes. Press the up >>| (21)
button to adjust the hours or the down |<< button (20) to adjust the minutes.
Reset
After releasing the control panel, use a pencil or any non-metallic
object to press and hold the RESET button for five seconds to reset
the main unit. The unit will return to the factory default settings. The
reset button should be activated for the following reasons:
•
initial installation of the unit when all wiring is completed
• function buttons do not operate
• error symbol on the display
NOTE: If after pressing the RESET button the unit still does not function normally, use a
cotton swab soaked in isopropyl alcohol to clean the socket on the back of the control
panel.
Audio Menu
Press the volume control button (4) on the control panel to access the Audio Menu. You can
navigate through the Audio Menu items by pressing the volume control button repeatedly.
Once the desired menu item appears on the display, adjust that option by turning the volume
control knob within 5 seconds. The unit will automatically exit the Audio Menu after five
seconds of inactivity. The following menu items can be adjusted.
Volume Level
Use the volume control knob to adjust the Volume level from “00” (lowest) to “100” (highest).
Bass Level
Use the volume control knob to adjust the Bass level range from “-10” to “+10”.
Treble Level
Use the volume control knob to adjust the Treble level range from “-10” to “+10”.
Balance
Use the volume control knob to adjust the Balance between the left and right speakers from
“10L” (full left) to “10R” (full right). “BAL L=R” represents an equal balance between the left and
right speakers.
Fader
Use the volume control knob to adjust the Fader between the rear and front speakers from
“10R” (full rear) to “10F” (full front). “FAD R=F” represents an equal balance between the rear
and front speakers.

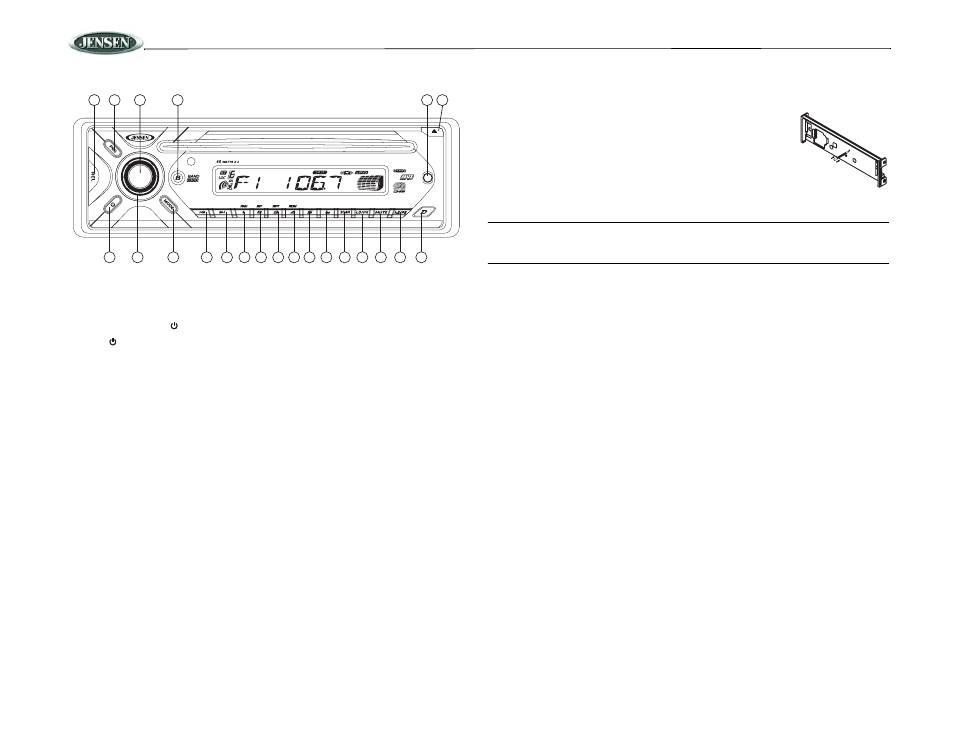

MCD5060
1
2 3
5 6
7
8 9 10 11 20 21 12 13 14 15 16 17 18
19 4 22
RESET
