E
Installation
Fitting the lens

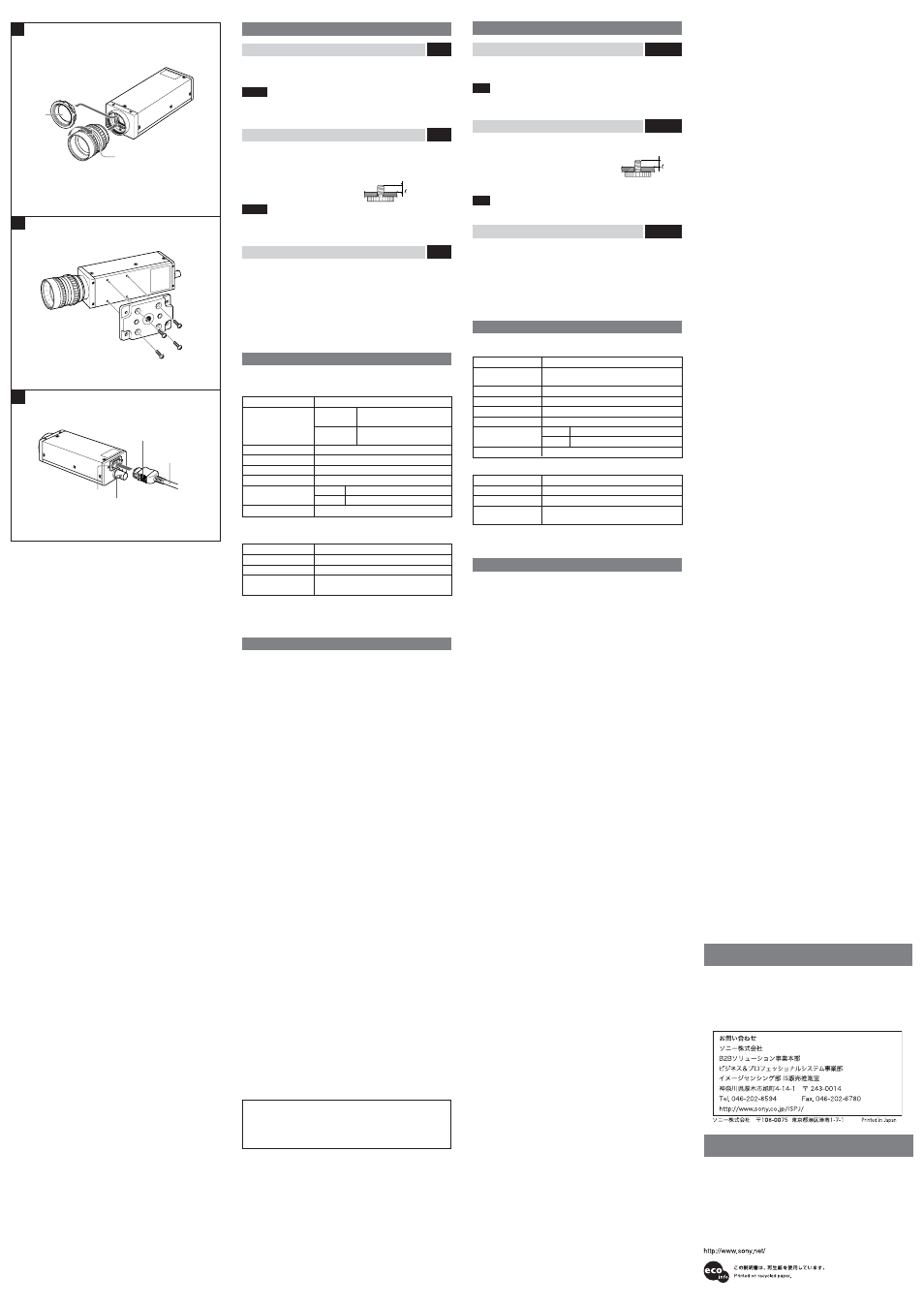

Fig. E
1 Remove the lens mount cap.
2 Screw in the lens (not supplied), and turn it until it is secured.
Note
Clean the optical filter with a commercially available blower brush to remove
dust.
Using a tripod
Fig. F
To use the tripod, install the tripod adaptor VCT-ST70I (not supplied) on the
camera module.
Use a tripod screw with a protrusion (
4
) extending
from the installation surface, as follows:
ISO standard: Length 4.5 mm ±0.2 mm
ASA standard: Length 0.197 inches
Note
If you install a tripod adapter (not supplied), use the screws provided.
Connecting the camera cable
Fig. G
Connect the IEEE1394 camera cable to the camera connector and the 1394
interface connector of your computer. When you connect the cable, press
the push button on the connector and insert the connector until it snaps into
place.
1
Camera connector
2
TRIG IN connector
3
Push button
4
IEEE1394 camera cable (supplied)
Controlling the camera from your PC
You can control the camera from your PC. The following table shows the
control functions.
Control functions
Description
Frame rate
XCD-SX910CR/SX910 : 15/7.5/3.75/1.875 fps
XCD-X710CR/X710
: 30/15/7.5/3.75/1.875 fps
Transmission speed
400M/200M bps
Gain
0 to +18 dB
Adjusting Brightness
Minute adjustment of the black level
Shutter speed
1
/
100000
to 17.5 seconds
External trigger function
Mode 0
Setting by register value
Mode 1
Setting by trigger pulse width
Partial Scan function
16
×
16 : 256 devided
The XCD-SX910CR/X710CR also offers the following functions.
Control functions
Description
Optical filter
Bayer array output pattern can be selected.
White balance
R and B gain can be adjusted with respect to G.
Hue
If White balance cannot be obtained using R and
B, G gain can be adjusted using Hue.
These control items comply with Digital Camera Protocol, Ver. 1.30, of the IEEE1394
Serial Digital Bus Standard. For more details, refer to the Technical Manual.
Specifications
Pickup device
Progressive scan CCD
Effective picture elements:
XCD-SX910CR/SX910 : 1392
×
1040 (horizontal/
vertical)
XCD-X710CR/X710
: 1034
×
779 (horizontal/
vertical)
Interface
IEEE1394-1995
Output signal format
XCD-SX910CR/SX910 : Standard : 1280
×
960
(horizontal/vertical)
Maximum : 1376
×
1024
(horizontal/vertical)
XCD-X710CR/X710
: 1024
×
768 (horizontal/
vertical)
Frame rate
XCD-SX910CR/SX910 : 15/7.5/3.75/1.875 fps
XCD-X710CR/X710
: 30/15/7.5/3.75/1.875 fps
Transfer speed
400M/200M bps
External trigger signal (conditions)
Pulse width : 10
µ
s or more
Polarity
: Negative
Amplitude
: TTL level
Lens mount
C mount
Flange back
17.526 mm
Minimum illumination
XCD-SX910CR/X710CR : 20 lx (F0.95, Gain:
+18 dB, G ch)
XCD-SX910/X710
: 4 lx (F0.95, Gain:
+18 dB)
Gamma
γ
= 1
Gain
0 to +18 dB
Shutter speed
1/100000 ~ 17.5 seconds
Power
DC +8 V to +30 V (from IEEE1394 camera cable)
Power consumption
3.5 W
Operating temperature: –5 to +45°C (23 to 113°F)
Storage temperature:
–30 to +60°C (–22 to 140°F)
Operating relative humidity:
20 to 80% (no condensation)
Storage relative humidity:
20 to 95% (no condensation)
Vibration resistance
10 G (20 Hz to 200 Hz)
Shock resistance
70 G
External dimension (w/h/d)
44
Ч
33
Ч
116 mm
(1
3
/
4
Ч
1
5
/
16
Ч
4
5
/
8
inches)
Mass
250 g (9 oz)
Accessories
IEEE1394 camera cable (1)
Lens mount cap (1)
Operating Instructions (1)
About the Technical Manual
The Operating Instructions describe the functions and use of this
product.
For more details, see the Technical Manual. Please ask your sales
representative about the Technical Manual.
