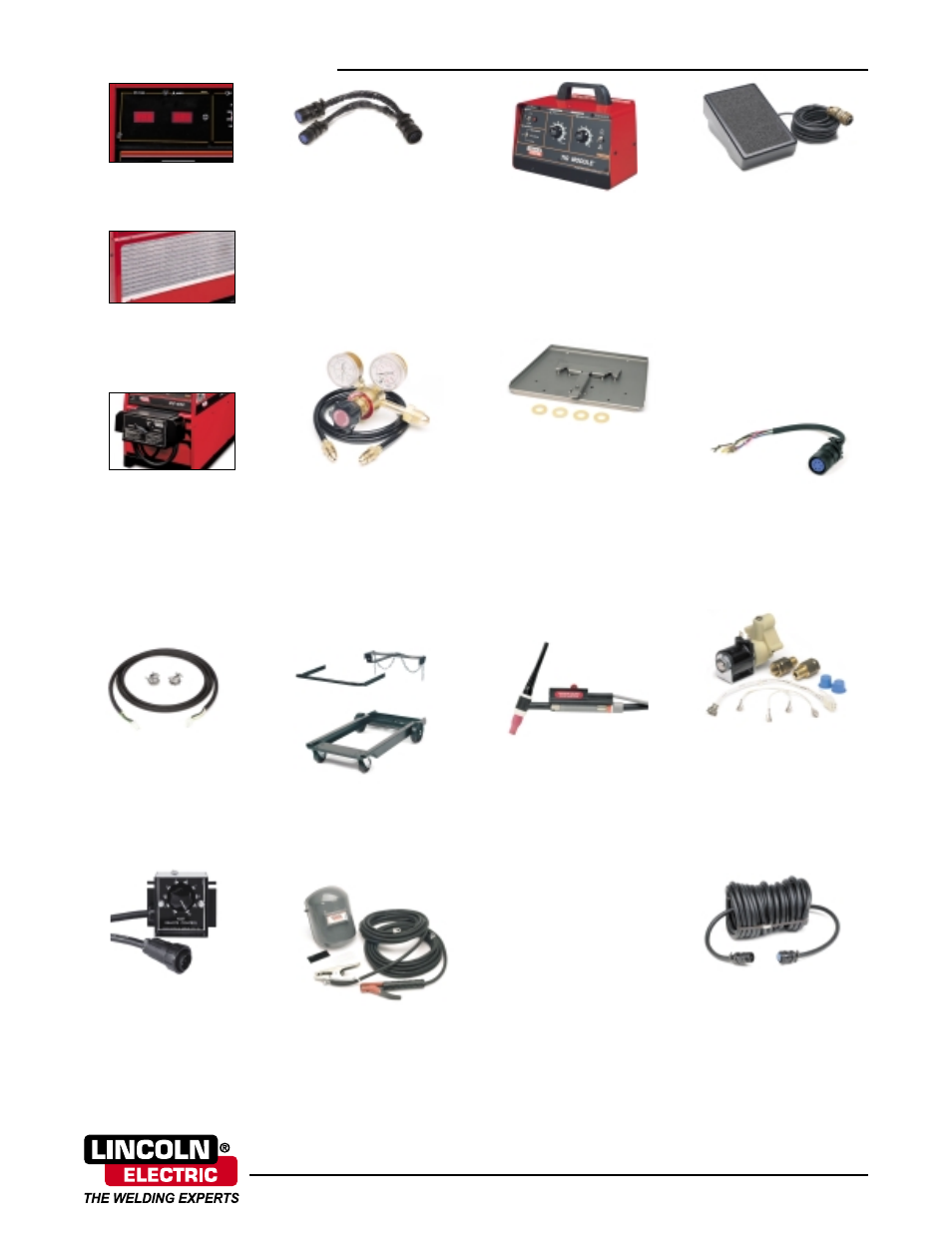

Recommended Options
Digital Meter Kit
Displays amps and volts.
Order K1482-1.
Air Filter Kit
Mounts on the front of the
machine and uses clean-
able, all metal air filters.
Order K1486-1.
Dual Process Switch
Mounts on front of machine
and provides polarity
change or electrical isola-
tion. Great for arc gouging
applications and where two
separate feeders require
different output polarity or
inductance settings.
Order K1528-1.
Paralleling Kit
Permits paralleling of two
DC-655’s for welding cur-
rents of up to 1300 amps,
100% duty cycle. The
“master” DC-655 controls
both paralleled machines.
Order K1611-1.
Remote Output Control
Provides 25 ft. or 100 ft.
(7.6m or 30m) of remote
output control (6 pin plug
connection). Requires K864
Control Cable Adapter.
For 25 ft. (7.6m),
Order K857
For 100 ft. (30m),
Order K857-1.
Remote Control
Adapter
Y connection adapter for
connecting K857 Remote
Voltage Control (6 pin plug
connection) and wire feeder
input cable (14 pin plug con-
nection) to DC-655 14 pin
receptacle.
Order K864.
Deluxe Adjustable Gas
Regulator & Hose Kit
Accommodates CO
2
, Argon
or Argon-blend gas cylin-
ders. Includes a cylinder
pressure gauge, dual scale
flow gauge and 4.3 ft.
(1.3m) gas hose.
Order K586-1.
Undercarriage
Platform undercarriage with
mountings for two gas cylin-
ders at rear of welder.
Order K842.
Accessory Kit
For stick welding. Includes
35 ft. (10.7m) 2/0 electrode
cable with lug, 30 ft. (9.1m)
2/0 work cable with lugs,
headshield, filter plate,
cover plate, work clamp
and electrode holder. 400
amp capacity.
Order K704.
TIG Module
Supplies high frequency for
superior starting, contactor
control, remote control
capability and a gas valve
for TIG welding.
Order K930-2.
Docking Kit
Provides a means to “dock”
the TIG Module on top of a
flat-roofed power source, or
any other flat surface meas-
uring at least 10 x 15 in.
(254 x 381mm). It includes a
latch and provisions for a
user-supplied padlock to
lock the TIG Module in
place.
Order K939-1.
Hand Amptrol™
Varies current for making
critical TIG welds. Fastens
to the torch for convenient
thumb control. Comes with a
25 ft. (7.6m) cable. Fully
extend the slide forward to
achieve maximum current.
Returning to the start posi-
tion finishes the weld and
starts the afterflow cycle on
systems so equipped.
Order K963-1
(For smaller handle 9, 17 or
20 series torches).
Order K963-2
(For larger handle 26 or 18
series torches).
Foot Amptrol™
Varies current for making
critical TIG welds. Depress
pedal to increase current.
Depressing pedal fully
achieves maximum set
current. Fully raising the
pedal finishes the weld
and starts the afterflow
cycle on systems so
equipped. Includes 25 ft.
(7.6m) control cable.
Order K870.
Amptrol Adapter Kit
Adapts Amptrol’s 6-pin
MS-type plug connection to
terminal strip on power
source.
Order K843.
Water Valve
For use with TIG Module.
Shuts off water flow when
the arc is extinguished when
using Magnum
® water-
cooled TIG torches.
Order K844-1.
TIG Control Cable
Extension
Allows the TIG Module to
be operated at up to 45 ft.
(13.7m) from power source.
Connects between the 2 ft.
(0.6m) control cable and the
TIG Module. 45 ft.
Order K937-45.
