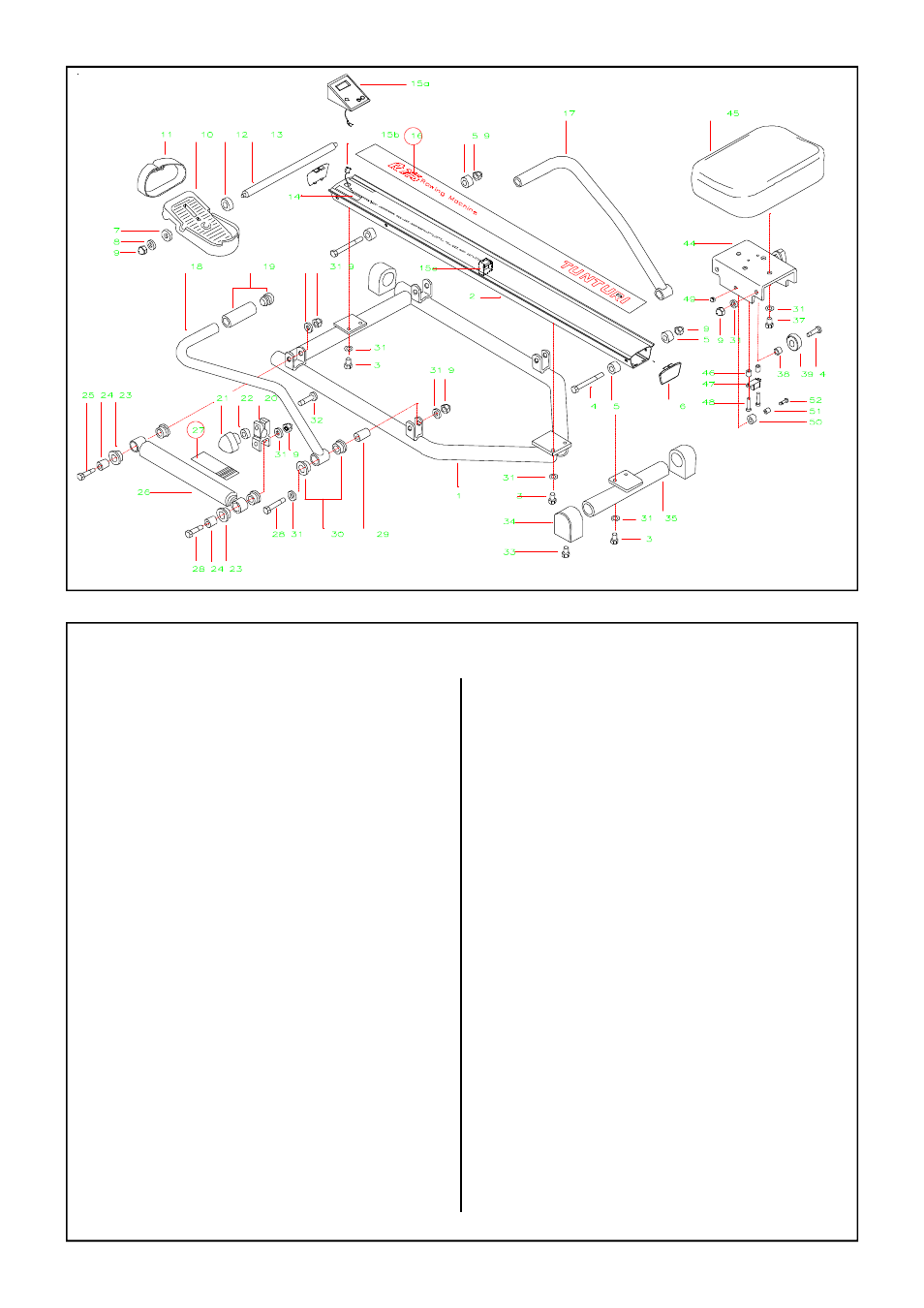

1 103 2009 Frame F
2 103 2008 Rail F
3 60 08 016 03 Bolt F
4 653 271 87 Bolt F
5 533 2018 Stopper A
6 533 2017 End plate A
7 653 238 87 Plastic washer A
8 62 1021 10 Washer F
9 653 206 87 Cap nut F
10 363 2003 Pedal A
11 443 2007 Pedal strap L
12 533 250 87 Rubber spacer A
13 343 209 87 Shaft F
14 503 2007 Velcro tape, pair L
15a 233 2009 Meter H
15b 403 2011 Sensor H
15c 503 2008 Bracket of sensor A
16 423 2018 Label set (incl. 27.) L
17 203 219 87 Oar RH F
18 203 220 87 Oar LH F
19 213 204 87 Handle, grip & cap L
20 513 213 87 Clamp F
21 653 0060 Knob A
22 533 252 88 Spacer F
23 533 7029 Sleeve A
24 523 7006 Sleeve F
25 60 08 040 02 Bolt F
26 163 2001 Shock compl.
(incl. 23)
F
28 653 273 87 Bolt F
29 523 216 87 Sleeve F
Ref. no Part no.
30
30 523 221 87 Sleeve A
31 63 08 127B Spring washer F
32 60 08 050 40 Lock hd. bolt F
33 60 39 013 57 Screw F
34 533 2019 Stand shoe A
35 103 227 87 Rear bar F
37 653 274 87 Bolt F
38 533 248 88 Sleeve F
39 533 247 88 Roller L
41 653 275 88 Bolt F
44 153 258 88 Seat frame F
45 153 2005 Seat L
46 533 2020 Sleeve F
47 403 2010 Magnet F
48 60 04 020 21 Screw F
49 61 0510 Nut F
50 153 2004 Pulley A
51 523 2010 Sleeve F
52 653 1004 Screw F
- 553 4001 Hardware kit F
- 583 2005A Owner's manual E
Ref. no Part no.
List for recycling / Index für Materialentsorgung:
A = Thermoplastic / Kunststoff, Thermoplast
E = Paper, Carton / Papier, Pappe
F = Metal / Metall
H = Electronics / Elektronik
L = Other / Sonstiges
