Approved Optics, Inc. www.ApprovedOptics.com Page 5 of 9
330-2404-A
10GBASE-LR SFP+ SMF
1310NM 10KM REACH LC
Table 1: SFP+ Module PIN Definition

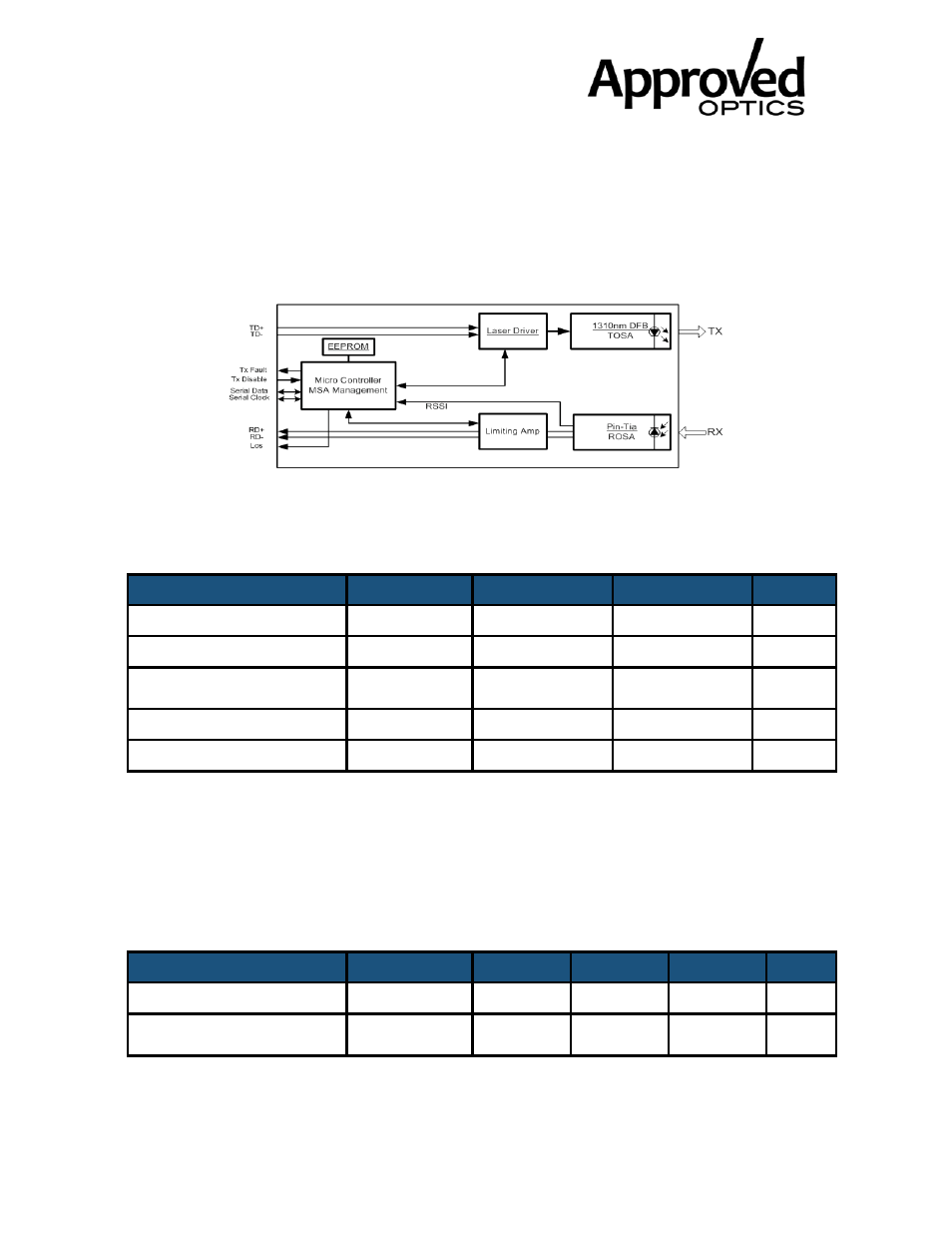

4. TRANSCEIVER BLOCK DIAGRAM
5. ABSOLUTE MAXIMUM RATING
These values represent the damage threshold of the module. Stress in excess of any of
Parameters Symbol Min. Max. Unit
Power Supply Voltage Vcc 0 3.6 V
Storage Temperature Tc -40 85 °C
Operating Case
Temperature
Tc 0 70 °C
Relative Humidity RH 5 95 %
RX Input Average Power Pmax - 0 dBm
the individual Absolute Maximum Ratings can cause immediate catastrophic damage to
the module even if all other parameters are within Recommended Operating
Table 2: Absolute Maximum Rating
6. RECOMMENDED OPERATING ENVIRONMENT
Recommended Operating Environment specifies parameters for which the
Parameters Symbol Min.
Typical
Max. Unit
Power Supply Voltage Vcc 3.135
3.3
3.465 V
Operating Case
Temperature
Tc 0
25
70 °C
electrical and optical characteristics hold unless otherwise noted.
