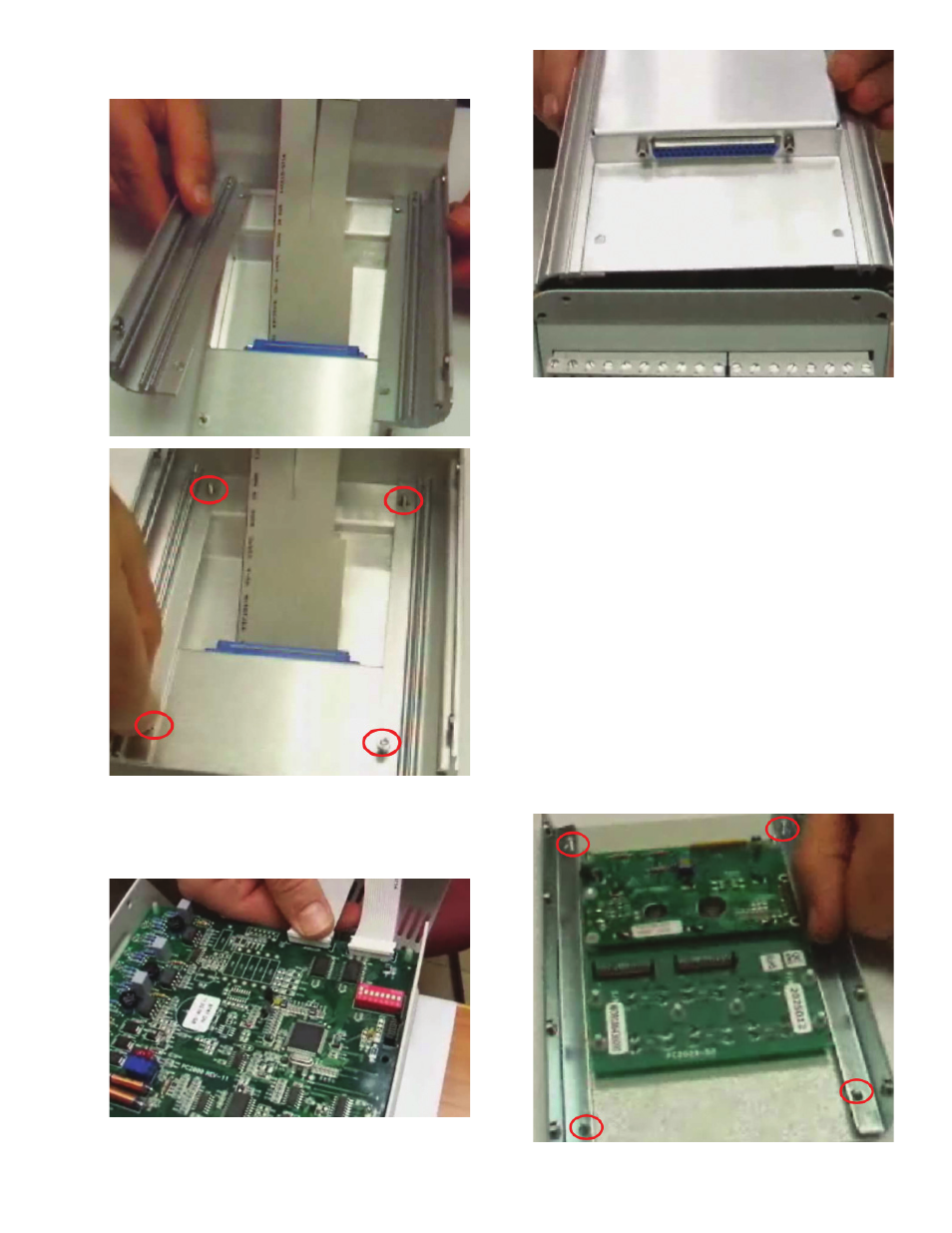

8.
Mount the dummy cover (Item C) to soft starter
frame and fasten with 4 nuts.
9.
Connect 2 fl at cable connectors to SMDP2000
and install front cover back to place.
10.
Fasten 2 screws that were loosened in Step 5.
11.
Fasten 4 screws that were loosened in Step 3.
Do not fully fasten the screws.
12.
Fasten 4 screws that were loosened in Step 4.
Install spring washers on the bottom screws.
13.
Fully fasten 4 screws that were fastened in
Step 11.
14.
Put display unit in the holding brackets (Item E)
and fasten it with 4 nuts.
