8 . 8 . 8 . 8 . 8 . O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D 1 ) O p t i c a l d r i v e a u d i o c o n n e c t o r ( 4 - p i n C D 1 )
This connector is for the 4-pin audio cable that connects to the audio
connector at the back of the optical drive.
Enable the CD-IN function in the audio utility when using this connector.
9 . 9 . 9 . 9 . 9 . F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P 1 ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P 1 ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P 1 ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P 1 ) F r o n t p a n e l a u d i o c o n n e c t o r ( 1 0 - 1 p i n A A F P 1 )
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy AC’97 audio standard.
We recommend that you connect a high-definition front panel audio
module to this connector to use the high-definition audio features of the
motherboard.
®

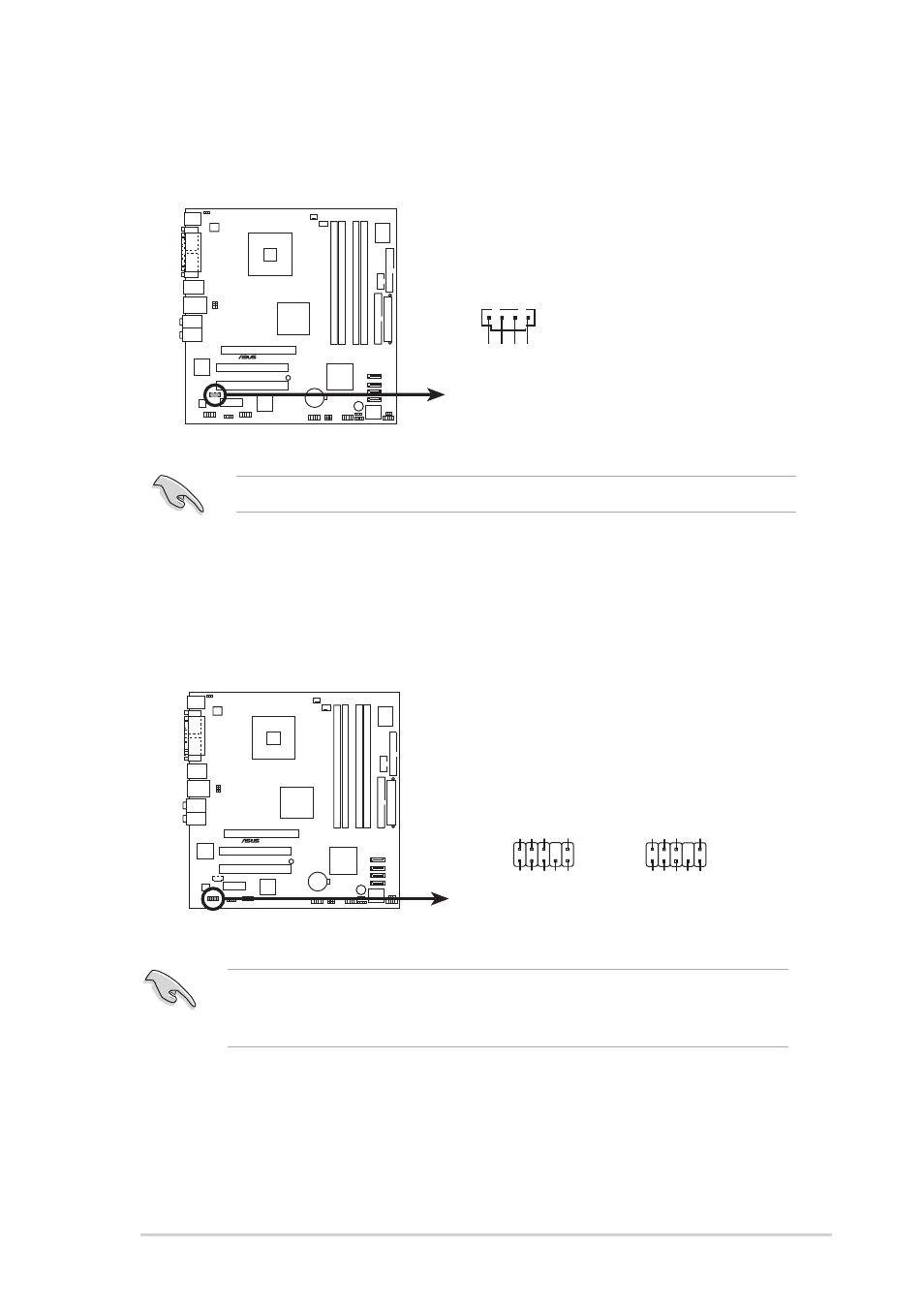

CD audio connector
CD1
Right A
udio Channel
Left A
udio Channel
Ground Ground
®
Analog front panel connector
AAFP1
Legacy AC’97
compliant definition
Azalia
compliant definition
SENSE2_RETUR
POR
T1 L
POR
T2 R
POR
T2 L
SENSE1_RETUR
SENSE_SEND
POR
T1 R
PRESENCE# GND BLINE_OUT_L
MIC2
Line out_R Line out_L
BLINE_OUT_R
NC
MICPWR
+5V
A
AGND
