ASUS X79-DELUXE
2-9
Chapter 2
2.1.7

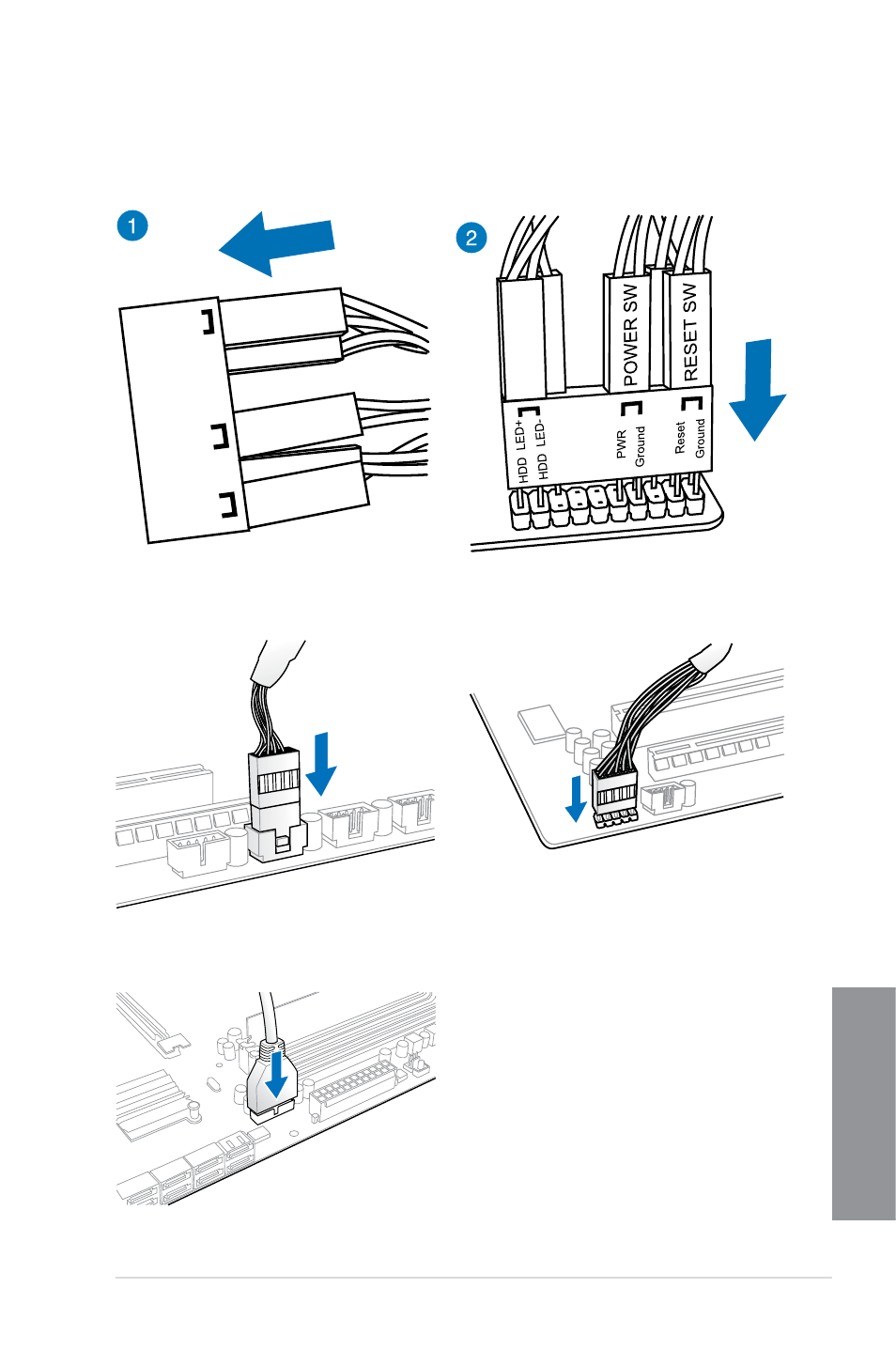

Front I/O Connector
To install ASUS Q-Connector
USB 2.0
AAFP
To install USB 2.0 connector
To install front panel audio connector
USB 3.0
To install USB 3.0 connector
HDD LED
POWER SW
RESET SW
HDD LED-
HDD LED+
PWR
Reset
Ground
Ground
HDD LED
