Troubleshooting guide, 9409a, Hose clamp pliers – Astro Pneumatic 9409A Hose Clamp Pliers User Manual
Page 2: Parts breakdown, Model
Troubleshooting Guide
ISSUE
Frayed Wire or Broken Cable
RECOMMENDATION
1) Order part # 9409RK
2) Remove damaged cable assembly and
replace with new cable assembly
REPLACEMENT PART
# 9409RK
MODEL:
9409A
HOSE CLAMP PLIERS
372 Old US Highway 52 South
Mount Airy, NC 27030
1
3
4
7
8
5
9
10
6
2
11
1A

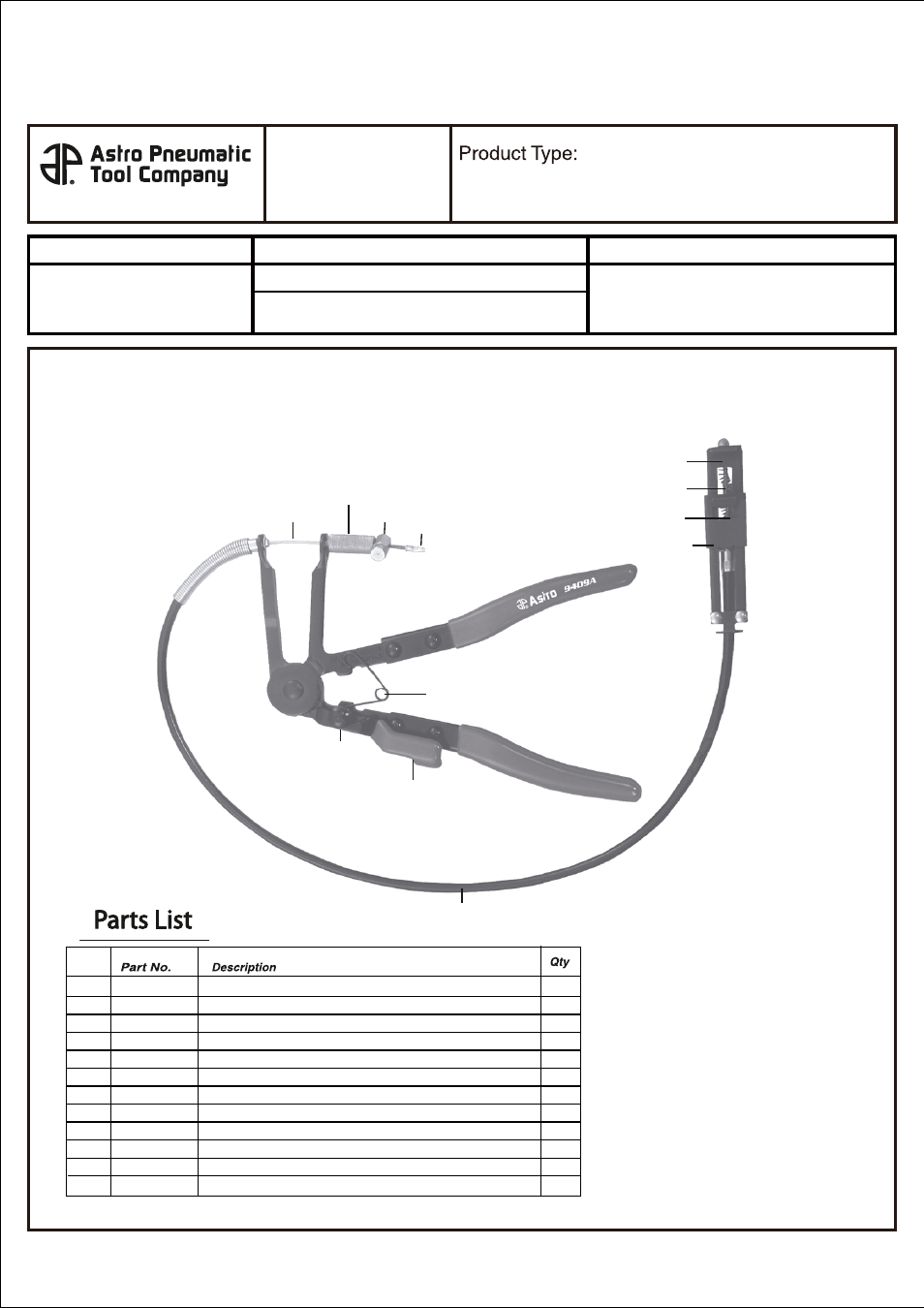

PARTS BREAKDOWN
9409A-01
9409A-01A
9409A-02
9409A-03
9409A-04
9409A-05
9409A-06
9409A-07
9409A-08
9409A-09
9409A-10
9409A-11
Wire Connector (A)
Stopper
Adjuster
Wire Assembly (includes index no. 1, 1A, 3, and 7)
Handle Clip
Lever Screw
Lever
Wire connector (B)
Spring
Retaining Ring
Holder
Wire Sheath
1
1
1
1
1
1
1
1
1
1
1
1
1
01A
2
3
4
5
6
7
8
9
10
11
Index
No.
*9409HKA is also available for purchase which
includes index #’s 1, 4, 5 and 6.
*9409RK is also available for purchase which
includes index #’s 1, 1A, 3, 7, 8, 9, 10 and 11.
