Color Select Supplies air to all color select switches
Off No air flow
Air Supplies air to air push valve
Sol Supplies air to solvent flush valve
Color - Off Off position for individual color select valves (activates next valve)
Color - 1 - 15 Supplies air to color valves
Color Select System Function Description
CL1 - CL15 Activation air for color valves 1 thru 5
CS2 Supply air for secondary color select box
HV6 High voltage on signal air (to HV6 on pneumatic control panel)
MA1 Activation air for air push valve
MS1 Activation air for solvent flush valve
501 Main supply air
Color Select System Output Description

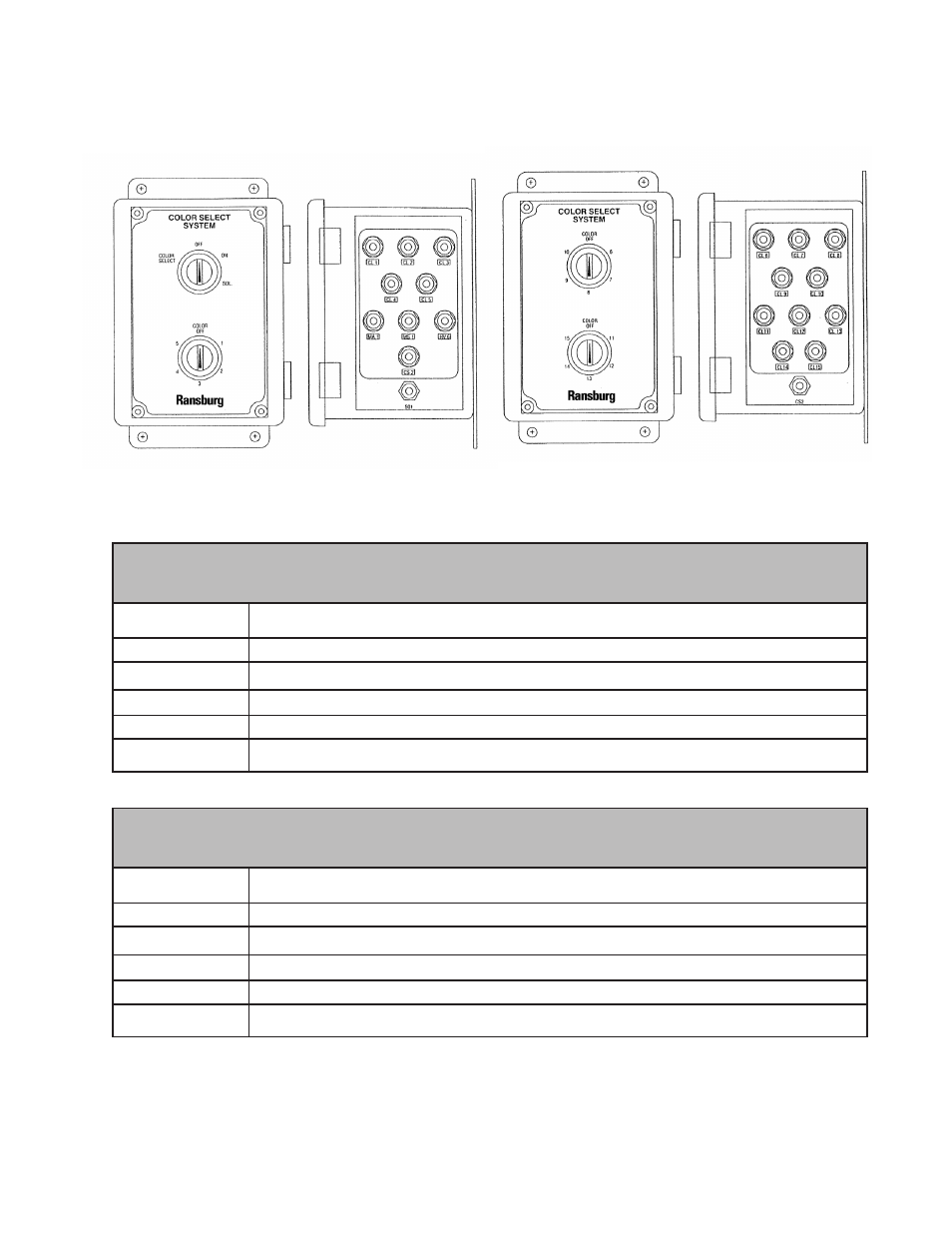

Figure 2: Color Select Boxes
Main Box
Seconadry Box
Color Select System - Introduction
