American Aldes DHV-150H User Manual
Page 16
16
SERVICE PARTS LIST: DHV-150H Indoor Air Quality System
ITEM
PART NO.
QTY.
DESCRIPTION
1
AL98996
1
Air Filter, Pleated Cloth
2
4017777
2
Capillary Tube, .059" X .124" X 32.00" (not shown)
3
4023645
1
Compressor Service Kit, Carlyle (EBA120111A)
(Includes Compressor, Capacitor & Overload)
4
4022595
1
Compressor Overload (EBA120111A) (not shown)
5
4022484
1
Compressor Relay, SPST, 24 Vac, 30A
6
4022740
1
Compressor Run Capacitor, 30 MFD
7
4022563
1
Condenser Coil
8
4021470
1
Defrost Thermostat,
4021648
1
Defrost Thermostat Mounting Clip, (item 8) (not shown)
9
4022563
1
Evaporator Coil
10
4024270
1
Fan
11
4020924
1
Fan Relay, SPDT, 24 Vac, 15A
12
4024360
1
Fan Run Capacitor, 16MFD
13
4022593
1
Filter/Drier
14
4021626
1
Hose, Drain Pan, .56” ID x 8'
15
4023875
1
Inlet Collar, 10” Galvanized Steel
16
4023928
1
Inlet Collar, 6” Galvanized Steel with Damper
17
4022219
1
Low Pressure Control
18
4020623
1
Outlet Collar, 10” Galvanized Steel
19
4022487
1
Transformer, 120/24 Vac, 40 VA
20
4024359
1
Wiring Diagram (on Cover) (not shown)

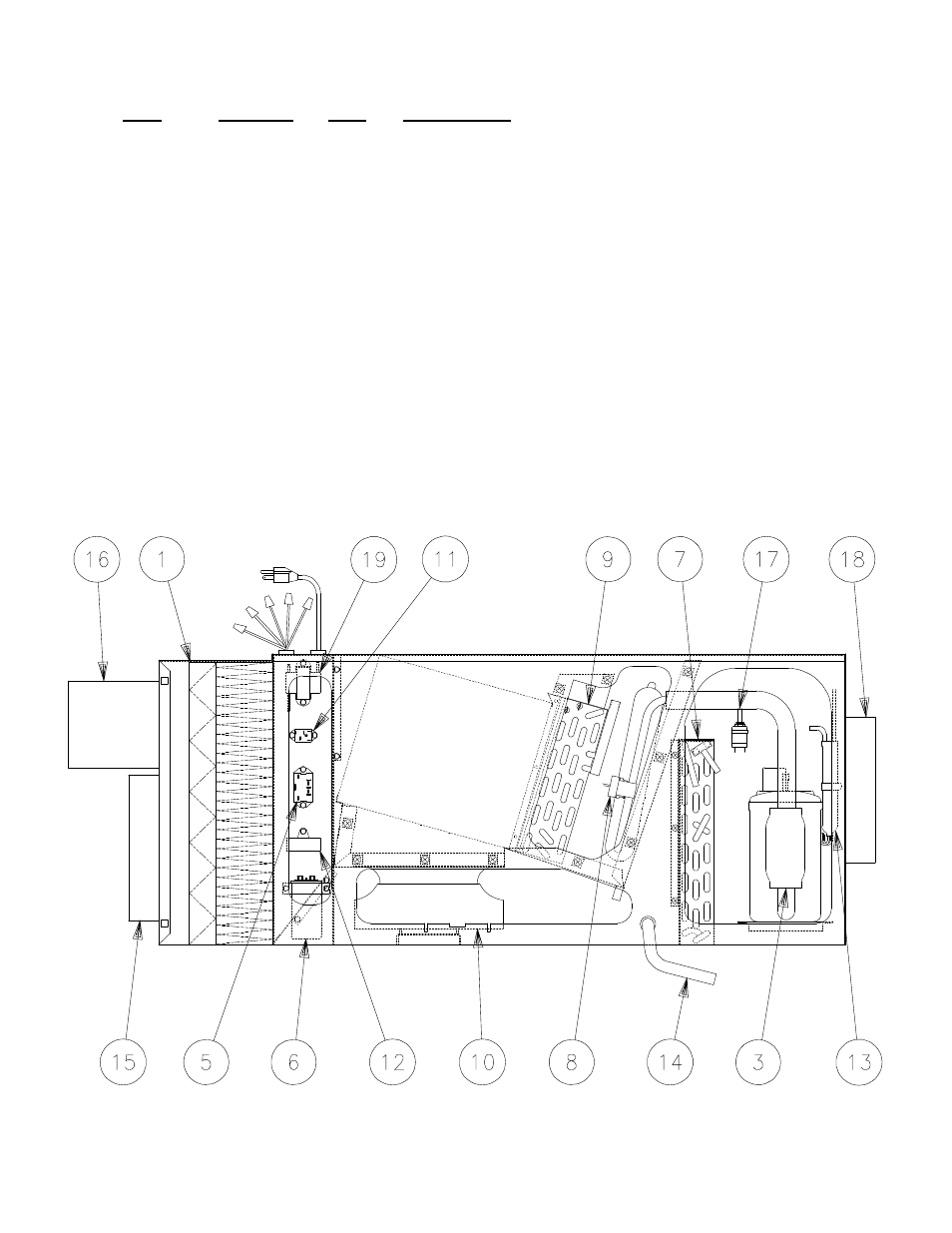

Figure 6: The DHV-150H
