Gateway Hardware 3
Section 1: Gateway Hardware

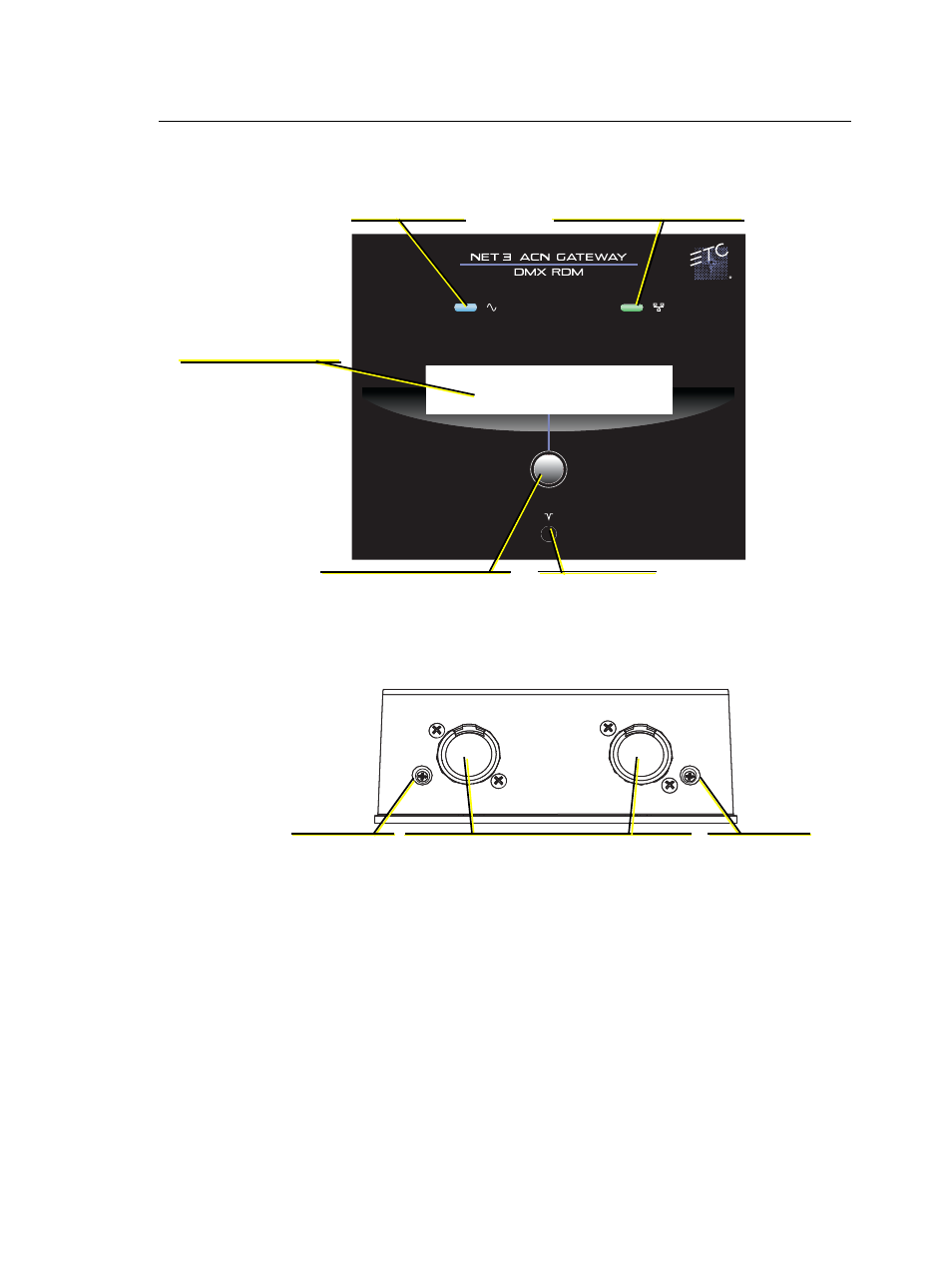

Front Panel Layout
Gateway Bottom View
Data & Power Connections
The Net3 Two Port Gateway is powered by either PoE (Power Over Ethernet 802.3af) or
via an external dc power supply.
The external power supply connects via a 2-pin header provided on the rear PCB. The
gateway accepts between 8 and 28Vdc via this input.
The Ethernet network connection is via an RJ45 jack on the rear PCB and supports PoE,
auto-sensing, auto-negotiation 10/100Mbps data speeds.
Though not advised to connect power via both PoE and the external dc input at the same
time, the gateway will function normally and use the power from the external dc input
instead of from PoE.
Reset button to hard
reboot the Gateway
(this button is recessed)
The LCD button activates the backlight
(depending on the mode) as well as
advances through display pages
LCD display. The exact content
changes by mode and software
version but generally contains
information about status,
configuration and the software that
is currently active in the Gateway
Green LED
• On indicates network connection
• Flashing indicates network activity
Blue LED
• On indicates power
Available with a pair of DMX Out (XLR Fem) connectors or a
pair of DMX In (XLR Male) connectors
Screw to secure or
remove Two Port
Gateway from it’s
mounting plate
Port #1 Port #2
View: Looking up at the bottom of the Two Port Gateway
Screw to secure or
remove Two Port
Gateway from it’s
mounting plate
