Peel-off Force
165° TO 180°
TOP COVER TAPE
BASE TAPE
The force for peeling off cover tape is 10 to 70 grams in the arrow direction.

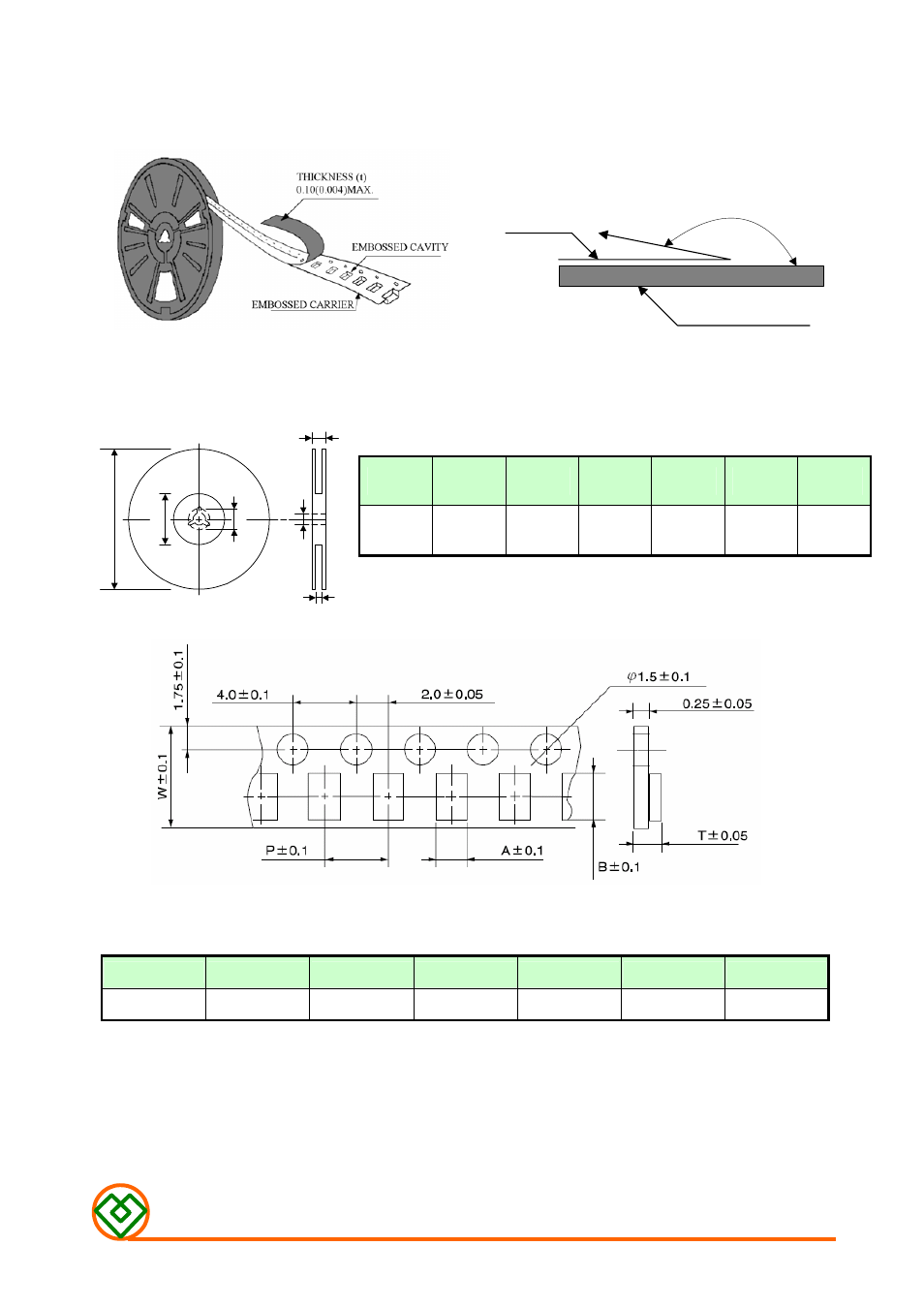

z Dimension (Unit: mm)
C
D
A
E
B
F
TYPE
SIZE
A
B
W
P
T
MMD 05CZ 4.9
5.3
12
8
3.4
TYPE
A
B
C
D
E
F
330 mm
330±2
100±1
20±0.5
13 ±1.0
16 ±0.5
20 ±2
