Channel Plus H838HHR - Manual (Page 2)

multiplex
technology, inc.
®
* * *
3001 Enterprise Street, Brea, CA 92821-6213, U.S.A.
714-996-4100 800-999-5225 FAX 714-996-4900 www.channelplus.com
TM
ChannelPlus
3x 8V ideoHubs
H838HHR& H838BID
Warranty
Multiplex Technology, Inc. warrants this product to be free from defects in materials and workmanship
for a period of one year from the date of purchase or MTI will repair, or at its option, replace the
defective product. To obtain warranty service, call MTI for a return material authorization (RMA)
number and return the product prepaid to Multiplex Technology, Inc., 3001 Enterprise Street, Brea, CA
92821, Attention: Customer Service. Please put the RMA number on the outside of the carton.
Any implied warranty arising from the sale of the product including implied warranties of
merchantability and fitness for purpose are limited to the warranty stated above. MTI shall not be
responsible for losses or damages or expenses, whether direct, consequential or incidental arising
from the use of or the inability to use this product. Some states do not allow limitations on how long the
implied warranty lasts or the exclusion or limitation or incidental or consequential damages, so the
above limitations and exclusions may not apply to you. This warranty gives you specific legal rights,
and you may have other rights which may vary from state to state.

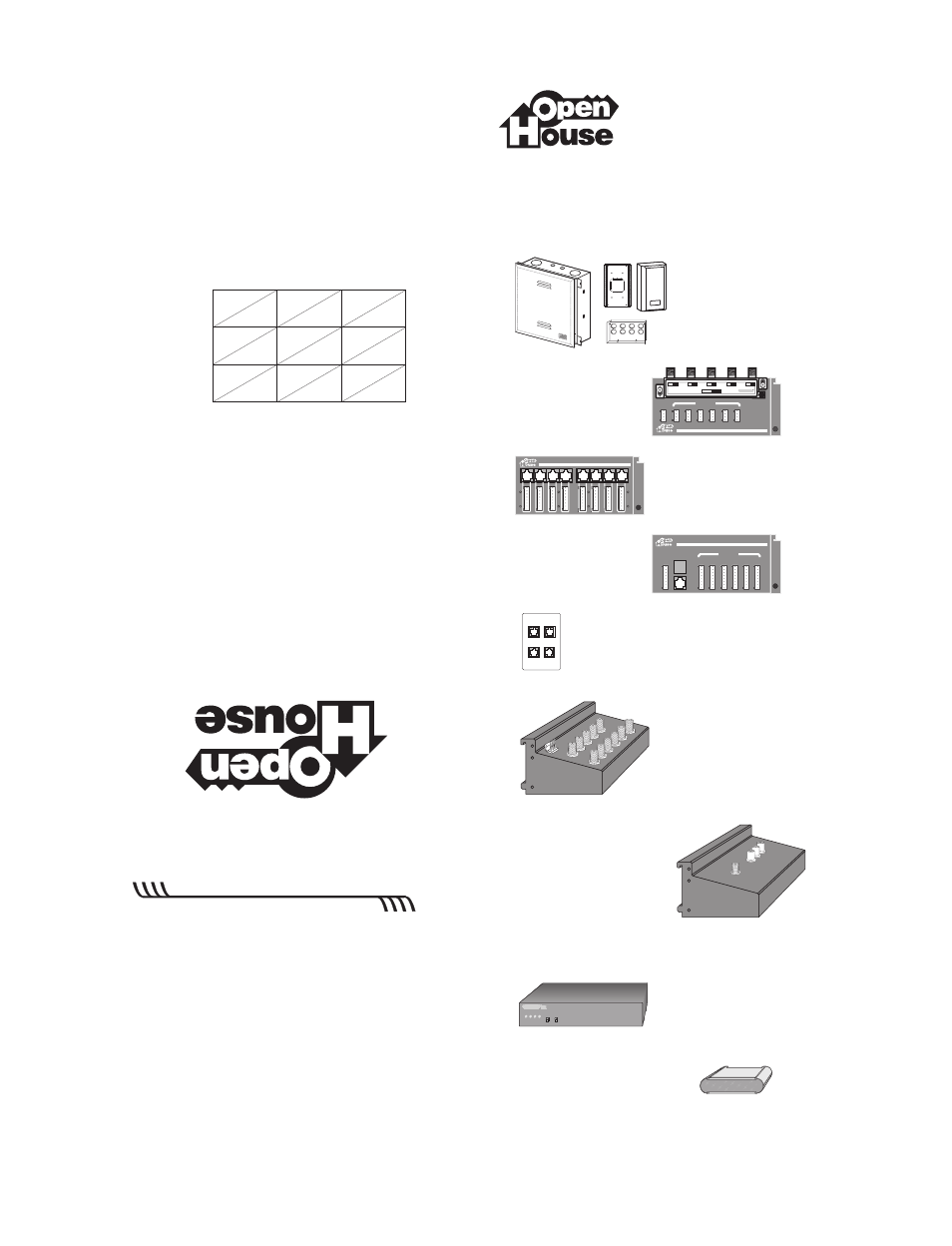

ChannelPlus Enclosures, Modules,
Accessories & Wall Plates
ChannelPlus model H628
Data Hub (8 cables, TIA-568A) Category 5 Compliant
OUT IN
532-230 5MHz to 1000MHz
OUT IN OUT IN OUT IN OUT IN
SPLITTER COMBINER R
Telephones From Telco
ChannelPlus model H801 Combo Hub (2 lines x 6 phones, 1input x 4 televisions)
R T 2
R T 1
ChannelPlus model H616
Telephone Master Hub (4 lines x 6 phones)
Telephones From Telco
RJ31X
Out
Expansion Ports
R T 4
R T 3
R T 2
R T 1
Starter systems
RF splitters and telephone punch
downs. When it is time to upgrade,
just snap this module out and
replace with one of more of the
more sophisticated units.
Data hubs
Termination blocks for the CAT-5 cables,
Ethernet hubs. Bring the Internet to any
room in the home. Or create a home data
network.
Telephone hubs
Connections for 1-4 phone lines to
every room. Starter hub adds RJ-
31X jack for security system dialer.
Coax panels
Distribute antenna or cable TV to every
room of the house. Some models include
bi-directional amplifiers for interactive cable
systems. Some models include
IR engines.
modulator
inputs and
AV modulators
(for service center)
Create a new TV channel for a front
door camera. Some models feature
Cat-5 input connections.
TM
Compatible
Service center
enclosures
A full line of OpenHouse compatible
enclosures, from simple, inexpensive
mounting plates to high capacity in-wall
cabinets. AC outlets can be mounted
inside the cabinets using a UL listed
accessory.
AV modulators
(for media center)
Create new TV channels for DVD, VCR,
or a satellite receiver. These modulators
sit in the media center. Some offer true
MTS stereo.
® model 5445 quad digital modulator
pll frequency control D C B A
program select
Wall plates
Wall plate systems for all rooms. The typical room gets TV
and telephone. The Home office wall plate adds data ports.
The media center wall plate adds satellite feeds.
IR Accessories
Control video devices from any room.
New ChannelPlus products are added all the time.
Visit our website to learn more: www.channelplus.com
Wiring ahouse forOpenHouse
Typical Room MediaCenter HomeOf fice
Good
Better
Best
1Cat-5
1RG-6
1Cat-5
3RG-6
1Cat-5
2RG-6
2Cat-5
1RG-6
2Cat-5
2RG-6
2Cat-5
3RG-6
3Cat-5
3RG-6
2Cat-5
2RG-6
3Cat-5
3RG-6
Good...
Typical room- phone,TV
Mediacenter - phone,satellite receiver,A Vmodulators
Homeof fice- phone,TV ,
Better…
Typical room- phone,TV ,ethernet
Mediacenter - phone,TV , satellitereceiver ,A Vmodulators
Homeof fice-
Best…
cablemodem
ethernet,
phone,TV ,ethernet, cablemodem
Typical room- phone,TV ,ethernet, satellitereceiver
Mediacenter - phone,TV ,ethernet, satellitereceiver ,A Vmodulators, hi-speeddata
Homeof fice- phone,TV ,ethernet, satellitereceiver ,cable modem,hi-speed data
Thec ablesin anOpenHouse run fromthe various roomso fthe house
directlyto thes ervicecenter location.(Thisis known as ‘home run’
wiring.)T wotypes ofwire areu sedfor communicationand
entertainment:C at-5,4 -UTP(4 nshielded wisted airs) wirehandles
datao r1 to 4telephone lines.RG-6 coax handlestelevision (antennaor
cable),s atellitedish, cablem odem,o rA Vm odulatorsignals. (AnA V
modulatorcreates newT Vc hannelsfor frontdoor camera,D VDplayer ,a
VCRo ra satellite receiver .)
We recommendthe following pre-wire schemes. Run thesewires from
thes ervicecenter tothe rooms indicated.
U T P
