I
nstallation
Optional Equipment Connections
VCRs, video disc players, video game equipment, and DSS equipment can also be connected
to the video inputs. See the optional equipment manual for details.

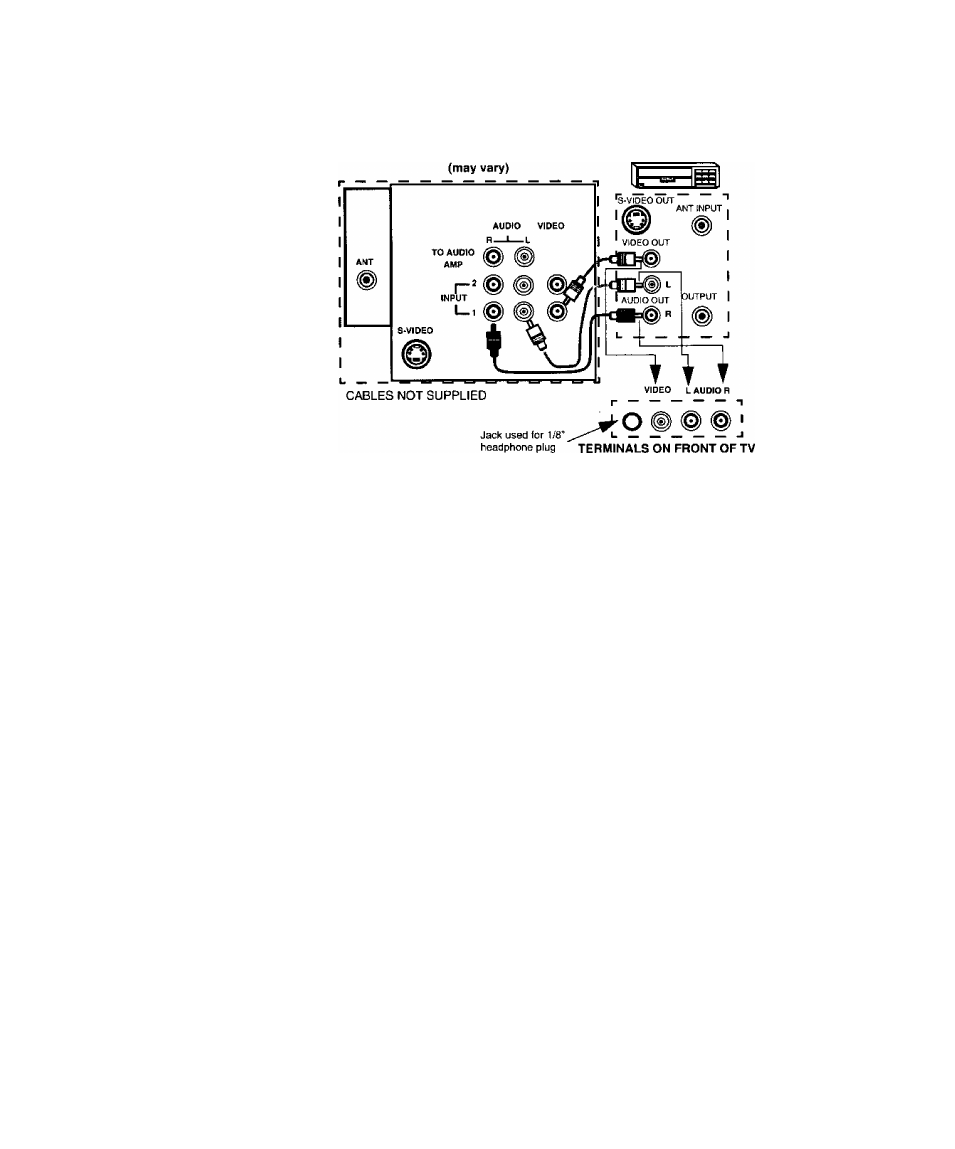

TERMINALS ON BACK OF TV
VCR
Procedure
1
. Connect equipment as shown to front or rear AudioA/ideo input jacks.
Note:
Front and rear AudioA/ideo connectors cannot be operated at the same time.
2. Select the Video mode by pressing TV/VIDEO button.
3. Operate optional equipment as instructed in equipment manual.
Note:
If S-VIDEO and VIDEO input are used at the same time, two images will
appear on the TV screen.
TO AUDIO AMPlifier
Connect to an external audio amplifier input for listening to a stereo system.
Note:
TO AUDIO AMP terminals cannot be connected directly to external speakers.
Audio Adjustments
1. Select TV SPEAKERS ON from AUDIO menu.
2. Set amplifier volume to minimum.
3. Adjust TV volume to desired level.
4. Adjust amplifier volume to match the TV.
5. Select TV SPEAKERS OFF&VAO from AUDIO menu.
6. Volume, mute, bass, treble and balance are now controlled from the TV.
Note:
In OFF&FAO the volume is controlled by the external amplifier.
