Model NB0050
2
Operating Instructions
Warning Continued
● Never place
your hand or
any part of
your body in
the nail dis-
charge area of
the nailer. It is
possible for the
nailer to eject a fastener and could
result in death or serious personal
injury.
● Never carry the
nailer by the air
hose or pull the
hose to move
the nailer or a
compressor.
Keep hoses
away from heat, oil and sharp
edges. Replace any hose that is dam-
aged, weak or worn. Personal injury
or tool damage could occur.
● Always assume the nailer contains
nails. Never use the nailer as a toy.
Do not engage in horseplay. Always
keep others at a safe distance from
the work area in case of accidental
discharge of nails. Never point the
nailer at anyone. Accidental trigger-
ing of the nailer could result in
death or serious personal injury.
● Do not drive a
nail on top of
other nails. The
nail could
glance and
cause death or
a serious punc-
ture wound.
● Do not operate
or allow anyone
else to operate
the nailer if any
warnings or
warning labels
are not legible.
Warnings or
warning labels are located on the
nailer magazine and body.
● Never leave the nailer unattended or
connected to an air compressor when
not in use. Serious personal injury
can occur if someone picks up and
uses the nailer without knowing the
correct way to operate the nailer.
● Do not drop or throw the tool.
Dropping or throwing the tool can
result in damage that will make the
tool unusable or unsafe. If the tool
has been dropped or thrown, exam-
ine the tool closely for bent, cracked
or broken parts and air leaks. STOP
and repair before using or serious
injury could occur.
Caution indicates a
potentially haz-
ardous situation which, if not avoided,
MAY result in minor or moderate injury.
● Do not modify or alter the nailer or
any nailer parts. Do not use the nailer
if any shields or guards are removed
or altered. Do not use the nailer as a
hammer. Serious personal injury may
occur.
● Avoid long extended periods of
work with the nailer. The nailer can
harm the user’s hands or arm. Stop
using the nailer if pain occurs.
● Always check
the work con-
tact element
(WCE) trip
mechanism of
the nailer. A
nail could acci-
dentally be dri-
ven if the trig-
gering mechanism is not working
properly. Serious personal injury
may occur.
● Disconnect air supply and release
tension from the pusher before
attempting to clear jams because
fasteners can be ejected from the
front of the nailer. Personal injury
may occur.
Notice indicates
important informa-
tion, that if not followed, may cause
damage to equipment.
● Avoid using the nailer when there
are no nails in the magazine.
Accelerated wear on the nailer may
occur.
● Clean and check all air supply hoses
and fittings before connecting the
nailer to compressor. Replace any
damaged or worn hoses or fittings.
Tool performance or durability may
be reduced.
● Air compressors providing air to the
nailer should follow the require-
ments established by the American
National Standards Institute
Standard B19.3-1991; Safety
Standard for Compressors for
Process Industries. Contact your air
compressor manufacturer for infor-
mation.
! NOTICE
Table Of Contents
General Safety . . . . . . . . . . . . . . . .1
Specifications . . . . . . . . . . . . . . . .2
Using The Nailer . . . . . . . . . . . . . .3
Operational Modes . . . . . . . . . . . .3
Operating The Nailer . . . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . .6
Warranty . . . . . . . . . . . . . . . . . . . .7
! WARNING
Quick Clear Latch
Rubber
No-Mar Tip
Nail Discharge Area
Pin (Single Cycle)
Trigger
Nail Loading Area
Magazine
Nail Pusher
Release Catch
Adjustable Direction
Exhaust Deflector
• REQUIRES: 1.5 SCFM with 10 nails
per minute @ 90 PSI
• AIR INLET: 1/4” NPT
• NAIL SIZE RANGE: 3/4” to 2”
• MAGAZINE CAPACITY:
100 Nails per load, 16 gauge
• WEIGHT: 4 lbs., 13 oz.
• LENGTH: 11-1/2”
• HEIGHT: 11-1/2”
• MAXIMUM PRESSURE: 110 PSI
• PRESSURE RANGE: 70 - 110 PSI

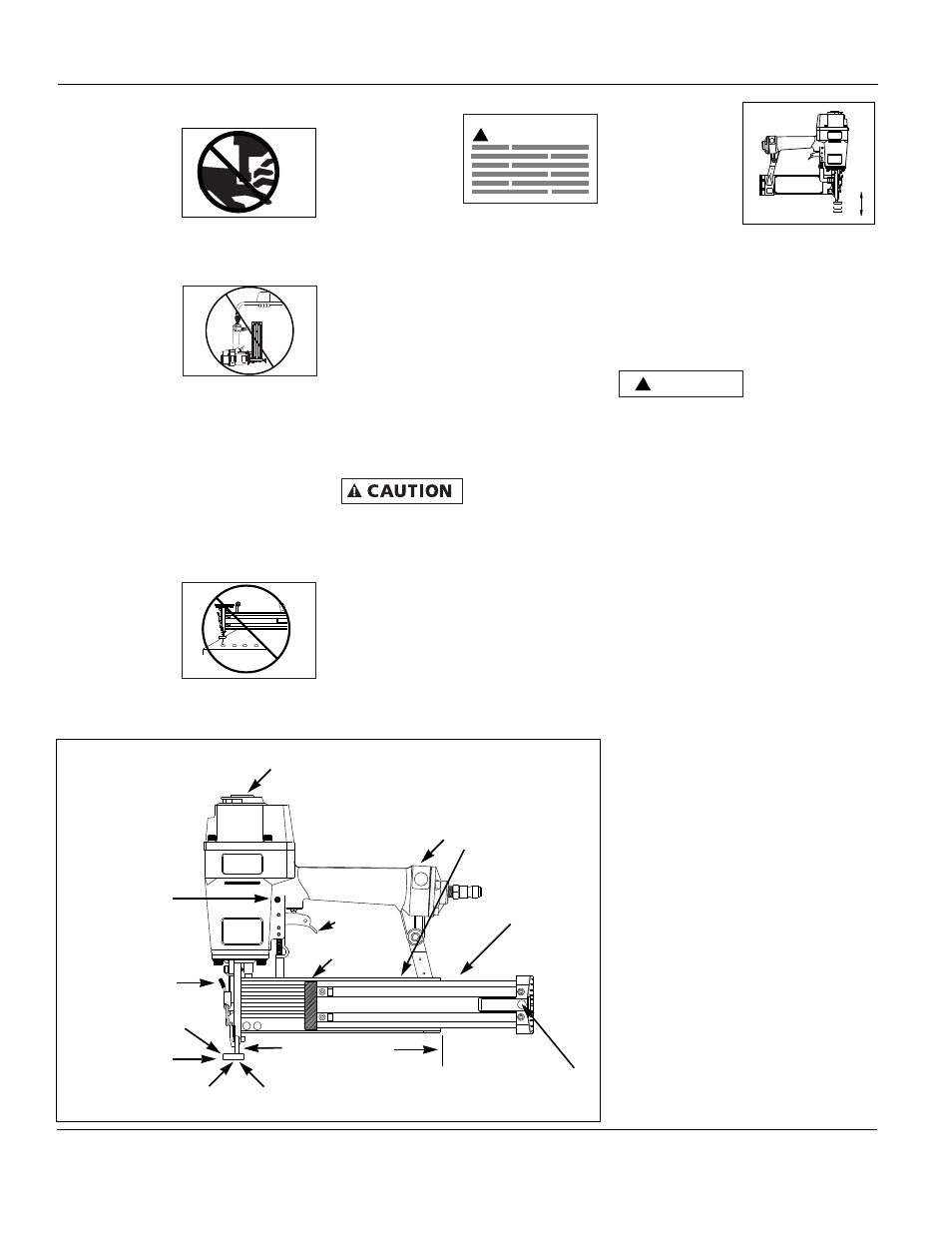

Nailer Components And Specifications
Work Contact
Element (WCE)
Warning Labels
