19
7.3 Roll Sensor Mounting Guidelines: Center Pivot Booms
1. When mounting the roll sensors, mount the lowest serial number on the boom frame and
the highest serial number on the chassis (non-pivoting portion of the sprayer). For optimal
performance, minimize the distance between the roll sensors (A) and minimize the height
from each roll sensor to the pivot point (B).

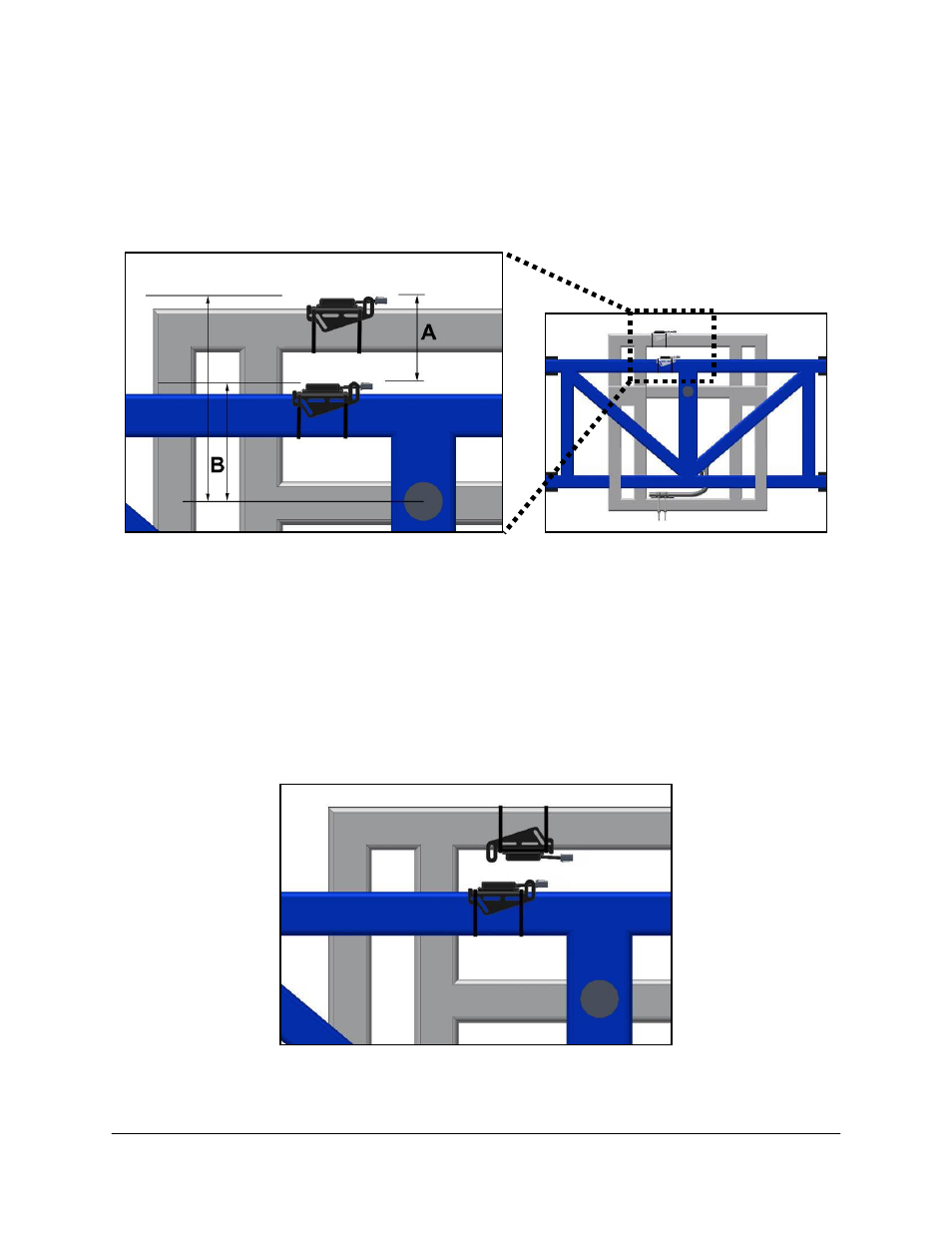

Figure 19: Roll Sensor Mounting on a Center Pivot Suspended Boom
2. Ensure the roll sensors are relatively level when the sprayer boom and chassis are level.
3. Both roll sensor cables should be pointing towards the right hand wing of the sprayer.
4. Ensure both roll sensors are mounted adequately and that the cables provide enough slack
to allow sufficient boom roll.
5. The chassis roll sensor can also be mounted inverted to minimize the distance between the
roll sensors (Figure 20).
Figure 20: Inverted Chassis Roll Sensor Mounting on a Center Pivot Suspended Boom
