4-3. Do-it-yourself maintenance

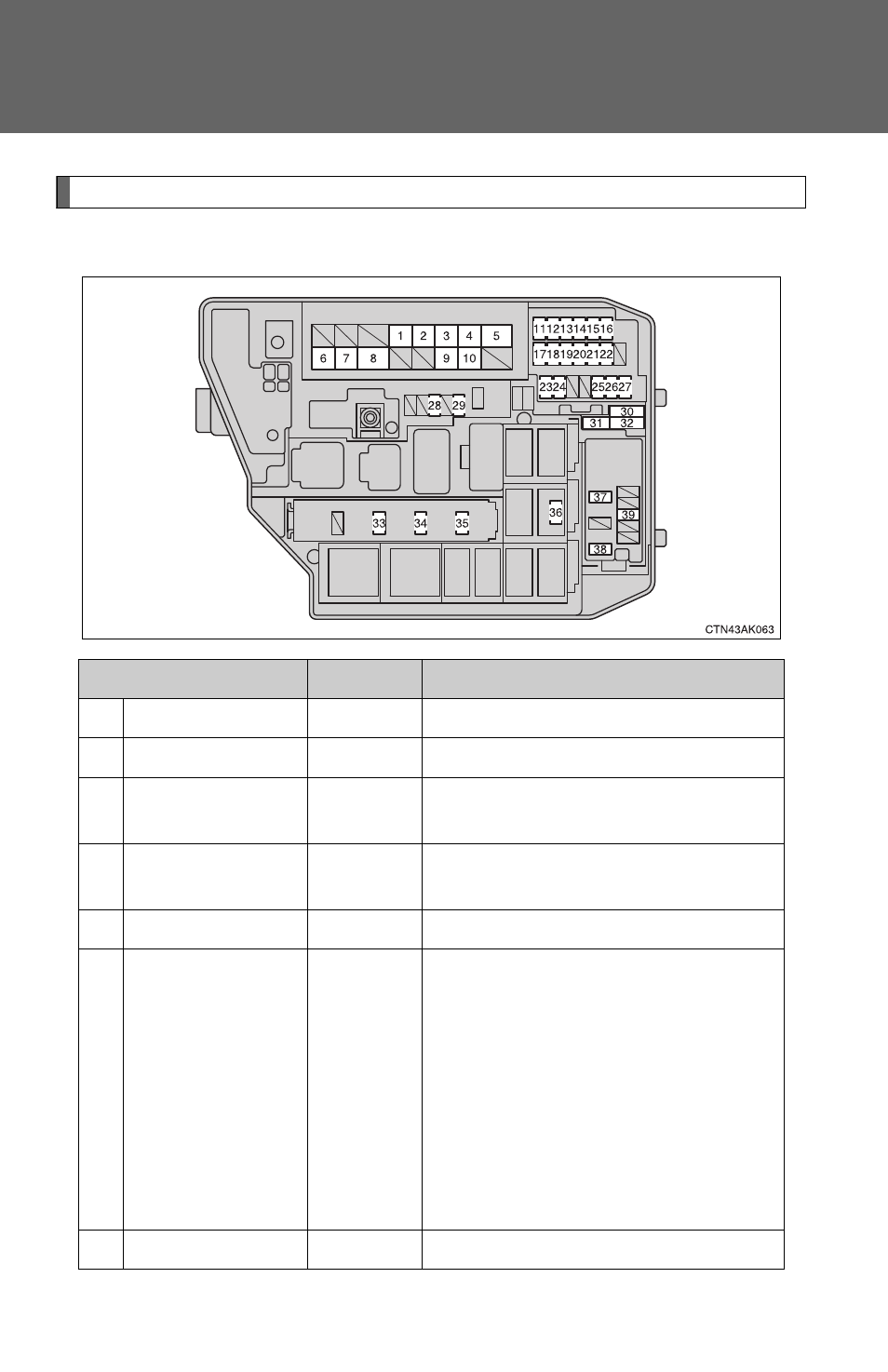

Fuse layout and amperage ratings
■
Engine compartment
Fuse
Ampere
Circuit
1
CDS FAN
30 A
Electric cooling fan(s)
2
RDI FAN
40 A
Electric cooling fan(s)
3
ABS NO. 3
30 A
Anti-lock brake system, vehicle sta-
bility control system
4
ABS NO. 1
50 A
Anti-lock brake system, vehicle sta-
bility control system
5
HTR
50 A
Air conditioning system
6
ALT
120 A
Charging system, RDI FAN, CDS
FAN, ABS NO. 1, ABS NO. 3, HTR,
HTR SUB NO. 1, HTR SUB NO. 3,
ACC, CIG, ECU-IG NO. 2, HTR-IG,
WIPER, WASHER, ECU-IG NO. 1,
AM1, DOOR, STOP, FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, FR FOG, DEF, MIR
HTR, TAIL, PANEL, POWER OUT-
LET, PWR SEAT, SUNROOF
7
EPS
60 A
Electric power steering
