Fuses and circuits, Fuse panel located in the passenger compartment – Subaru 2009 Legacy User Manual
Page 415
Advertising
Black plate (426,1)
北米Model "A2450BE-A" EDITED: 2008/ 3/ 24
12-6
Specifications
Fuses and circuits

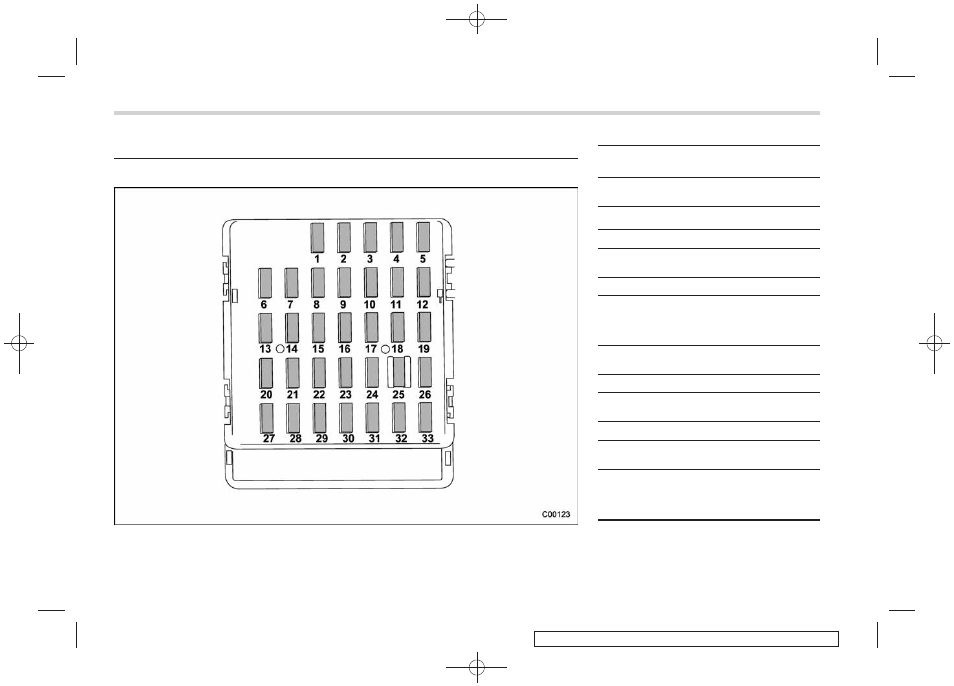

& Fuse panel located in the passenger compartment
Fuse
panel
Fuse
rating
Circuit
1
20A
. Cargo fan
. Trailer hitch connector
2
Empty
3
15A
. Door locking
4
15A
. Front wiper deicer relay
. Moonroof
5
15A
. Combination meter
6
7.5A
. Remote control rear
view mirrors
. Seat heater relay
. Vanity mirror light
7
15A
. Combination meter
. Integrated unit
8
20A
. Stop light
9
20A
. Mirror heater
. Front wiper deicer
10
7.5A
. Power supply (battery)
11
7.5A
. Turn signal unit
. Clock
12
15A
. Automatic transmission
unit
. Engine control unit
. Integrated unit
