Data Link TIA/EIA-568-B
PIN Color
Function
1
W-O
TX0-
2
O
TX0+
3
W-G
TX1-
4
BL
TX1+
5
W-BL
TX2-
6
G
TX2+
7
W-BR
TXC-
8
BR
TXC+

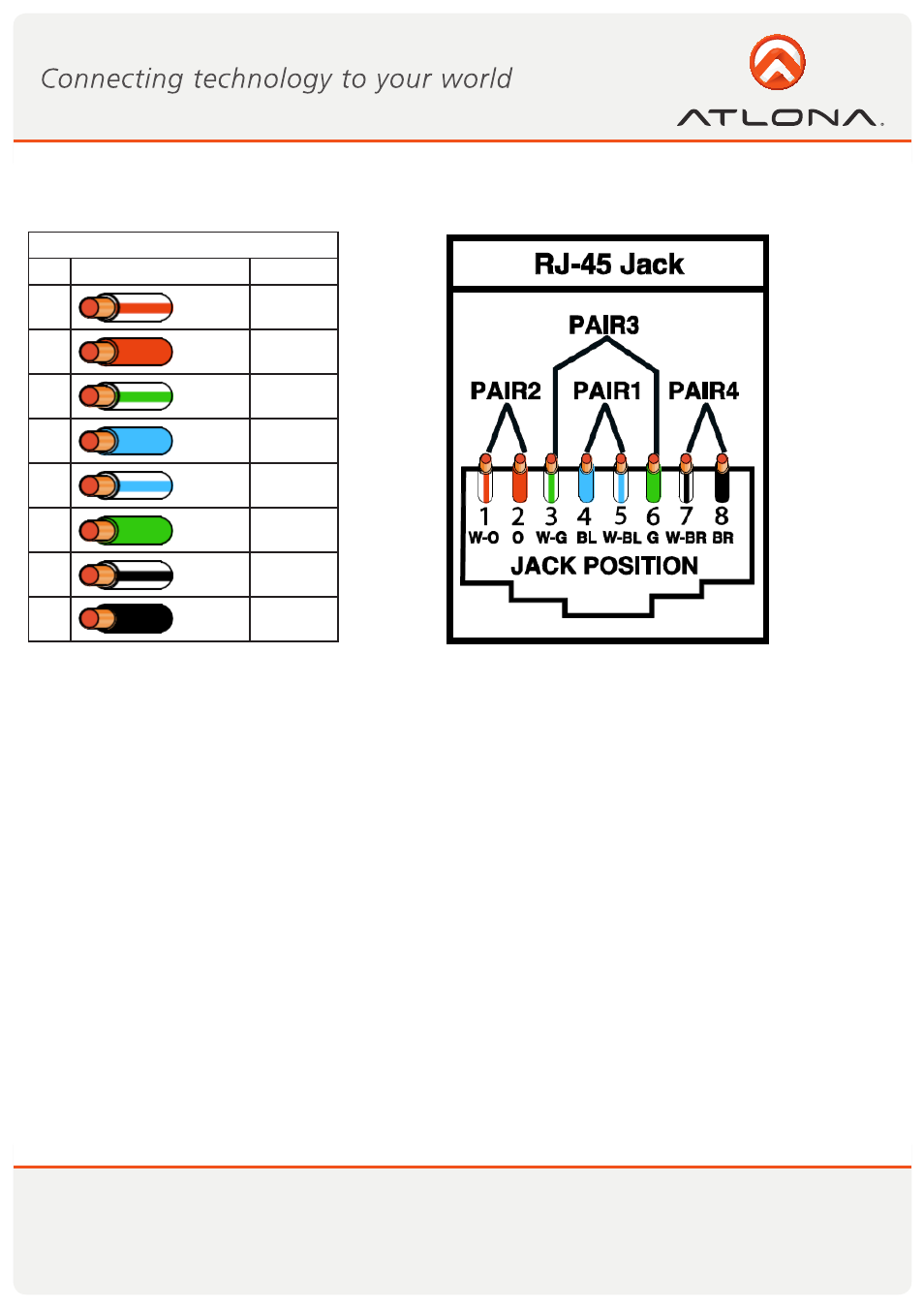

RJ45 / CAT5 REFERENCE
