Dugan-VN16 User Guide Installation
27
To complete and confirm installation:
1. Reattach the FOH Rack faceplate.
2. Reconnect the power, FOH Link, and any audio and MIDI cables to the FOH.
3. Turn on your FOH Rack.
NOTE: The Dugan-VN16 card appears as a blank panel and is not identified in the Patchbay,
even when properly installed using VENUE software version 3.0. Visit the Avid website
(www.avid.com) to check for upgrades to your VENUE software.
The Dugan-VN16 inputs and outputs are available in the FOH tab in Patchbay.
• Dugan-VN16 inputs and outputs 1–8 appear as AES 1–8.
• Dugan-VN16 inputs and outputs 9–16 appear as Analog 9–16.
Note that these patch points will appear as gray in Patchbay, however it is now
possible to patch the Dugan-VN16 to the required channels.

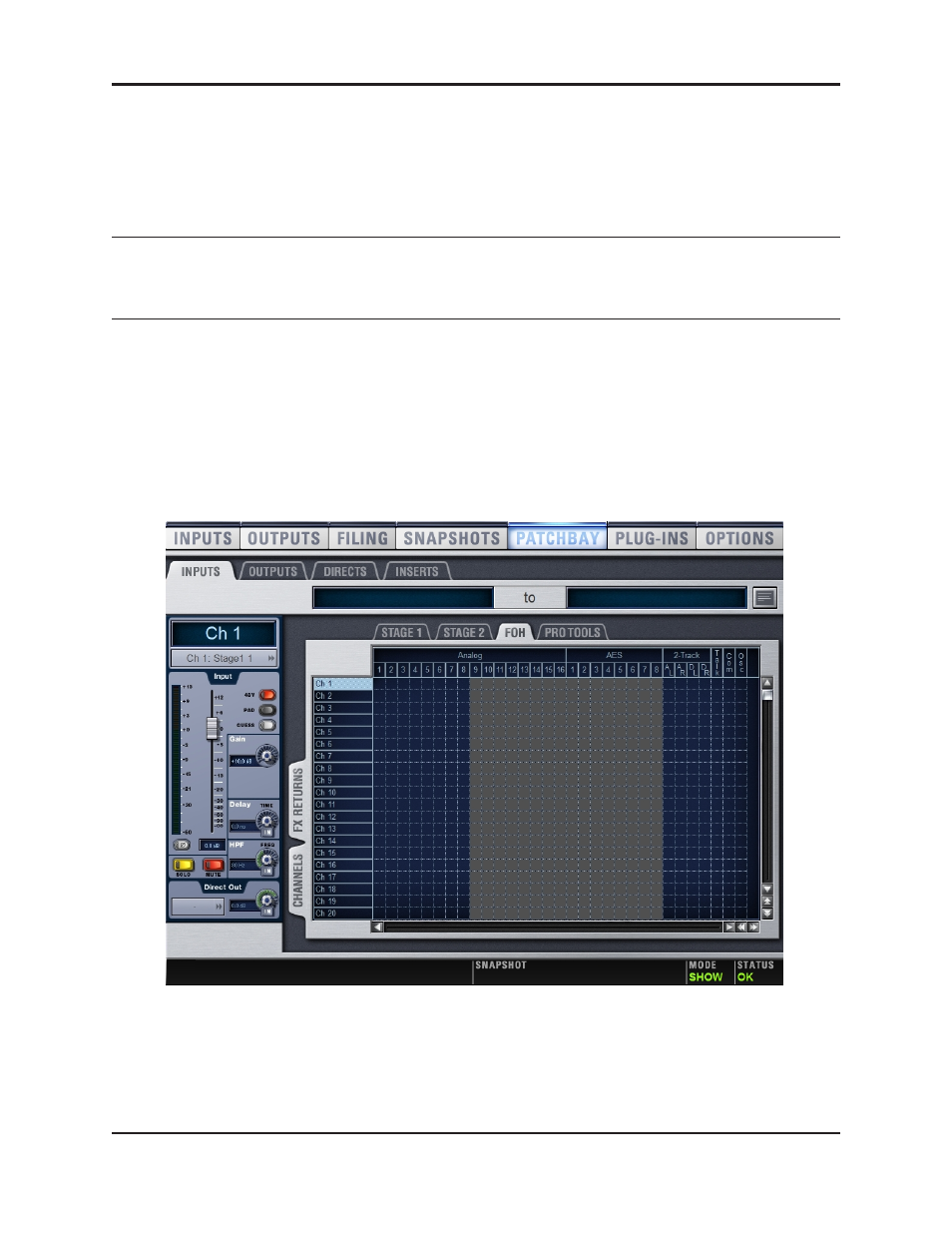

Figure 2-27 Patchbay showing installed Dugan-VN16
See Chapter 3: Configuration for instructions on patching the Dugan-VN16 to your
mic channels.
