Chapter 3: Installation and Configuration
We recommend placing the Model E-2 in a convenient place in the engineer’s line
of sight.

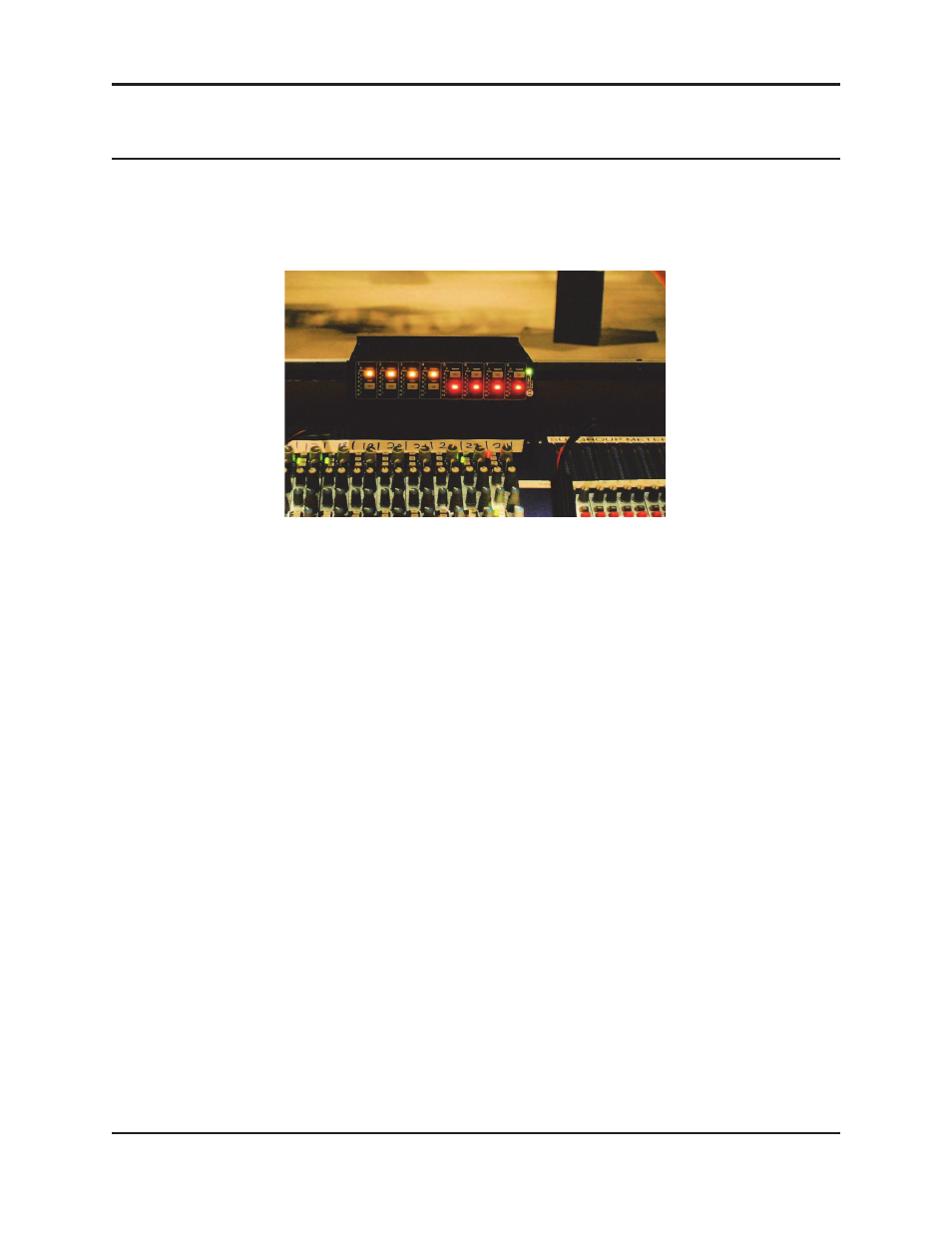

Figure 3-1 Model E-2 placed conveniently
Rack Mounting
All E-Series Dugan controllers are a half-rack wide, so one or two can be mounted in
a single rack space. Each unit ships with one long and one short rack ear and one
joining plate.
The rack ears for older E-Series Dugans differ slightly from the current design, but the
joining plates are the same. All E-Series Dugans can be mounted side-by-side using
the appropriate rack ear for each unit.
To mount one unit: Attach one long and one short rack ear, then mount in the rack.
To mount two units side-by-side:
1. For the left unit, remove the four screws from the right side of the top and bottom
lids.
2. Attach the top and bottom joining plates to the left unit.
3. For the right unit, remove the four screws from the left side of the top and bottom
lids.
4. Attach the top and bottom joining plates to the right unit.
5. Attach the appropriate rack ears to the left and right units.
6. Mount the pair in the rack.
