Chapter 3: System Setup
NDiS 163 User Manual

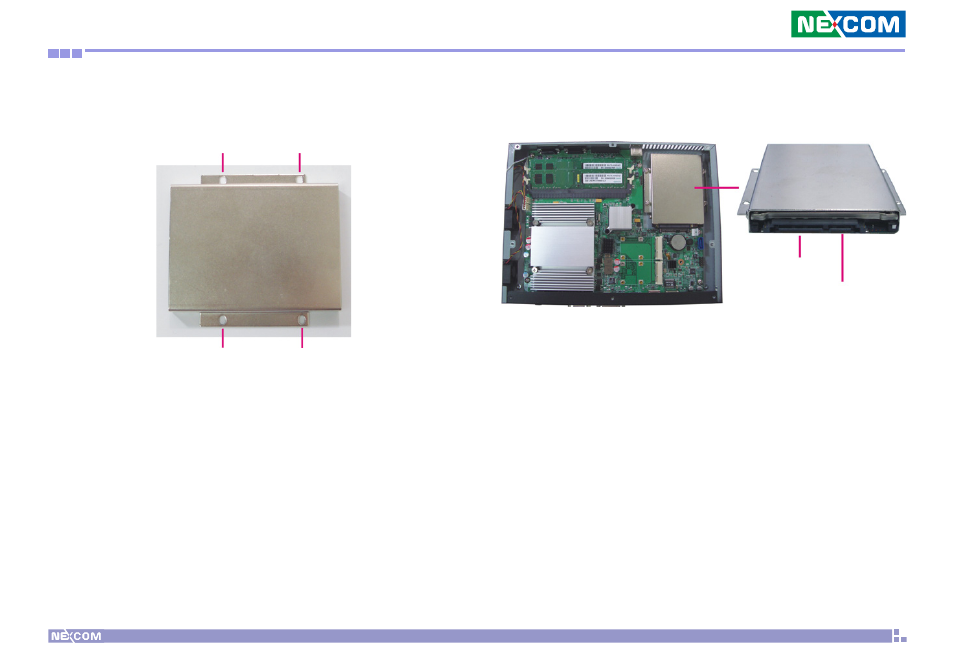

5. The mounting holes on the drive bay are used to secure the bay to the
chassis.
Mounting hole
Mounting hole
Mounting hole
Mounting hole
6. Locate for the SATA connector and the SATA power connector on the
SATA drive.
SATA connector
SATA power
connector
