OPERATING CONTROLS
AND FEATURES
1. Safety Guard: Prevents direct touch on the heat chamber, greatly reducing the possibility of
accidental contact burns to the heat chamber.
2. Heat Chamber: Permits adjustment of heat output without increasing unwanted combustion
materials or reducing combustion efficiency. This feature increases comfort and
convenience while maximizing fuel savings.
3. Wick Adjuster Knob: Used to raise and lower wick for heat output adjustment. To extinguish flame
turn knob counterclockwise.
4. Wick Life Extender: Helps maintain good wick performance.
5. Igniter Lever: Battery-powered electrical igniter is brought in contact with to ignite fuel at start-up.
NOTE: Lever should be pushed down gently.
6. Fuel Tank Cap: Covers filling port of fuel tank.
NOTE: Wipe away any spilled kerosene (paraffin) from tank after filling.
7. Fuel Gauge: Indicates fuel level in tank.
NOTE: Never fill beyond black line.
8. Manual Shutoff: Used to rapidly retract wick and extinguish flame.
NOTE: To avoid odor and smoke, do not use routinely to turn heater off. This
manual shutoff is not effective when gasoline (petrol), gasoline (petrol)-
contaminated kerosene (paraffin), or other highly flammable fuels are
used in the heater.
9. Heat Chamber Handle: Used to check and insure proper seating of the heat chamber after ignition.
lmproper seating of the heat chamber will cause erratic flame and smoke.
4

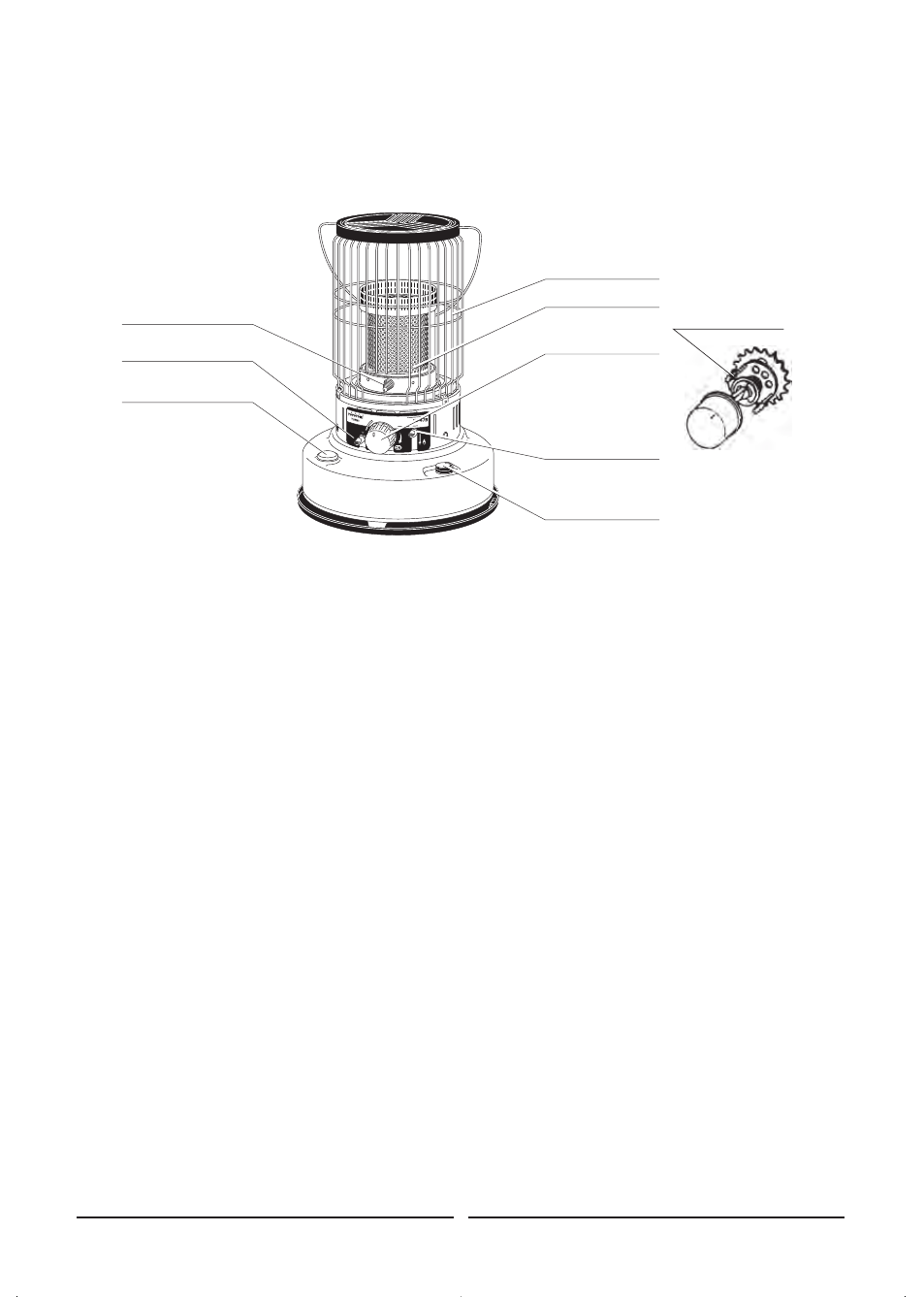

9. Heat Chamber Handle
