Connecting

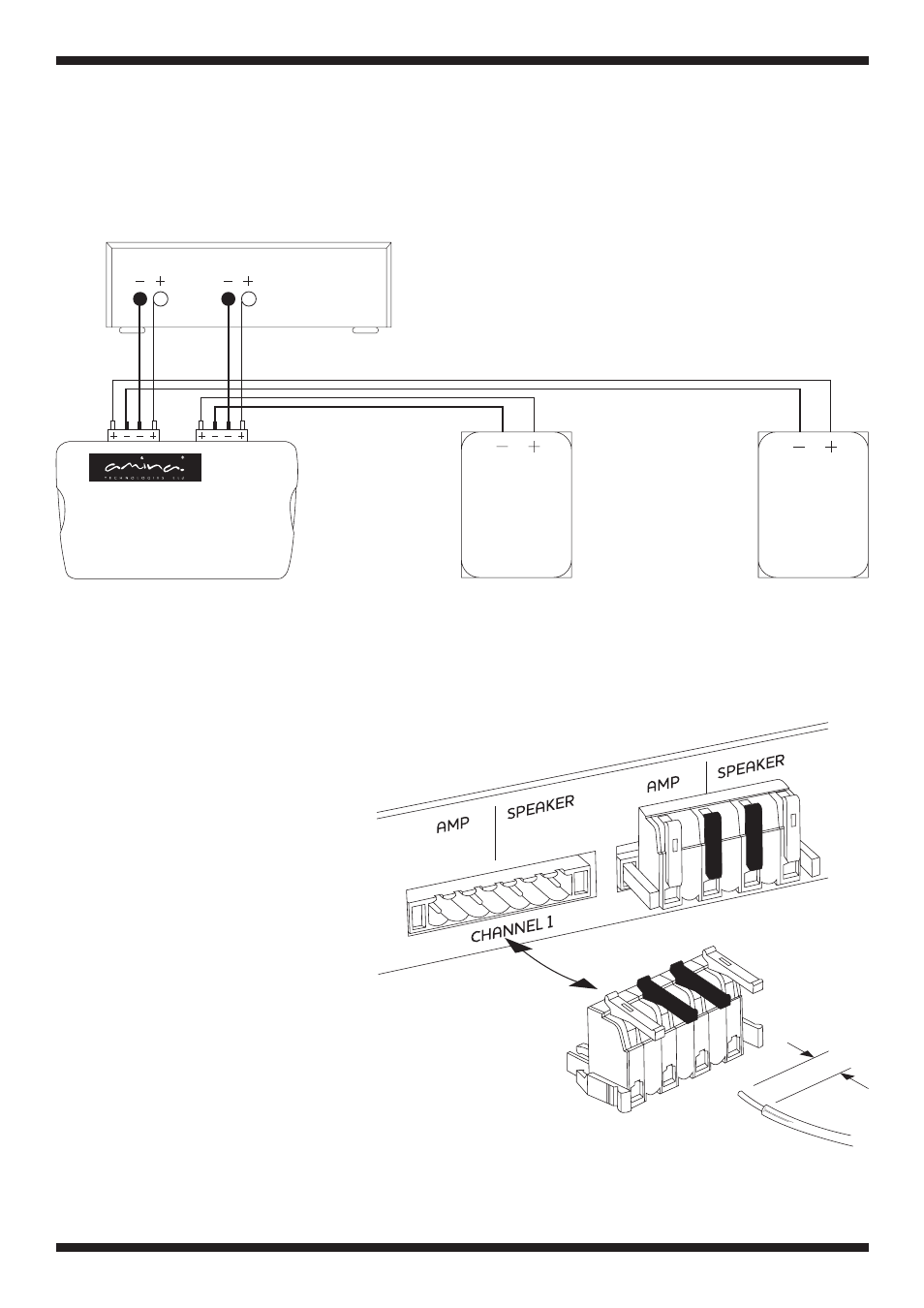

Wiring schematic
L R
Stereo
Amplifier
APU
Evolution
Series
Evolution
Series
Note:
Red levers on the Springcon® plugs are used for the “+” loudspeaker connections.
Black levers on the Springcon® plugs are used for the “-” loudspeaker connections.
Springcon® plugs connection
Note:
Ensure the cables are securely
clamped when the Springcon®
levers are closed.
To remove the plugs from the
connecting header squeeze the
two clips on either side to release.
