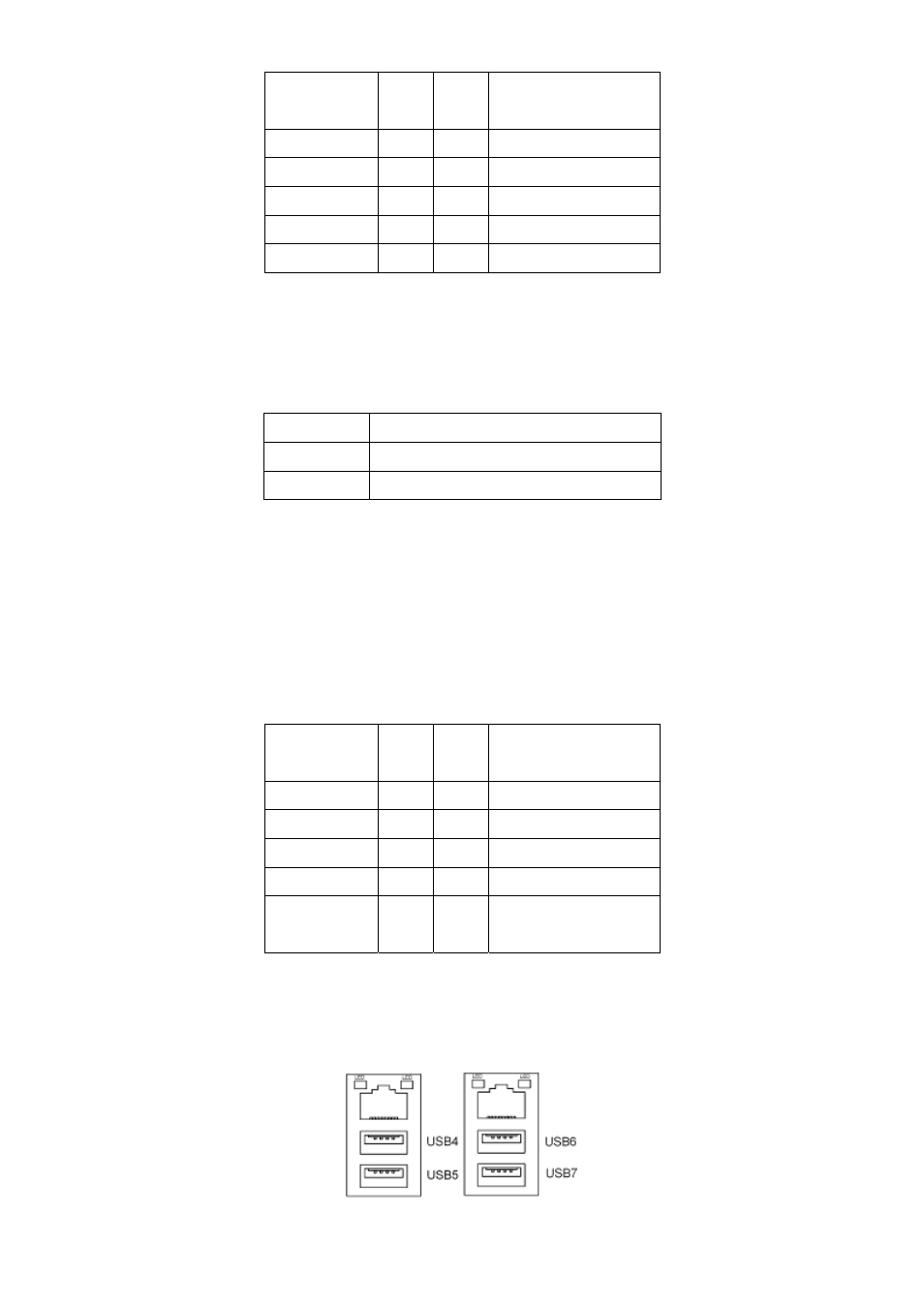

APC-3X17B User Manual

24

Signal

Name

Pin# Pin#

Signal Name

DCD 1

2

RXD

TXD 3

4

DTR

Ground 5 6

DSR

RTS 7

8

CTS

RI 9

10 NC

20. JCOM6:

(2.0mm Pitch 1x3 Pin Header) COM6 setting jumper, pin 1~3 are used to select signal
out of pin 10 of COM6 port.

JP1 Pin#

Function

Close 1-2 COM5 Pin10=+5V (default)
Close 2-3 COM5 Pin10=+12V (option)

21. COM6:

(2.0mm Pitch 2X5 Pin Header), COM6 Port, standard RS232 ports are provided. They
can be used directly via COM cable connection. COM6 port is controlled by pins
No.

1~3

of JCOM6,select output Signal 5V or 12v, For details, please refer to

description of JCOM6.

Signal
Name

Pin# Pin# Signal Name

DCD 1

2

RXD

TXD 3

4

DTR

Ground 5 6

DSR

RTS 7

8

CTS

RI 9

10 JCOM6

select Setting

22. USB4/USB5/USB6/USB7:

(Double stack USB type A), Rear USB connector, it provides up to 4 USB2.0 ports,
speed up to 480Mb/s.
