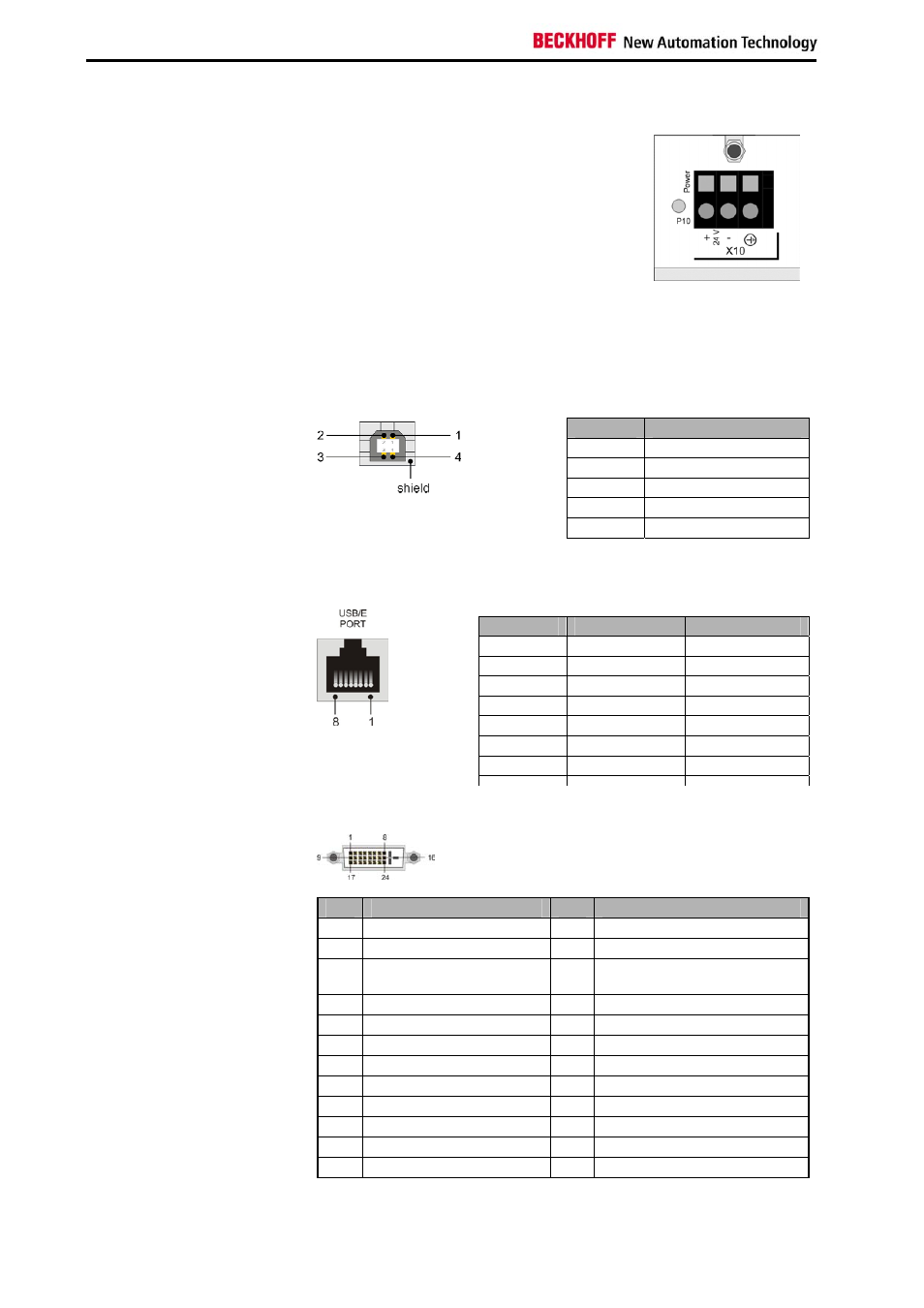

Product Description
Power supply
24 V
DC
power supply The DVI splitter CU8810 will be powered by a
24 V
DC
power supply (X10). The pins have to
be connected as shown on the front panel of
the CU8810 device.
Data Connectors
The CU8810 has three kinds of connectors: USB type B, RJ45 and
DVI. The pin layouts are described below.
USB type B Port (X20) (standard cable)
USB type B Port Pin Assignment
1 VCC
2 Data
-
3 Data +
4 GND
Shield Shield
RJ 45 Port (X30, X31, X32, X33) (standard CAT5 cable)
RJ 45 Port
Pin Signal Assignment
1 15 V 15 V +
2 GND Ground
3 TX
USB TX
4 RX USB RX
5 RX USB RX
6 TX USB TX
7 15 V 15 V +
8 GND Ground
DVI-IN (X40, X41) (standard DVI cable)
DVI-IN
Pin Assignment Pin Assignment
1 TMDS Data 2 - 13 Not connected
2 TMDS Data 2 + 14 + 5 V Power
3 TMDS Data 2/4 Shield 15 Ground ( + 5 V, Analog H/V
Sync)
4 Not connected 16 Hot Plug Detect
5 Not connected 17 TMDS Data 0 -
6 DDC Clock 18 TMDS Data 0 +
7 DDC Data 19 TMDS Data 0/5 Shield
8 Analog Vertical Sync 20 Not connected
9 TMDS Data 1 - 21 Not connected
10 TMDS Data 1+ 22 TMDS Clock Shield
11 TMDS Data 1/3 Shield 23 TMDS Clock +
12 Not connected 24 TMDS Clock -
