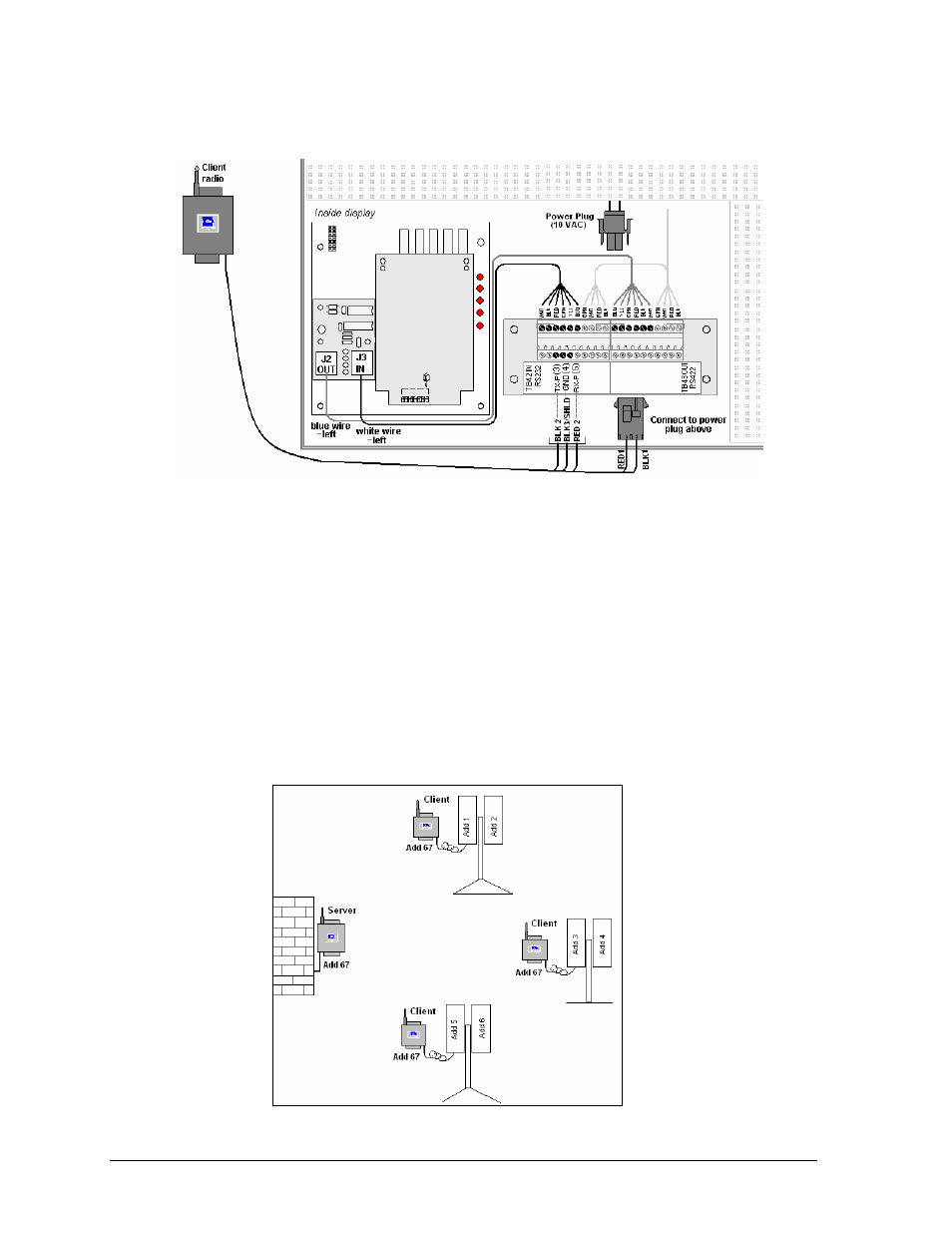

Figure 14: Connection for G-1000, AF-3010, X-1000 Displays
2.5 Multi-Client Radio Installations
If additional client radio(s) are to be added after a set of radios was previously installed,
please note the following conditions:
• Each client radio must be in direct line-of-site with the server radio.
• Each client radio must have the J2 jumper in the closed position.
• All radios must be set to the same address.
• All displays, even those back-to-back, must have their own unique address.
• The signal strength on the server will not be available in multiple-client-mode
because the strength will be different for each client radio.
Figure 15: Multi-Client Site Layout
Installation Guidelines 16
