Load cell connector wiring diagram – Digi-Star SW3300 User Manual

Page 24

Advertising
background image

23



Description

+ EX

- SIG

+ SIG

- EX

DRAIN

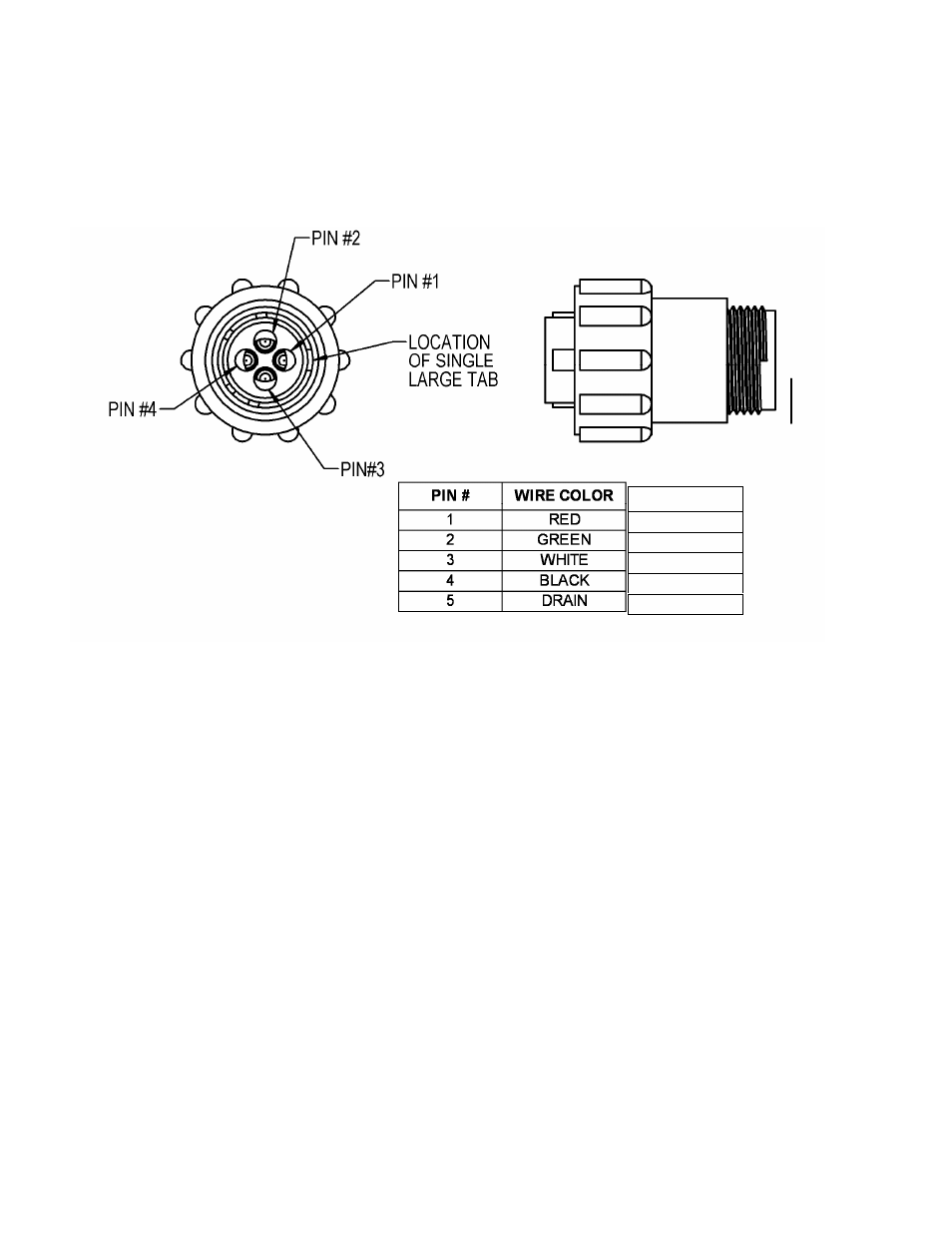

Load Cell Connector

Wiring Diagram
