pARTS LIST, kIT# 76466-00
WHEELED VACUUM LINER kIT, pN 76466-00
pART NO.
DESCRIpTION
QTY
15239
BOLT, 1/4 X 1’ CRG
4
15355
NUT, 1/4 NYLOCK
4
76464-12
LINER, VAC HOUSING
1
.75”
1.6”
1.5”
1.25”
.70”
4.5”

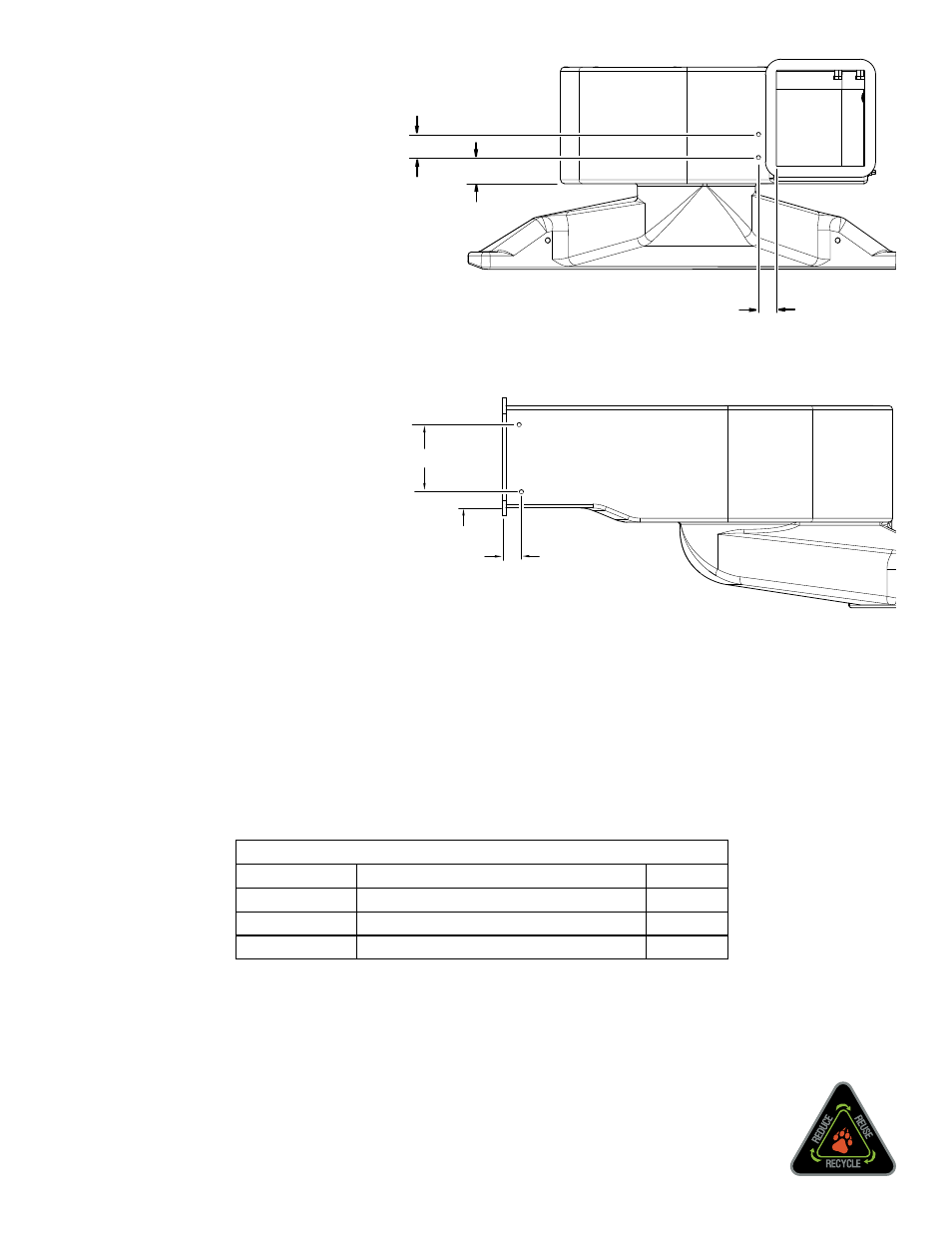

Holes must be drilled for the bolts that
5.
will secure the liner. For a guide, use the
dimensions shown here and the existing
holes in the liner.
Drill two 1/4" holes in the fan housing where
6.
the liner ended as shown here.
Put two bolts through the holes from the
7.
inside of the housing and secure with the
nylock nuts on the outside.
Make sure the liner lies flat against the
8.
vacuum housing and that it doesn't interfere
with fan rotation.
Drill two more 1/4" holes in the fan housing
9.
near the exhaust door as shown here.
Put the other two bolts through the holes
10.
from the inside of the exhaust opening and
secure with the nylock nuts on the outside.
