Interfaces

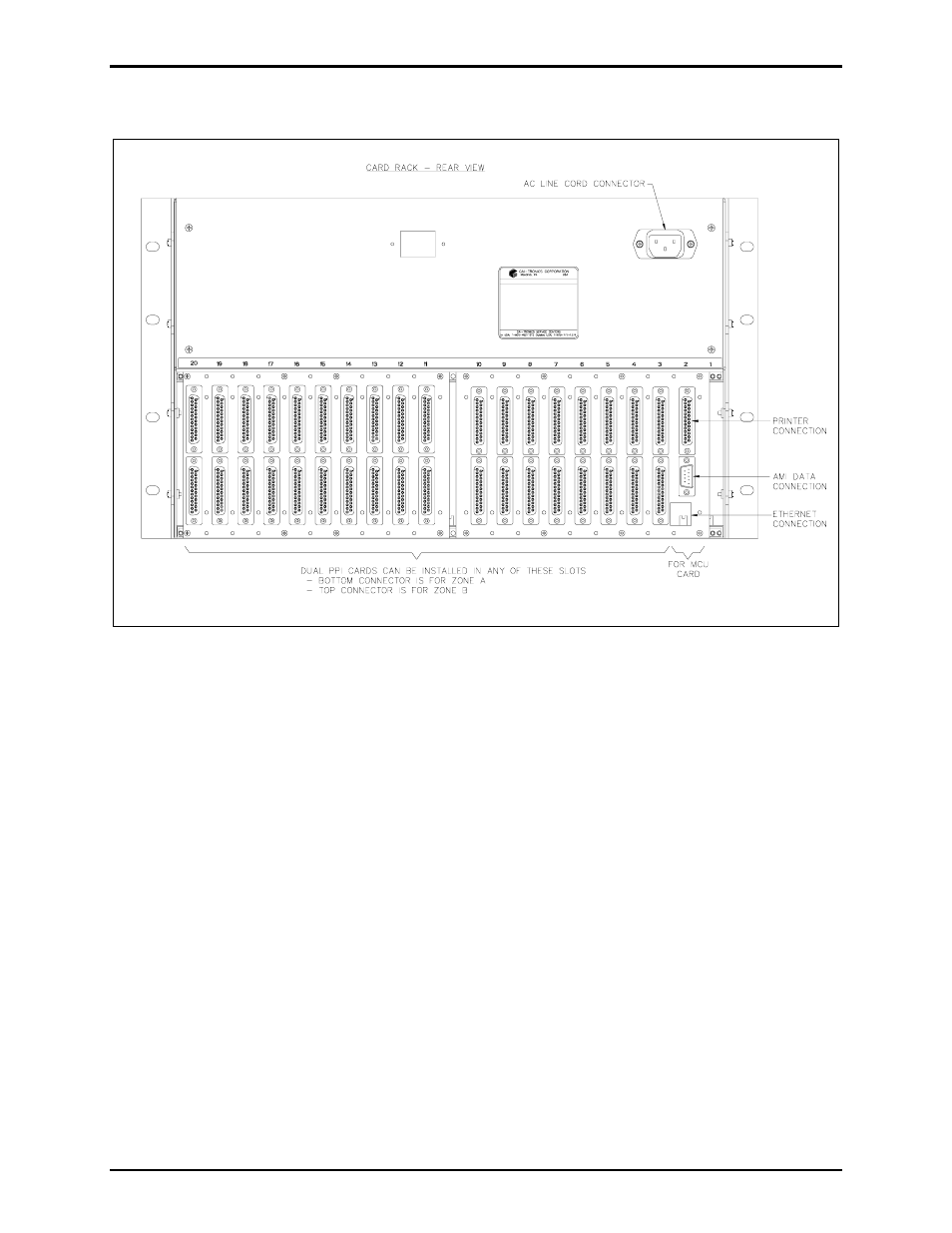

Figure 2. 69609-001 Interfaces
All field device interfaces are provided through P2 on the 69609-001 Dual PPI PCBA and include the
following connections for each of the two available Page/Party
®
zones:
• Page line
• Party line 1
• Party line 2
• Contact closure input
• External relay control output
N
OTE
: Field connections for Zone A are provided at the card rack’s lower D-subminiature connector,
while field connections for Zone B are provided at the card rack’s upper D-subminiature connector.
