Pub. 42003-236C

M

ODEL

12562-109

V

OICE

A

NNUNCIATION

PCBA

F

IELD

I

NSTALLATION

K

IT

Page

2 of 2

f:\standard ioms - current release\42003 kit manuals\42003-236c.doc
02/13

Installing the Voice Annunciation PCBA

1. Insert the three nylon standoffs on the existing Main PCBA in the locations shown in Figure 1.

2. Align the plugs on the Voice Annunciation PCBA standoffs with the Main PCBA as shown in Figure

1 and snap in standoffs.

3. Install the two AA lithium batteries in the correct +/− orientation.

4. Reconnect the telephone line.

5. Refer to Pub. 42004-438, RED ALERT

®

Installation Manual (“Voice Annunciation Option” section)

for set-up and playback instructions.

6. Use the Model 233-001 Security Screwdriver (Torx T-25 security tip) to re-install the four (or six,

depending on the telephone model) front cover security screws (10–12 in-lbs. of torque
recommended).

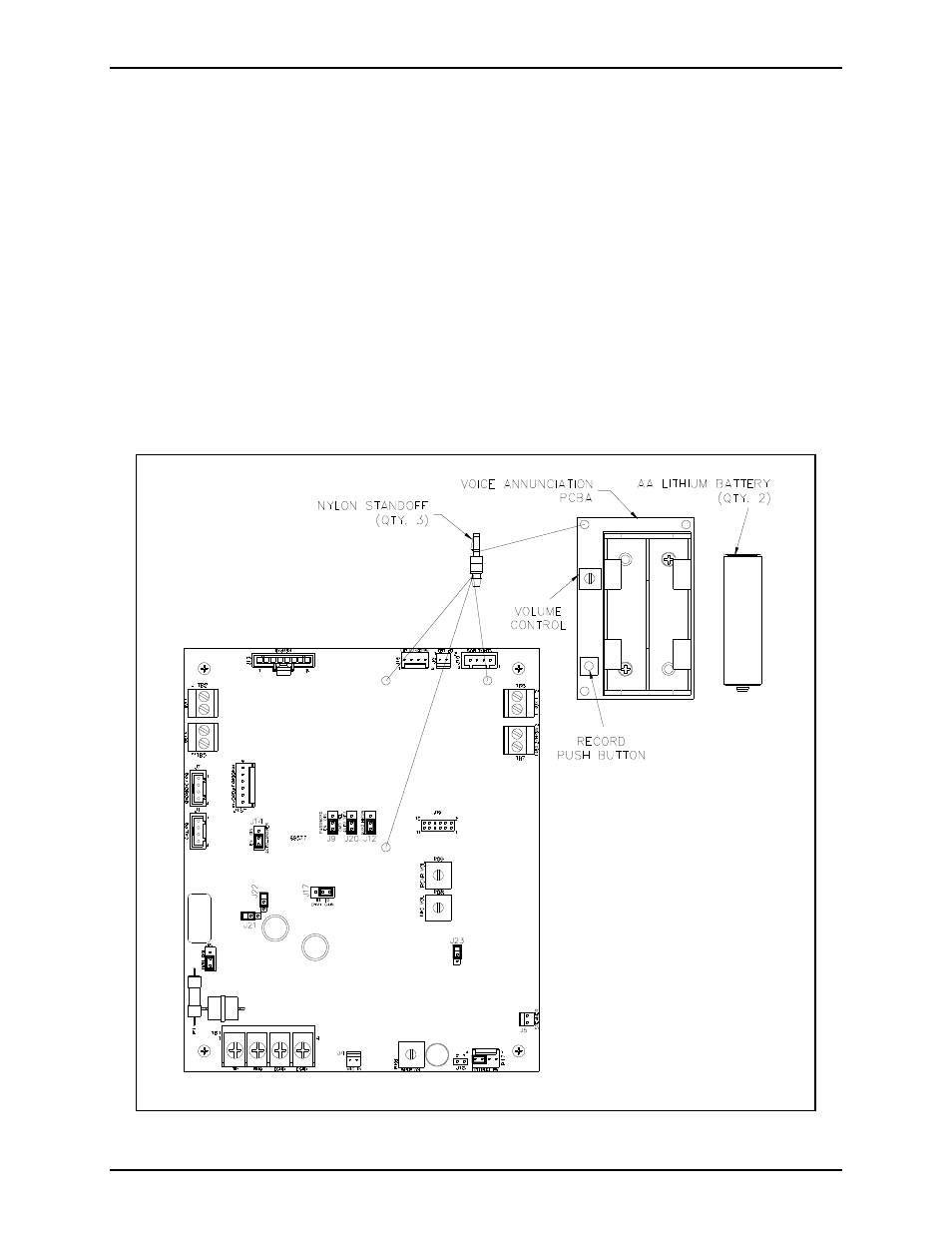

Figure 1. Installation of 12562-109 Voice Annunciation PCBA to Existing PBCA
