MDE-4485 Gasboy Pulser Kits X:1 EQ 25 XXX Installation • June 2005

Page 7

Installing the X:1 EQ 25 XXX Pulser Kit

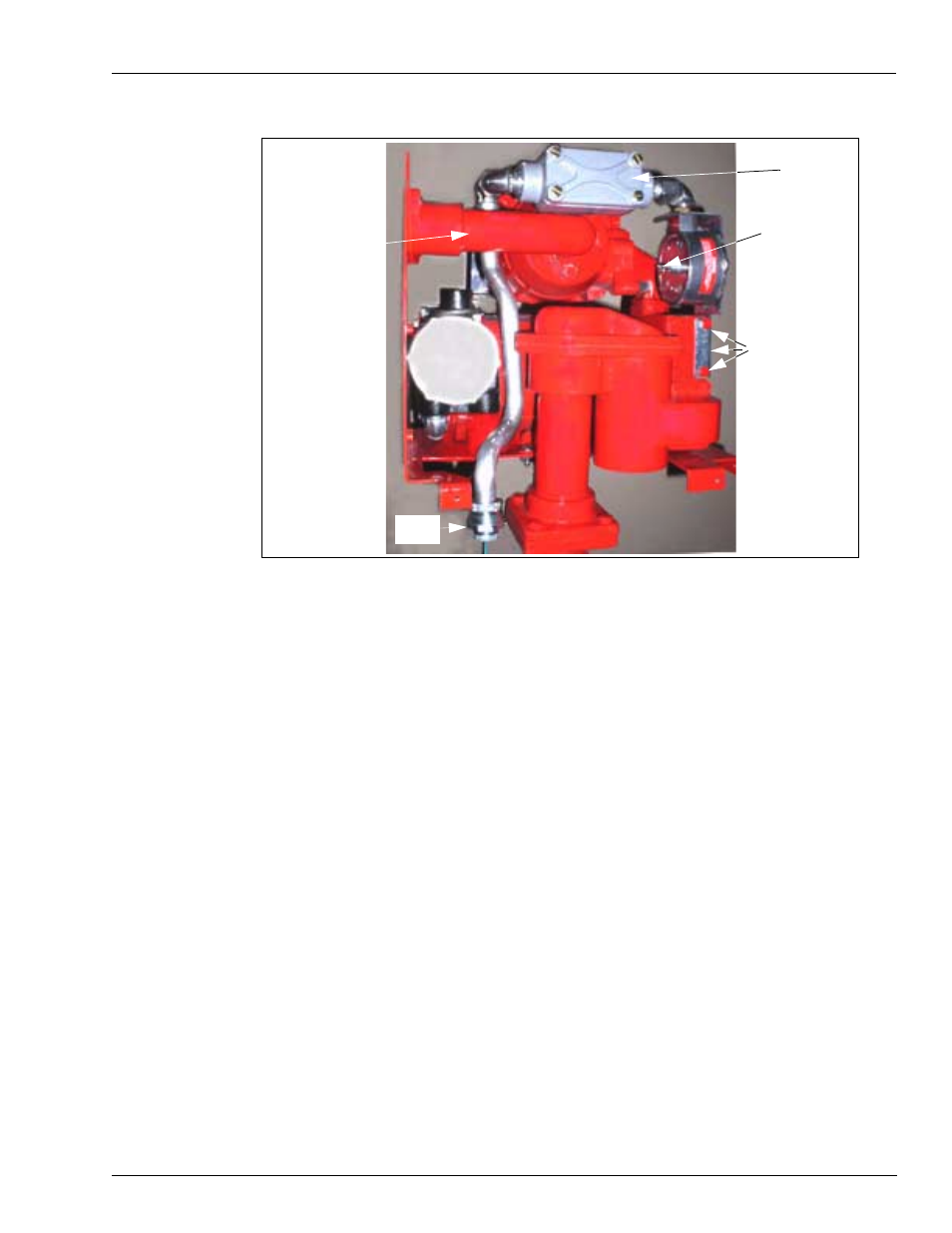

Figure 2: Placement of M06028A001 Pulser Module (Back View)

10

Using a flat-tip screwdriver, remove the conduit junction box cover (

Figure 2

).

11

Feed the field pulser wires up through the pulser module conduit and into the conduit junction
box.

Note: The field pulser wires extending up are field-installed wires.

12

Connect the wires from the pulser (already in the junction box) to the wires just fed in (in Step
11). If possible, connect matching colors for easier future servicing. Secure with wire nuts.

13

Remount the junction box cover and secure with screws.

14

Connect the pulser module conduit to the existing conduit and secure with the union fitting.

Testing/Checking Operation

1

Restore power to the unit.

2

Connect a voltmeter to the signal wires in the control system.

3

Set the voltmeter to read Ohms.

4

Slowly dispense fuel and observe that the needle deflects upscale for each 1/10 gallon fuel.

Pulser Mounting
Bracket and Bolts

Union
Fitting

Conduit
Junction
Box

Placement of
cable tie (around
pipe and cable -
after installation)

Pulser Shaft
