J10: digital 4-in 4-out i/o connector, J11: mini pci socket, J12: for right speaker – IBASE MB500 User Manual
Page 23: J13: wake on lan connector, J14: for left speaker, J15: usb connector (usb2/usb3)
Advertising
INSTALLATIONS

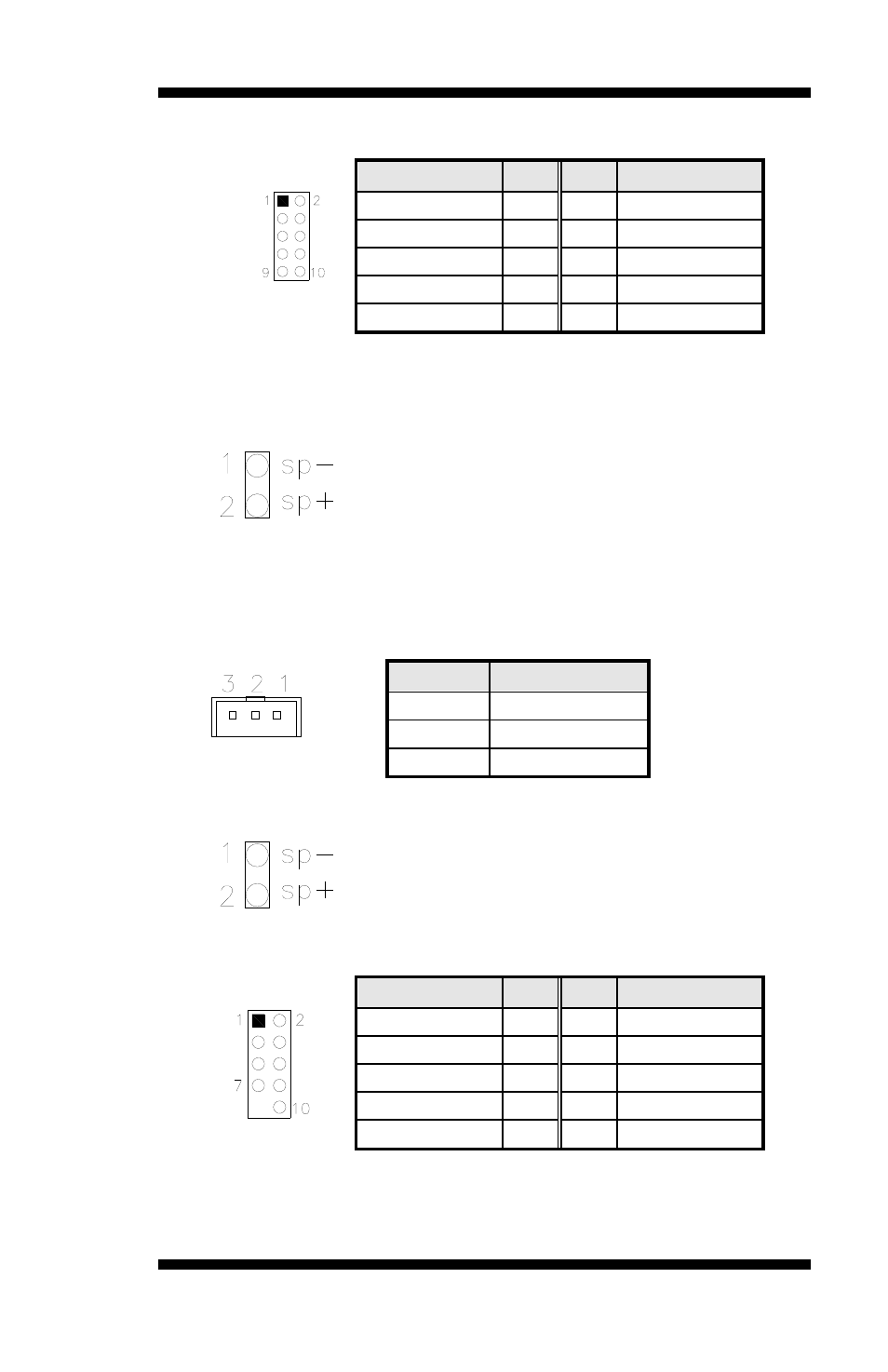

J10: Digital 4-in 4-out I/O Connector
MB500 User’s Manual
19
Signal Name
Pin Pin
Signal Name
Ground 1
2 Vcc
Out3 3
4 Out1
Out2 5
6 Out0
IN3 7
8 IN1
IN2 9
10
IN0
J11: Mini PCI Socket
J12: For Right Speaker
J13: Wake On LAN Connector
J13 is a 3-pin header for the Wake On LAN function. Wake On LAN
will function properly only with an ATX power supply with 5VSB that
has 200mA.
Pin #
Signal Name
1 +5VSB
2 Ground
3 Wakeup
J14: For Left Speaker
J15: USB Connector (USB2/USB3)
Signal Name
Pin Pin
Signal Name
Vcc 1
2 Vcc
D2- 3
4 D3-
D2+ 5
6 D3+
Ground 7
8 Ground
9
10
NC
