IB908F User’s Manual

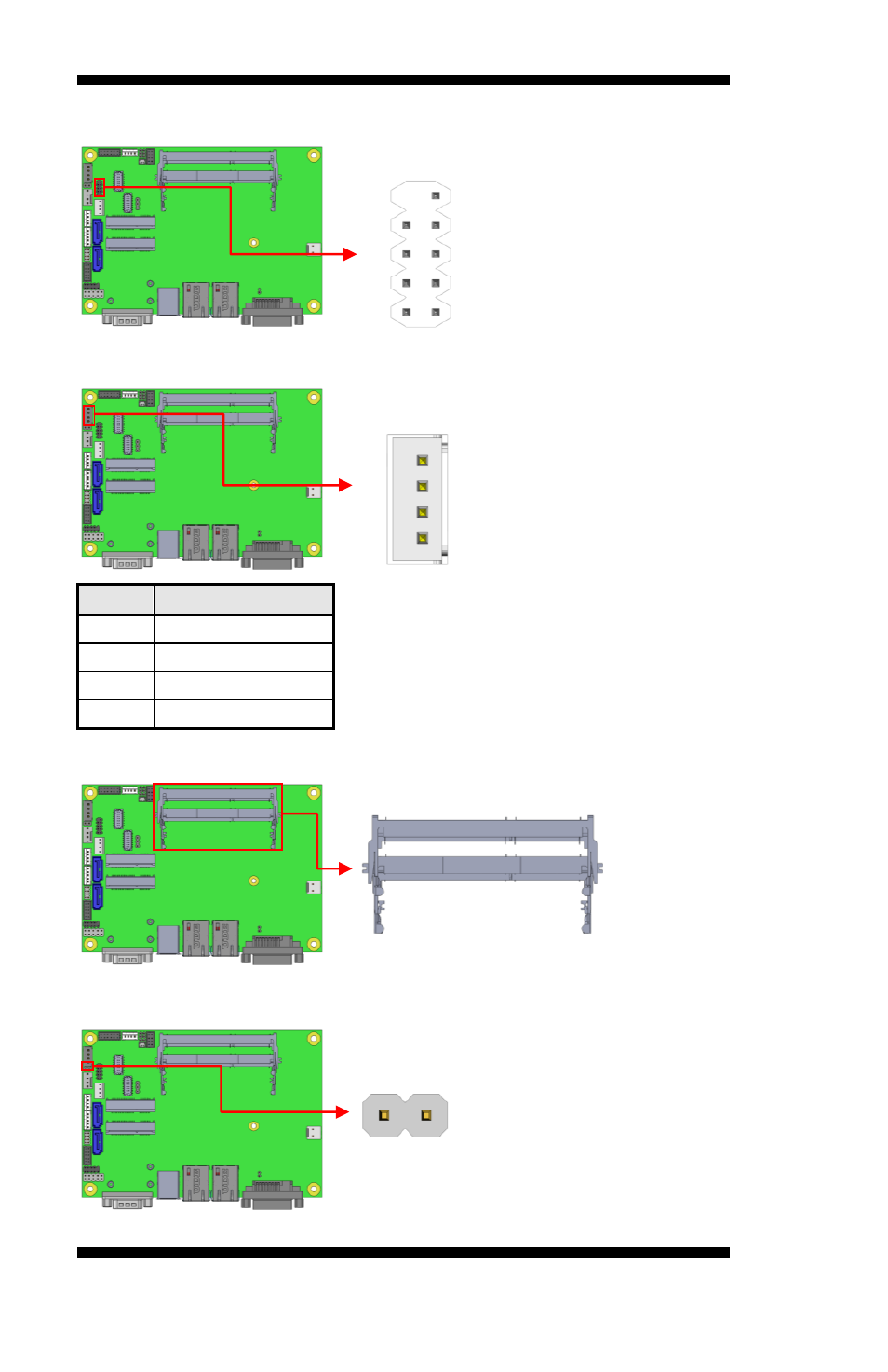

JP4: SPI Flash Connector (factory use only)
J5: Amplifier Connector
Pin #
Signal Name
1
OUTL+
2
OUTL-
3
OUTR-
4
OUTR+
J6, J8: DDR3L SO-DIMM Sockets
J7: Factory use only
9 10
1 2
1 4
