Chapter 8
Installing 2.5” SSD

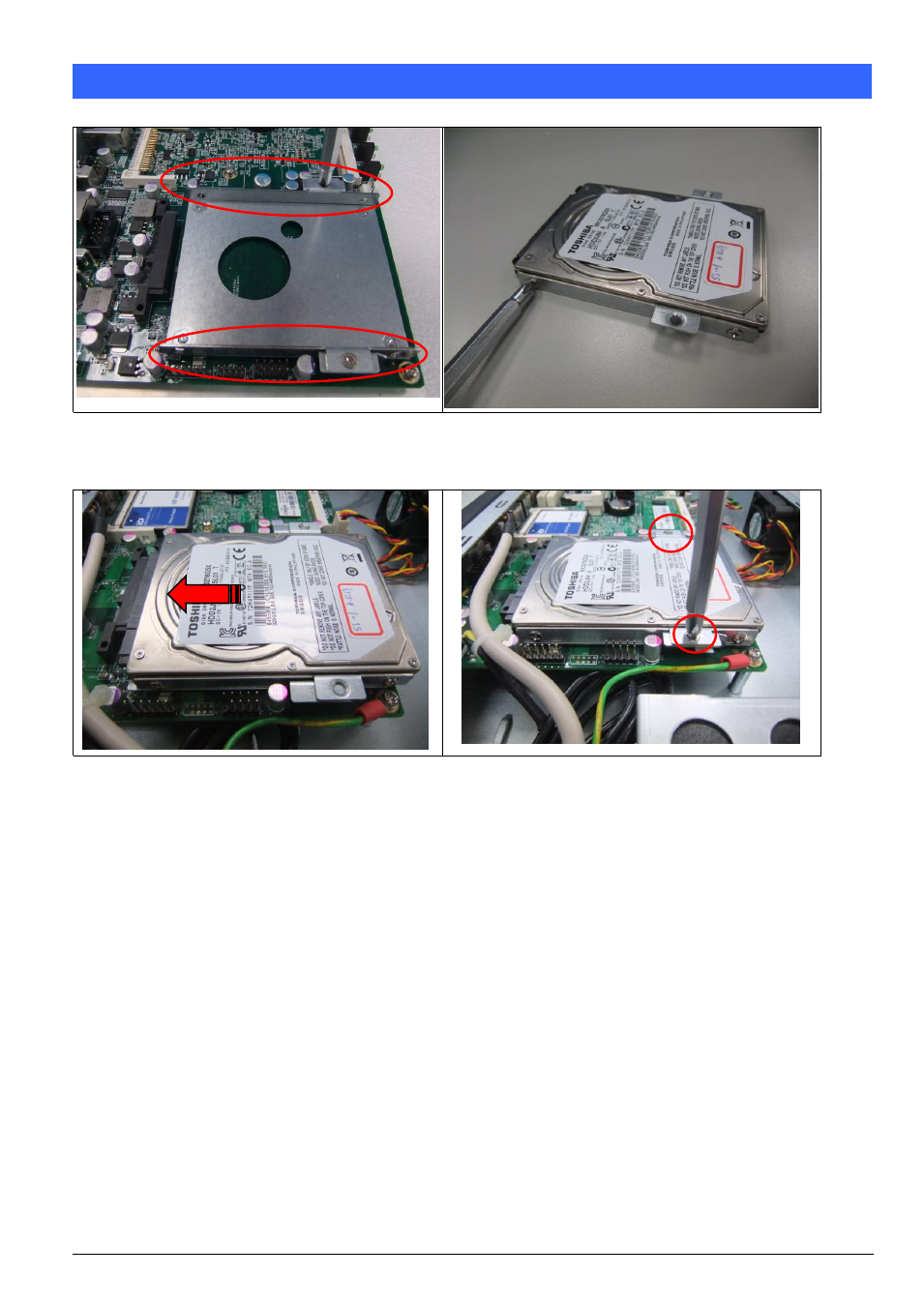

Fig. 8-1 Loosen two screws to remove left &
right side brackets
Fig. 8-2 Fasten brackets on SSD with four
screws
Fig. 8-3 Fasten both brackets on SSD with four
Fig. 8-4 Fix SSD & brackets with two screws
SATA Connector
