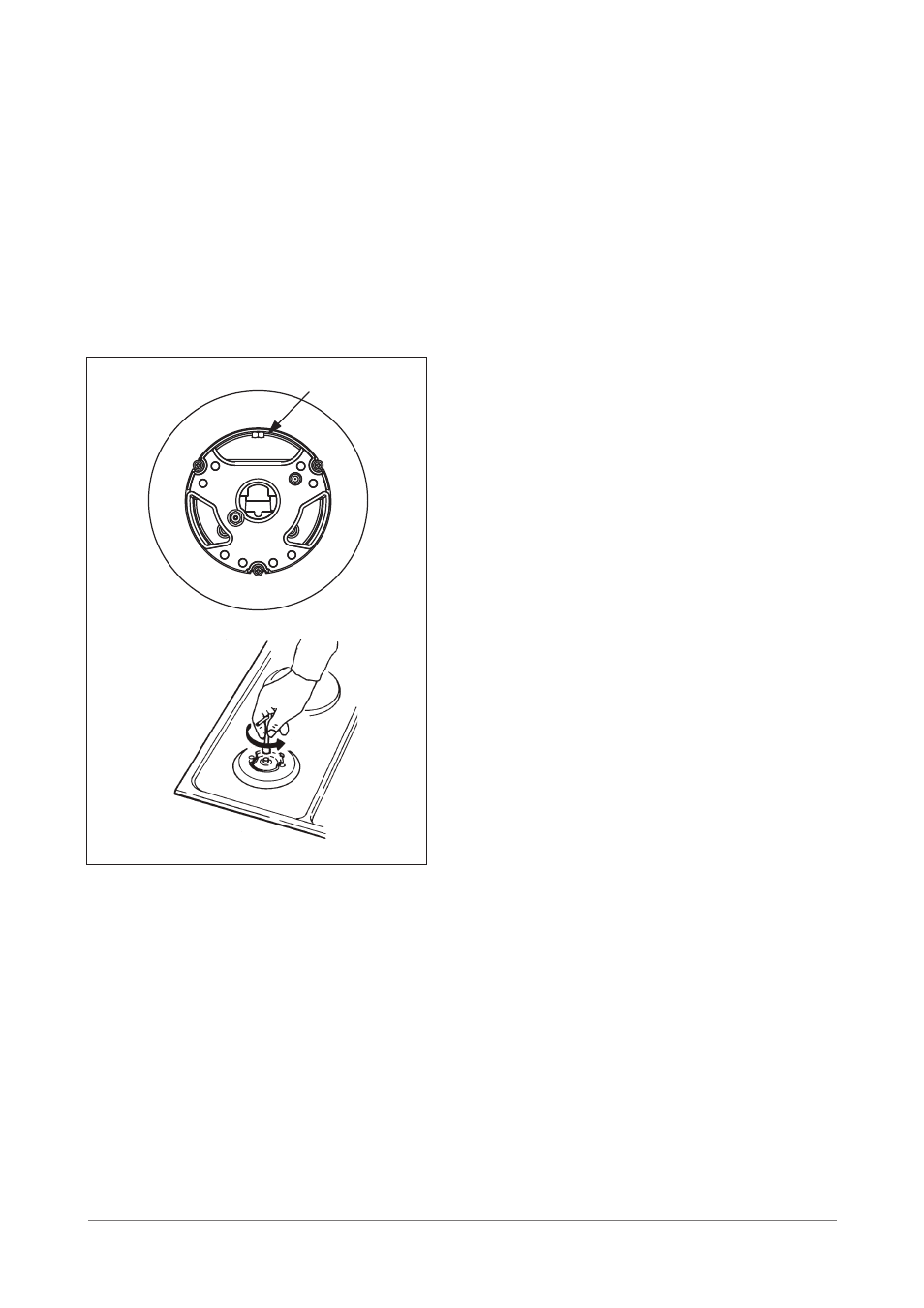

Adaptation to varius types of gas (Fig.12)
Wok only
Fig. 12
Procedure for adjusting the minimum burner flow
The procedure for setting minimums allows the operator to
change minimum flow setting, adapting each burner to the
characteristics of the gas distribution system to which the
cook top is hooked-up.
The procedure is activated by holding down the + and -
keys of burner A together with the + and - keys of burner D
for 3 seconds, with all the burners off for a 4-burner model
while, for a 5-burner model, hold down the + and - keys of
burner A together with the + and - keys of burner E.
The display indicates the activation of the procedure with
“MIN”. At this point, you can select the burner to adjust by
pressing the P+ and P- keys. After confirming with the PT
key, the selected burner will light at the minimum and you
will be able to increase or decrease the minimum flow by
pressing the + and - keys for that burner. During regulation,
the flame level display will show -, if the minimum set is the
factory setting, and will display a flashing ^ or v to indicate,
respectively, a higher or lower flow than the factory setting.
To confirm the minimum flow desired, you must press the
PT key. “MIN” will remain displayed and no LEDs will flash,
so, at this point, you can press PT to exit the procedure
or press the P+ or P- keys to select another burner and
set the minimum flow. The minimum flow levels are then
acquired and stored by the device and will be used during
normal use of the cook top.
Selecting the type of fuel gas
You can configure the cook top to work with different
gases (see table 1). To select the fuel gas to use, the
cook top must be on with all the burners off. Just press
the burner A, burner B and P- keys together for at least 2
seconds. When the fuel gas selection procedure starts,
the burner level display turns off and the timer display
shows “2020”, “3029”, “2525” or “2010”, depending on
the current configuration in use. It is possible to select
the desired setting with the P+ and P- keys. To end the
procedure, you must press the PT key.
Using this function deletes any turn-off times that may
have been programmed for the burners.
Electronic self-test
The electronic cards are continuously checking their
status. If there are any hardware or board problems that
could affect the end-user's safety, the cook top goes
into a “safe” mode which closes the solenoid valves and
displays a code relative to failure.
Warnings for correct functioning of the flame detection
circuit built-in to the appliance.
This device can be used in neutral phase 230V electric
circuits, with neutral connected to earth.
The device must be adapted if used with electric circuits
of different types.
Should the appliance be pre-set for a different type of
gas than available, procreed as follows:
• replace the injector (Fig. ?) with the corresponding type
of gas to be used (see table “User characteristics“);
