BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT –

Save these

instructions for local inspector’s use.

IMPORTANT –

Observe all

governing codes and ordinances.

Note to Installer –

Be sure to leave these

instructions with the Consumer.

Note to Consumer –

Keep these instructions

for future reference.

• Skill level – Installation of this appliance requires

basic mechanical skills.

• Completion time – Refrigerator Installation

15 minutes

Proper installation is the responsibility of the

installer.

Product failure due to improper installation is not

covered under the Warranty.

• Do not install the refrigerator where the temperature

will go below 16°C because it will not run often enough
to maintain proper temperatures.

• Install it on a floor strong enough to support it fully

loaded.

REFRIGERATOR LOCATION

Installation

Refrigerator

Instructions

Models 20, 22, 25

Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.

• Sides

4 mm

• Top

25 mm

• Back

25 mm

A side clearance of 19 mm is needed for a 90° door
opening which provides better access to the food
storage area.

CLEARANCES

If the refrigerator has an icemaker, it will have to be
connected to a cold drinking water line. An approved
water supply kit is available at extra cost from your
local distributor.

Maximum permissible inlet water pressure—8.3 bars.
Minimum permissible inlet water pressure—1.4 bars.

Installation of the icemaker must be done by a
qualified service technician.

WATER SUPPLY TO THE ICEMAKER

(on some models

)

*Height does not include hinge.
**Depth includes handle.

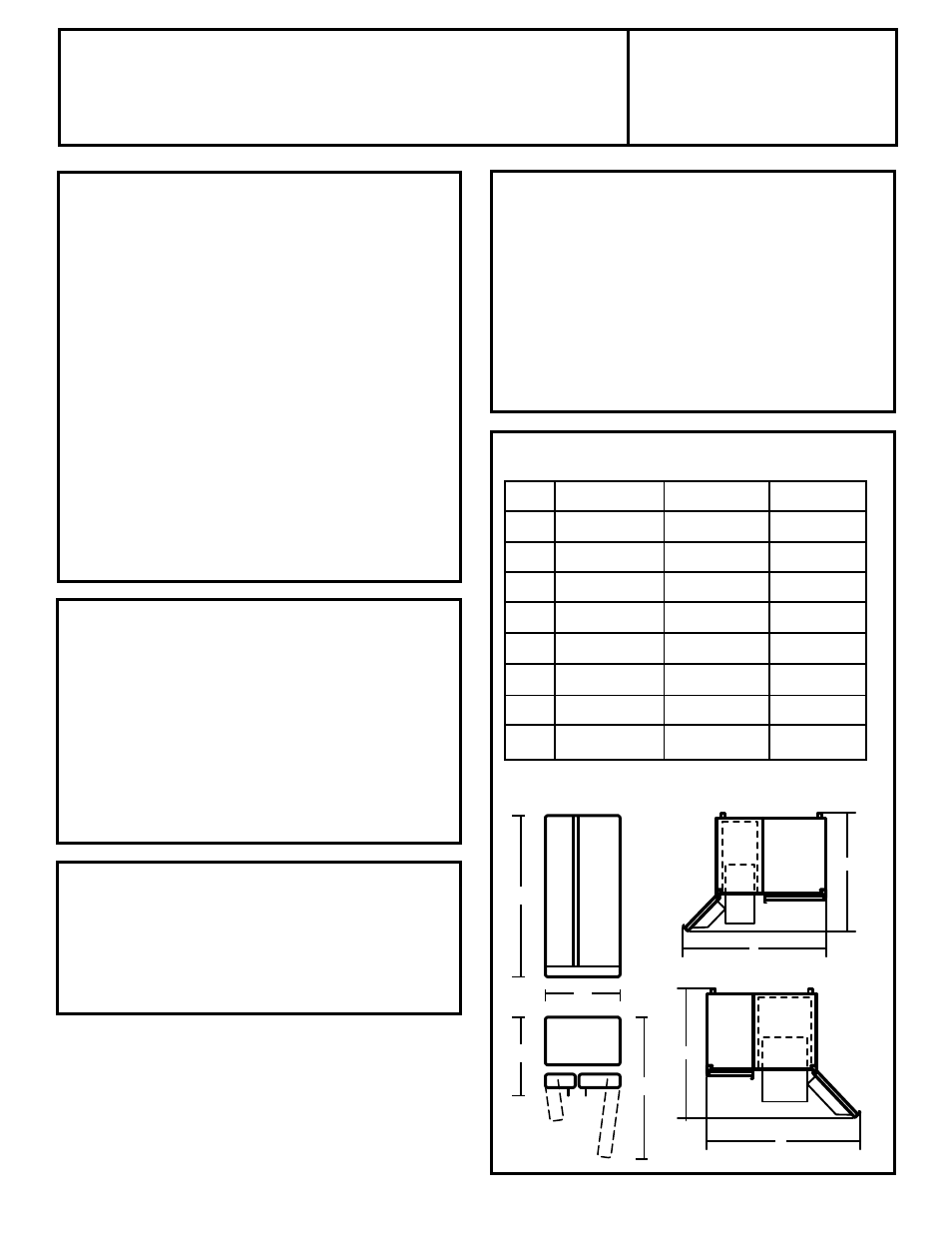

DIMENSIONS

A

B

C

D

F

E

H

G
