INSTALLATION AND OPERATING INSTRUCTIONS
Page 2 of 8
LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
website: www.louroe.com e-mail: [email protected]
(818) ®
DESCRIPTION AND FUNCTION OF PARTS
[1] - Play/Mute Switch Used when playing back audio from a recorder or mute the audio
from the microphone. No audio is heard on the Speaker[7] when
this switch is ON.
[2] - Zone Selector Switches Select zone for monitoring. Press switch of desired zone to listen
to live audio. Pressing more than one zone is possible when it is
necessary to monitor more than one zone at a time, but audio
may be difficult to understand if there is audio activity at several
zones. Zone switches light blue when press indicating active
zone.
[3] - Headset Jack Used for private listening. Any stereo headset with 8 to 600 ?
impedance maybe used. Mutes speaker output when use.
[4] - Power Indicator Lights (green) when power is turned ON.
[5] - Power-Volume Knob Rotating knob clockwise turns ON power to the unit as indicated
by the Power Indicator[4] light. Rotating further clockwise
increases the volume of the monitored audio as heard through
the Monitor Speaker[7].

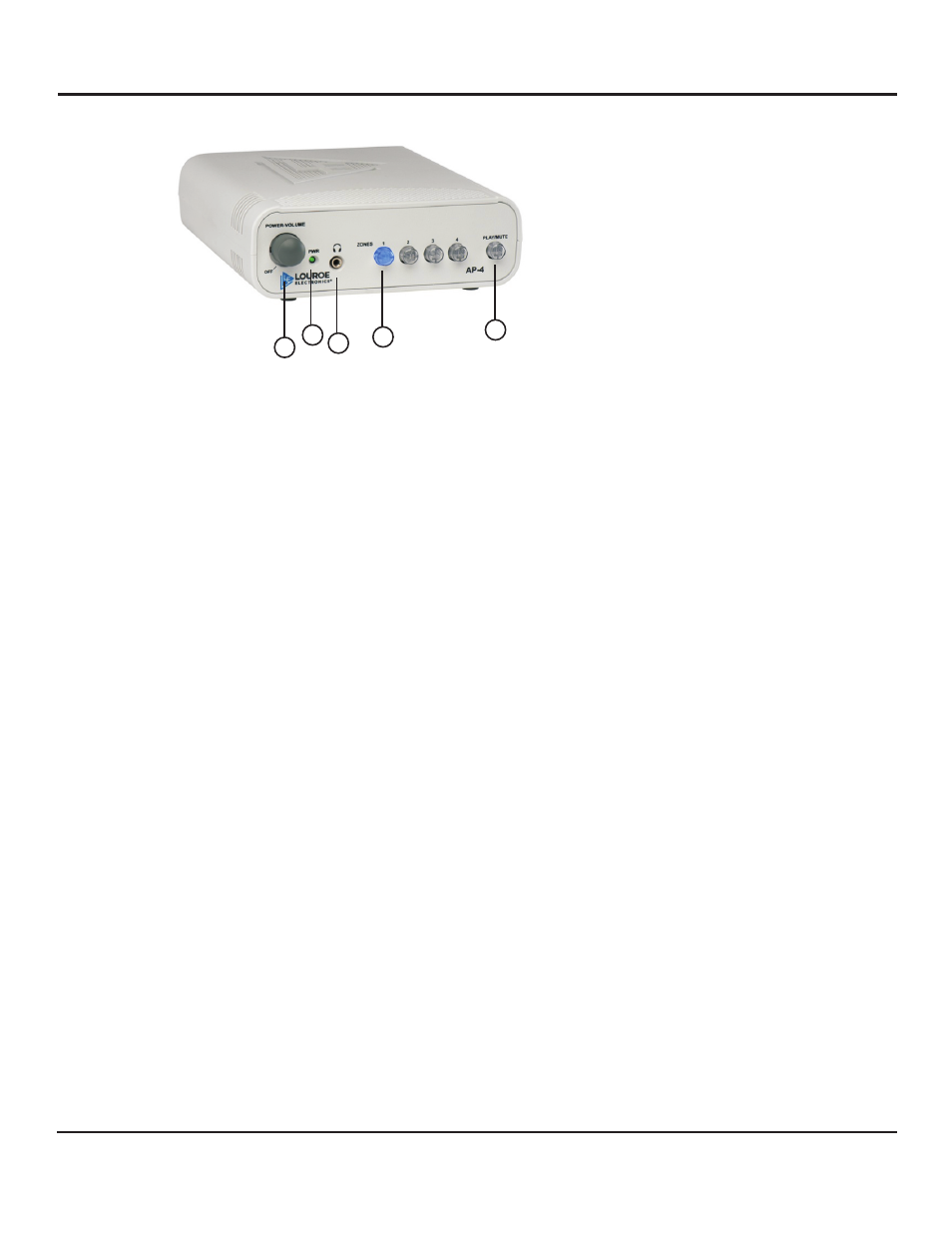

Fig. 1 Front of AP-4
Fig.1 Front view of AP-4
AP-2 and AP-8 have the
same features except
for the number of Zones
5
4
3
2
1
