6. ELECTRONICS AND INTERFACING
This short, simple introduction to the electronics most often needed by I/O board users covers a few key
concepts.
6.1 COMMON MODE
Differential inputs have a common mode range (CMR or Vcm). Common mode range is the voltage range
over which differences in the low side of the signal and A/D input ground have no impact on the A/D's
measurement of the signal voltage. A differential input can reject differences between signal ground and
PC ground (Figure 6-1).

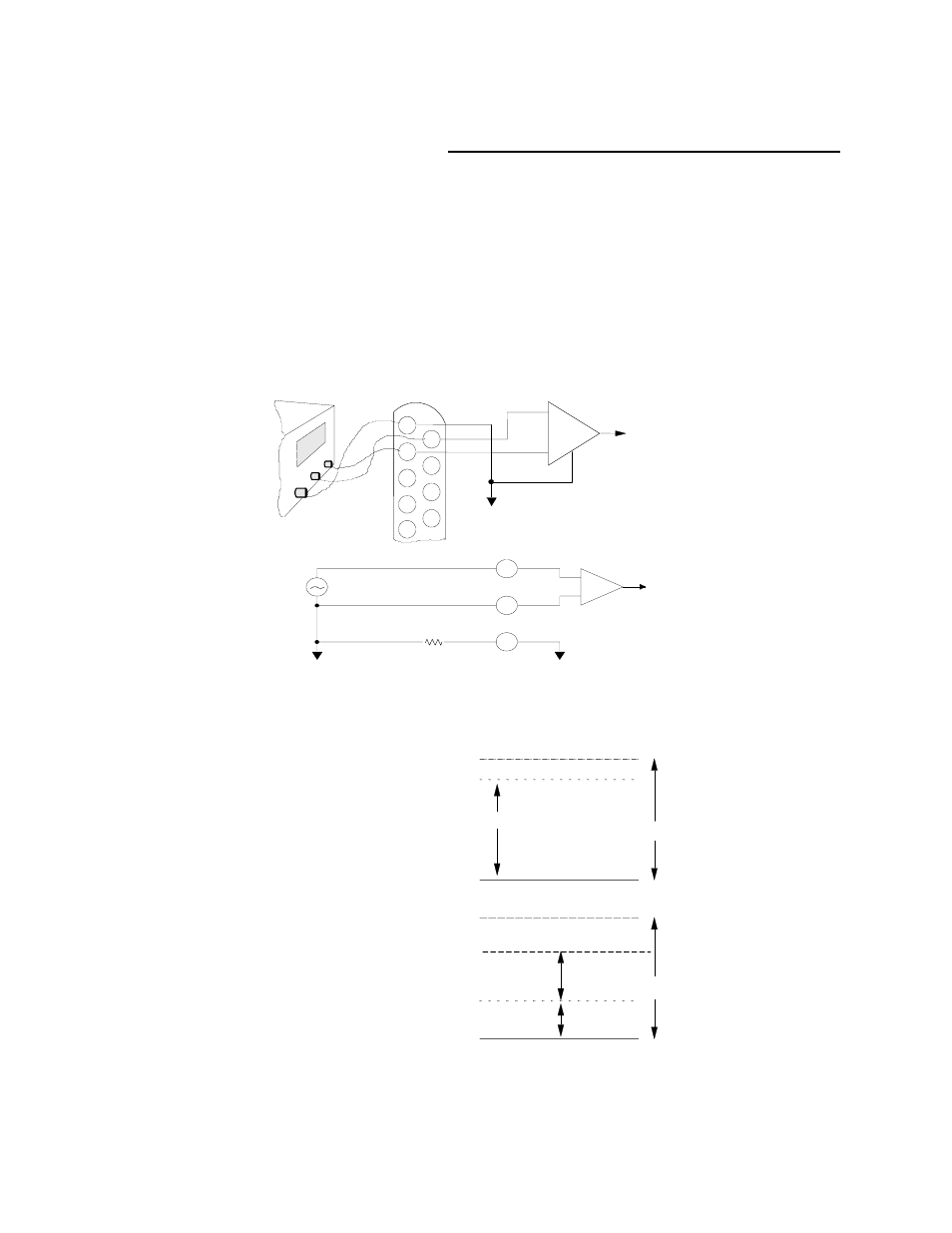

Figure 6-1. Differential Input Theory
The maximum difference which can be rejected is the CMR (Figure 6-2).
Figure 6-2. CMR Defined
