Universal Library Virtual Instruments (VIs)
Memory board VIs
MemRead.VI
Reads data from a memory board into an array.

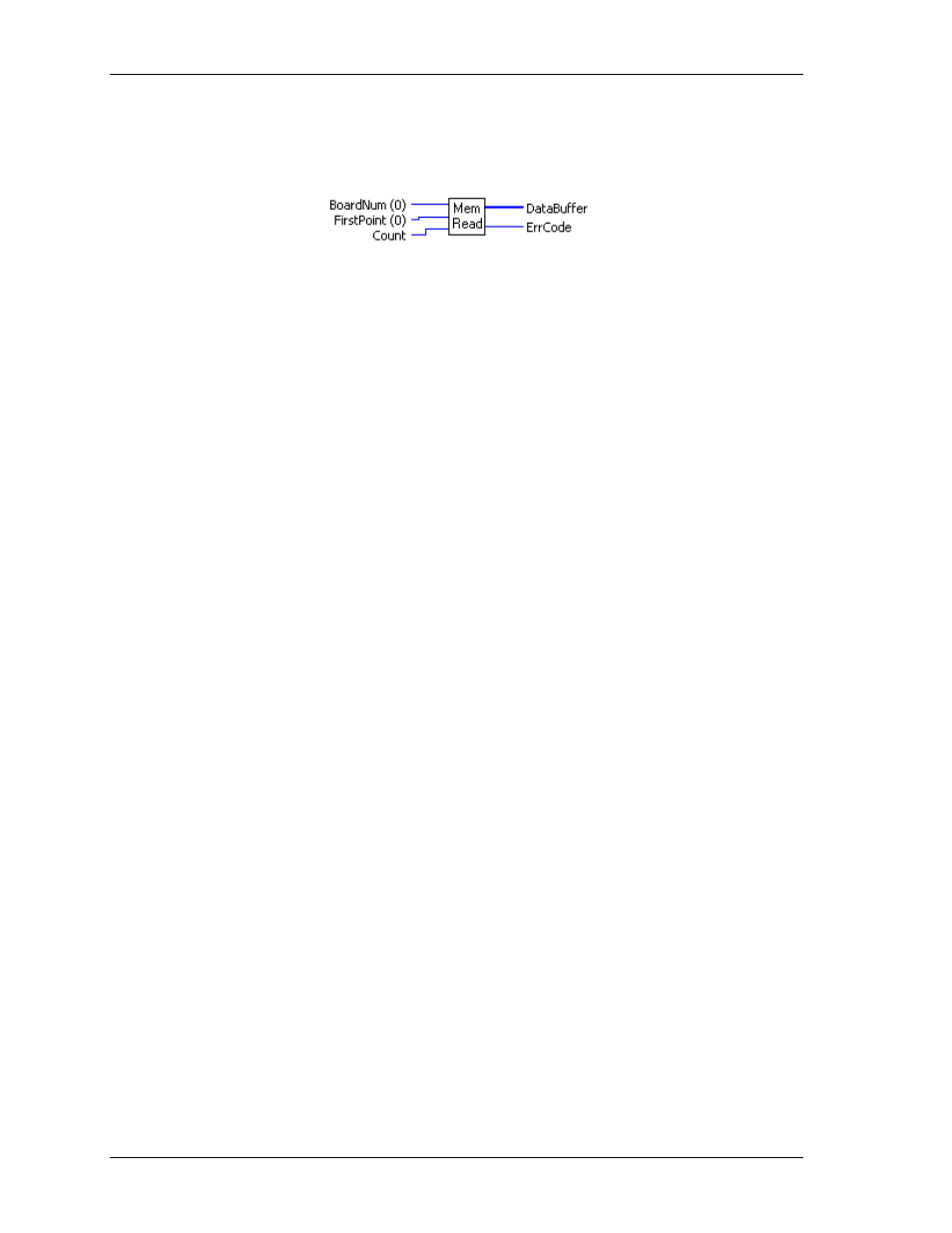

Summary:
Inputs:
BoardNum
[U32] - The board number assigned when installed with InstaCal. Can
be 0 to 100.
FirstPoint
[I32] - Index of first point to read or
FROMHERE
.
Count
[U32] - Number of samples (words) to read
Outputs:
DataBuffer
[U16] - Output data array.
ErrCode
[I32] - Error code. See ErrMsg.VI.
Arguments:
BoardNum
The memory board number associated with a board when it was installed with
InstaCal.
FirstPoint
Use
the
FirstPoint
argument to specify the first point to be read. For example, to
read points #200 - #250, set
FirstPoint
=200 and
Count
=50.
To read a large amount of data from the board in small portions, set
FirstPoint
to
FROMHERE
(-1) to read each successive portion. Using
FROMHERE
(-1) speeds up the
operation of MemRead VI when working with large amounts of data.
Count
Number of samples (words) to read.
DataBuffer
Data read from memory board.
ErrCode
Error code returned from the Universal Library. Zero if no error occurred. Use the
ErrMsg VI to convert
ErrCode
into a readable string.
Notes:
DT-Connect conflicts - The MemRead.VI can not be called while a DT-CONNECT transfer is in progress.
For example, if you start collecting A/D data to the memory board in the background (by calling AInScBg.VI
or AInScFg.VI with the
DTCONNECT
+
BACKGROUND
options). You cannot call MemRead.VI until the
AInScBg.VI or AInScFg.VI has completed. If you do, you will get a
DTACTIVE
error.
