TS Performance 1190101 User Manual
Page 5
Continued
%Change in Speed Dip Switch Values
%Change in Speed Dip Switch Value
30%
11001100
0%
11111111
29%
10101100
-1%
00111111
28%
00011100
-2%
01011111
27%
01011100
-3%
11101111
26%
10111100
-4%
00101111
25%
11111100
-5%
10001111
24%
01000010
-6%
01110111
23%
00100010
-7%
11010111
22%
11100010
-8%
00010111
21%
10010010
-9%
10100111
20%
00110010
-10%
01000111
19%
11110010
-11%
11111011
18%
10001010
-12%
11011011
17%
00101010
-13%
00011011
16%
01101010
-14%
10101011
15%
10011010
-15%
10001011
14%
11011010
-16%
01110011
13%
01111010
-17%
01010011
12%
00000110
-18%
01100011
11%
11000110
-19%
01000011
10%
01100110
-20%
01111101
9%
00010110
-21%
01011101
8%
01010110
-22%
01101101
7%
11010110
-23%
10001101
6%
00001110
-24%
10110101
5%
01001110
-25%
00010101
4%
10101110
-26%
00100101
3%
00011110
-27%
11111001
2%
01011110
-28%
01011001
1%
00111110
-29%
10101001
0%
11111111
-30%
00001001

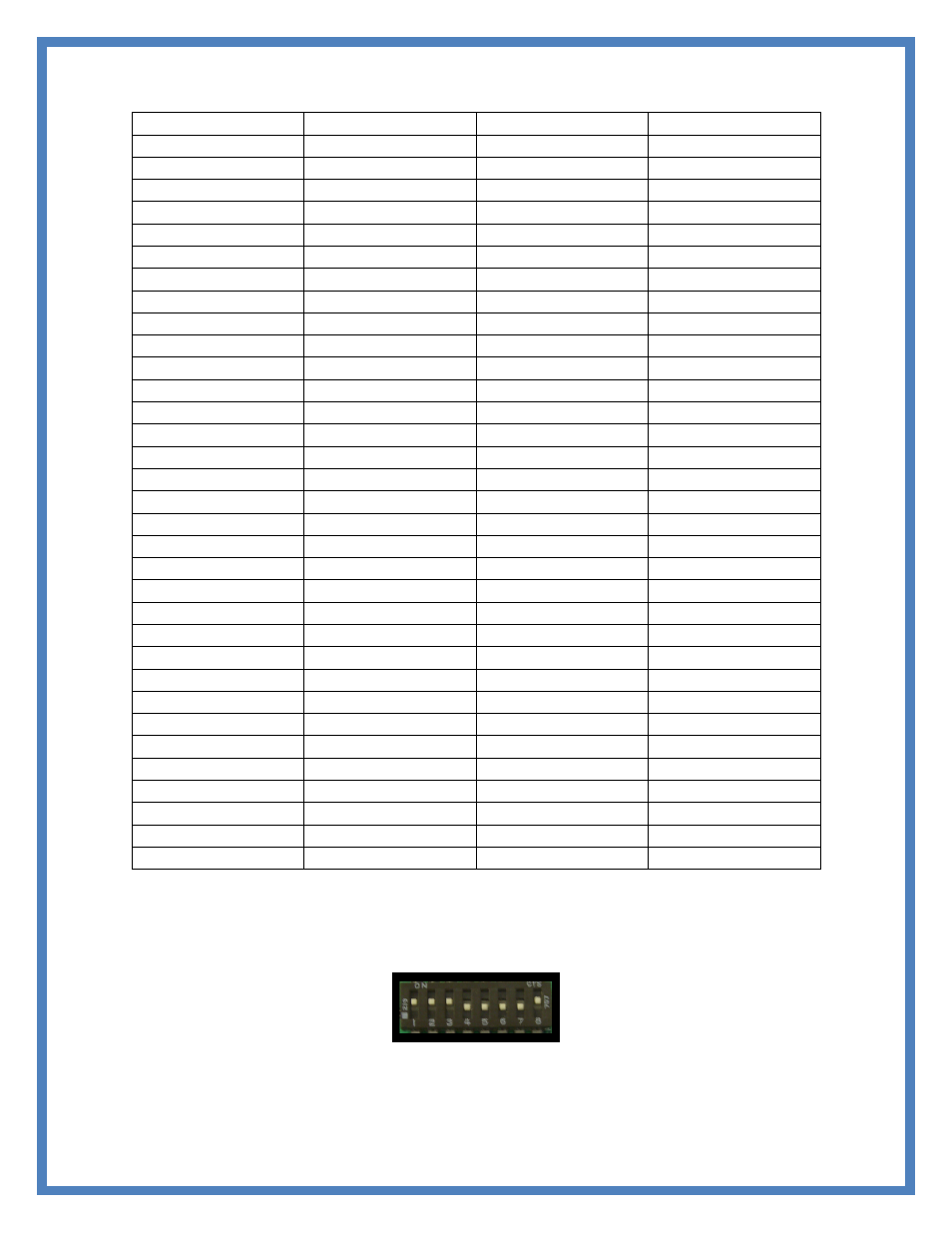

Chart C
***
1 represents dip switch on, 0 represents dip switch off, for example the dip switch
settings in Figure 6 is the equivalent of 11100001.
1 1 1 0 0 0 0 1
Figure 6
